Guide And Slider Replacement Remove

  1. Remove the sunroof assembly (see SUNROOF ASSEMBLY REPLACEMENT ).
  2. Remove the drip rail. (see DRIP RAIL REPLACEMENT ).
  3. Remove the sunshade (see SUNSHADE REPLACEMENT ).

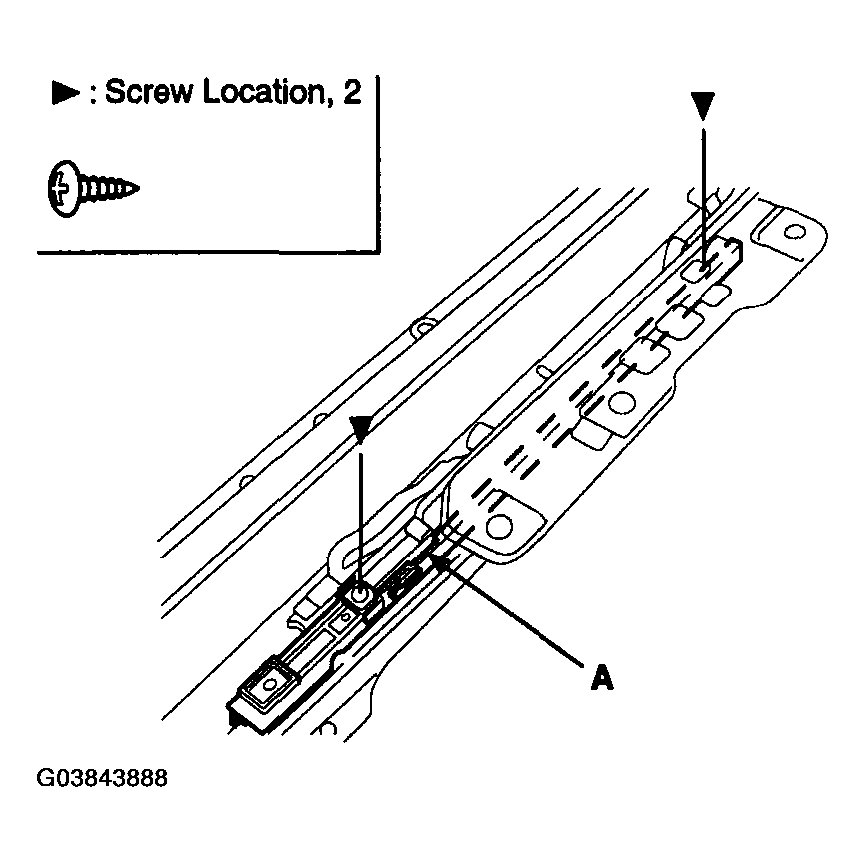

  4. Remove the shutting (A).
    Fig 1: Removing Shutting
    G03843888Courtesy of HYUNDAI MOTOR CO.

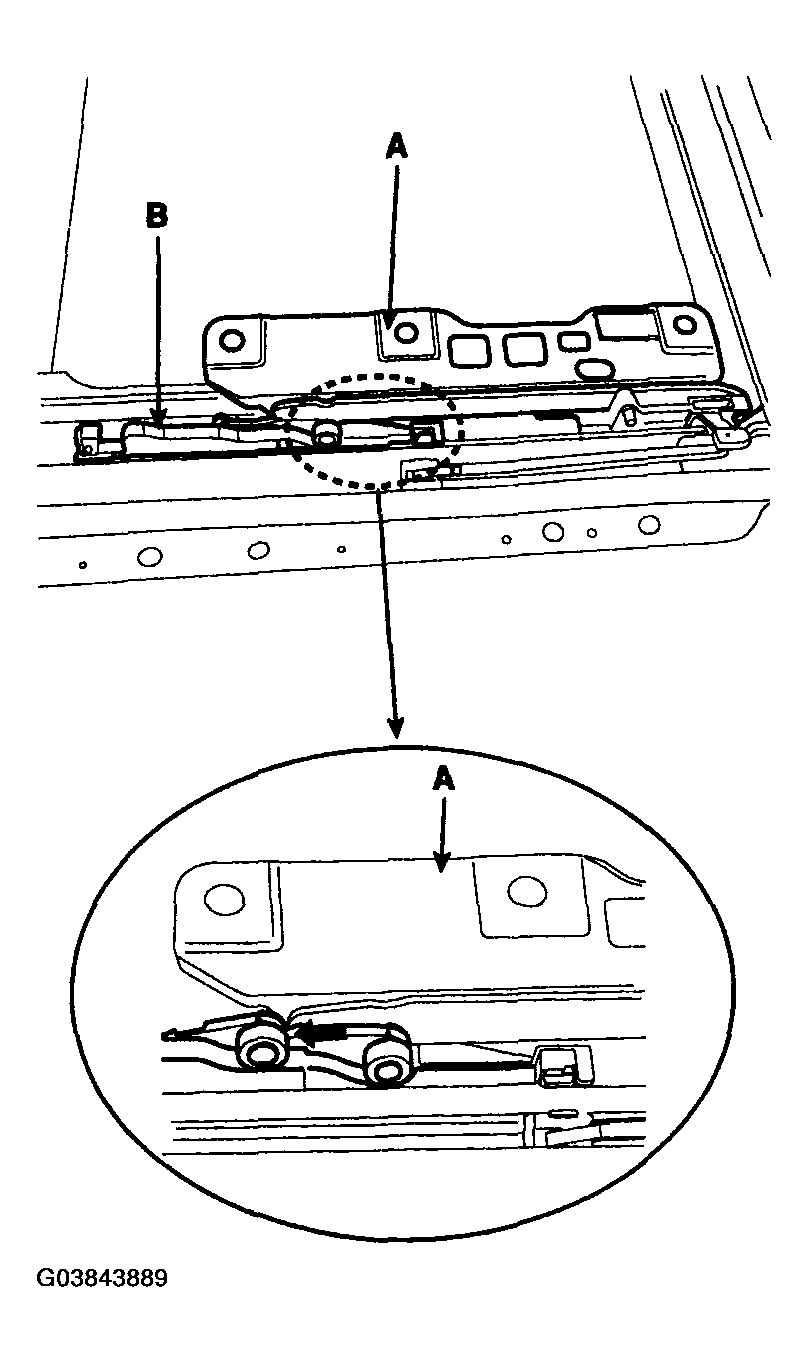

  5. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.
    Fig 2: Removing Guide Assembly
    G03843889Courtesy of HYUNDAI MOTOR CO.
