Guide And Slider Replacement Install

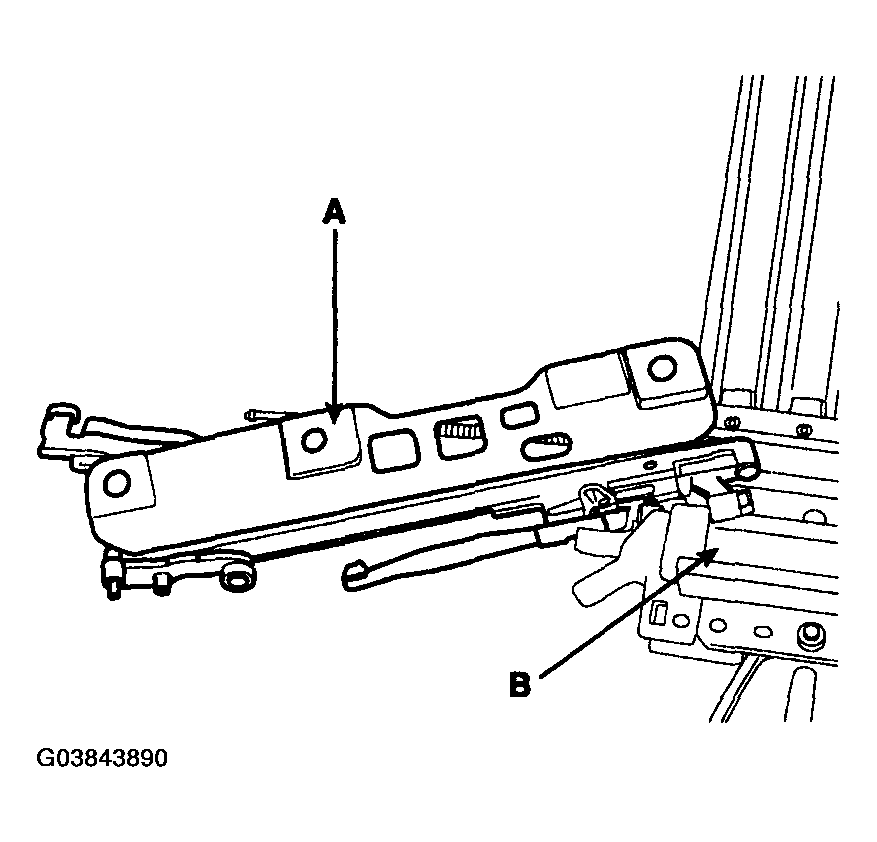

Turning a front guide assembly (A) part outward a little, insert it to rail (B).

Fig 1: Turning Front Guide Assembly
Courtesy of HYUNDAI MOTOR CO.
Connect the slide (B) to the drive cable.

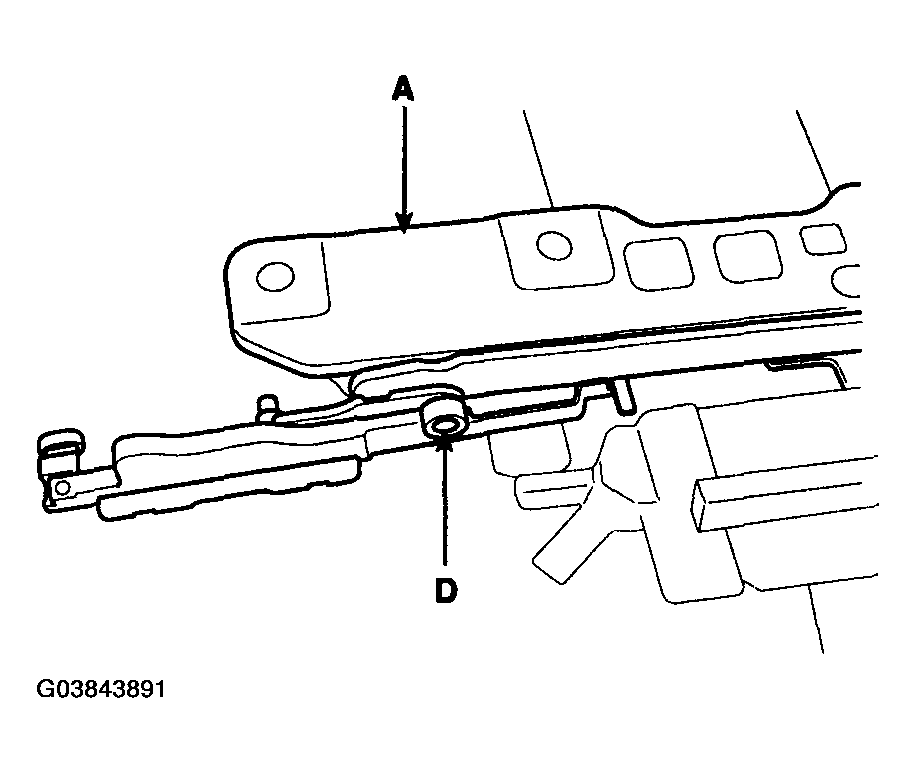

Inserting the roller (D) of a guide assembly (A) in sliding area, install a guide assembly.

Fig 2: Inserting Roller Of Guide Assembly
Courtesy of HYUNDAI MOTOR CO.

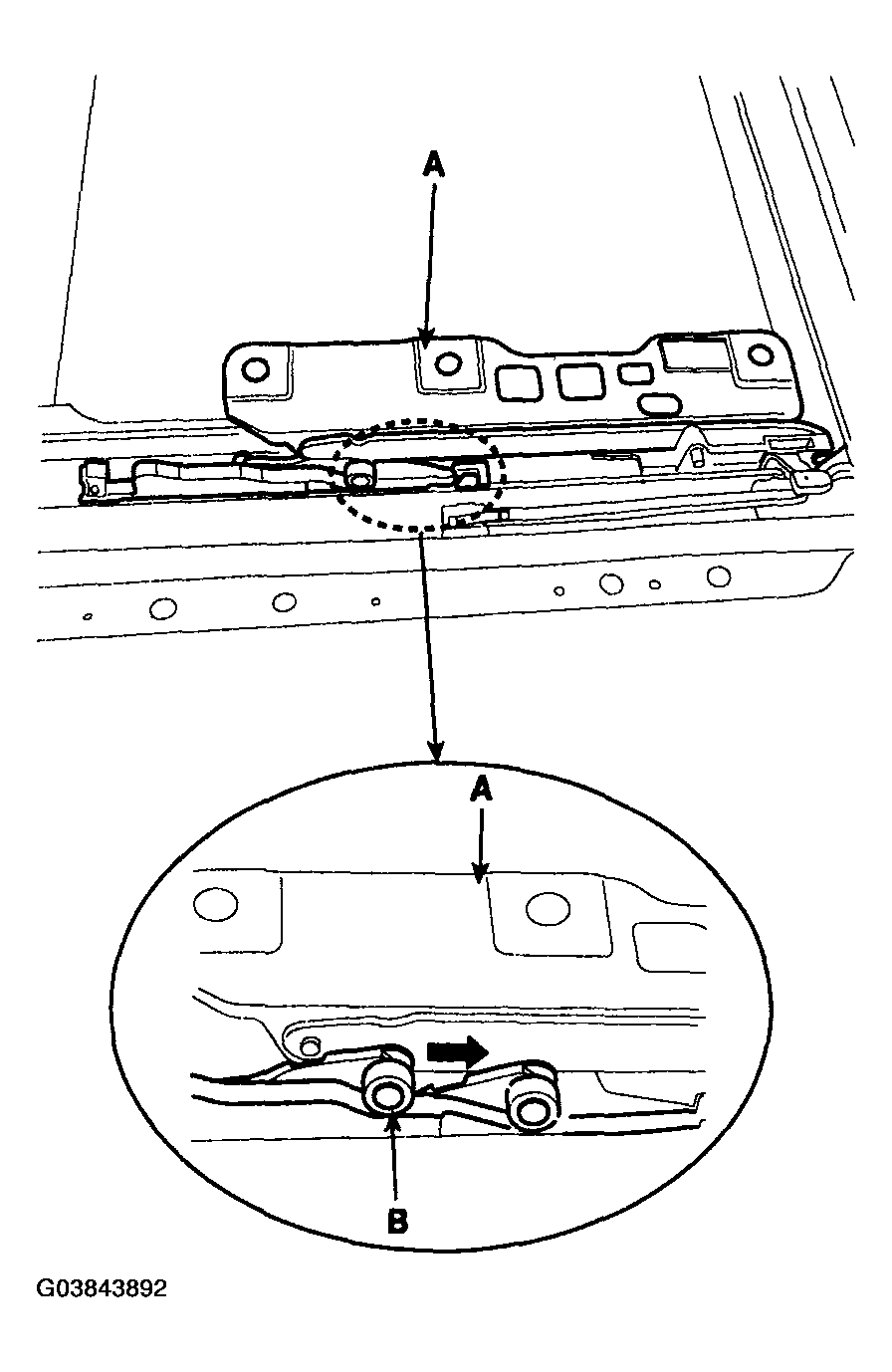

Install a guide assembly (A) pushing it to the end of rail and let the roller (D) of a guide assembly located in the middle of sliding area.

Fig 3: Installing Guide Assembly
Courtesy of HYUNDAI MOTOR CO.

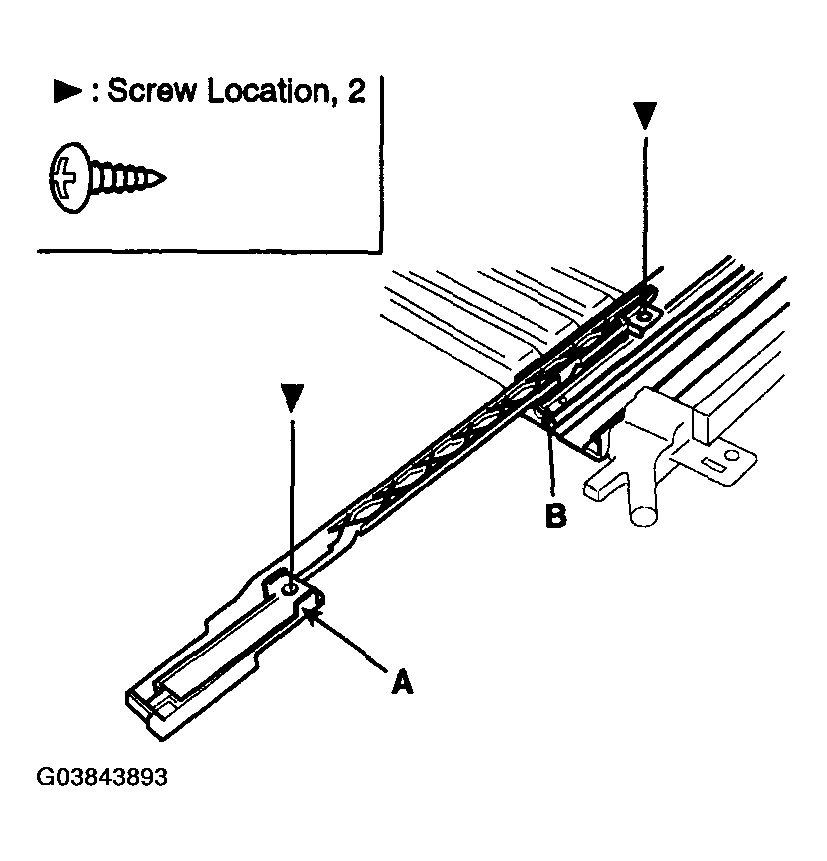

Inserting the shutting (A) into the sunroof rail (B), install the screws.

Fig 4: Inserting Shutting Into Sunroof Rail
Courtesy of HYUNDAI MOTOR CO.
