Rear Door Module Replacement

  1. Remove the door trim (see REMOVAL AND INSTALLATION ).
  2. Remove the glass (see REMOVAL AND INSTALLATION ).
  3. Disconnect the power window motor connector. Detach the harness clip.
  4. Disconnect the outside handle rod (A).
  5. Remove the door module assembly (B).

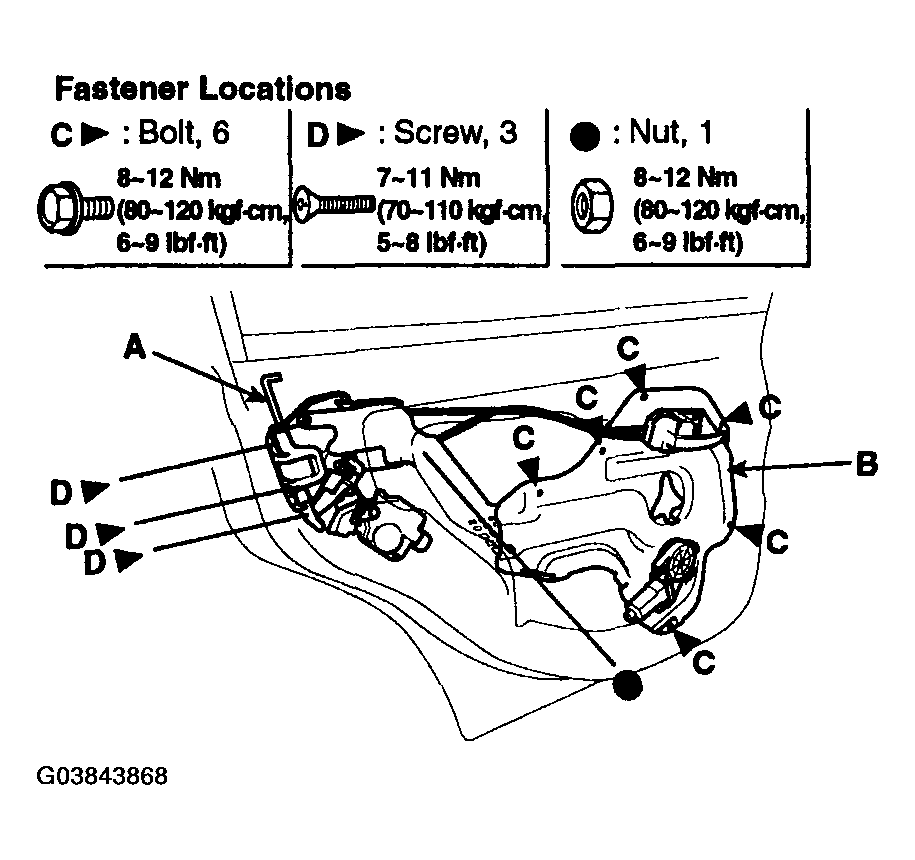

    Fig 1: Removing Door Module Assembly With Torque Specifications
    G03843868Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
