Power Window Switch Replacement

NOTE: Take care not to damage the door trim.

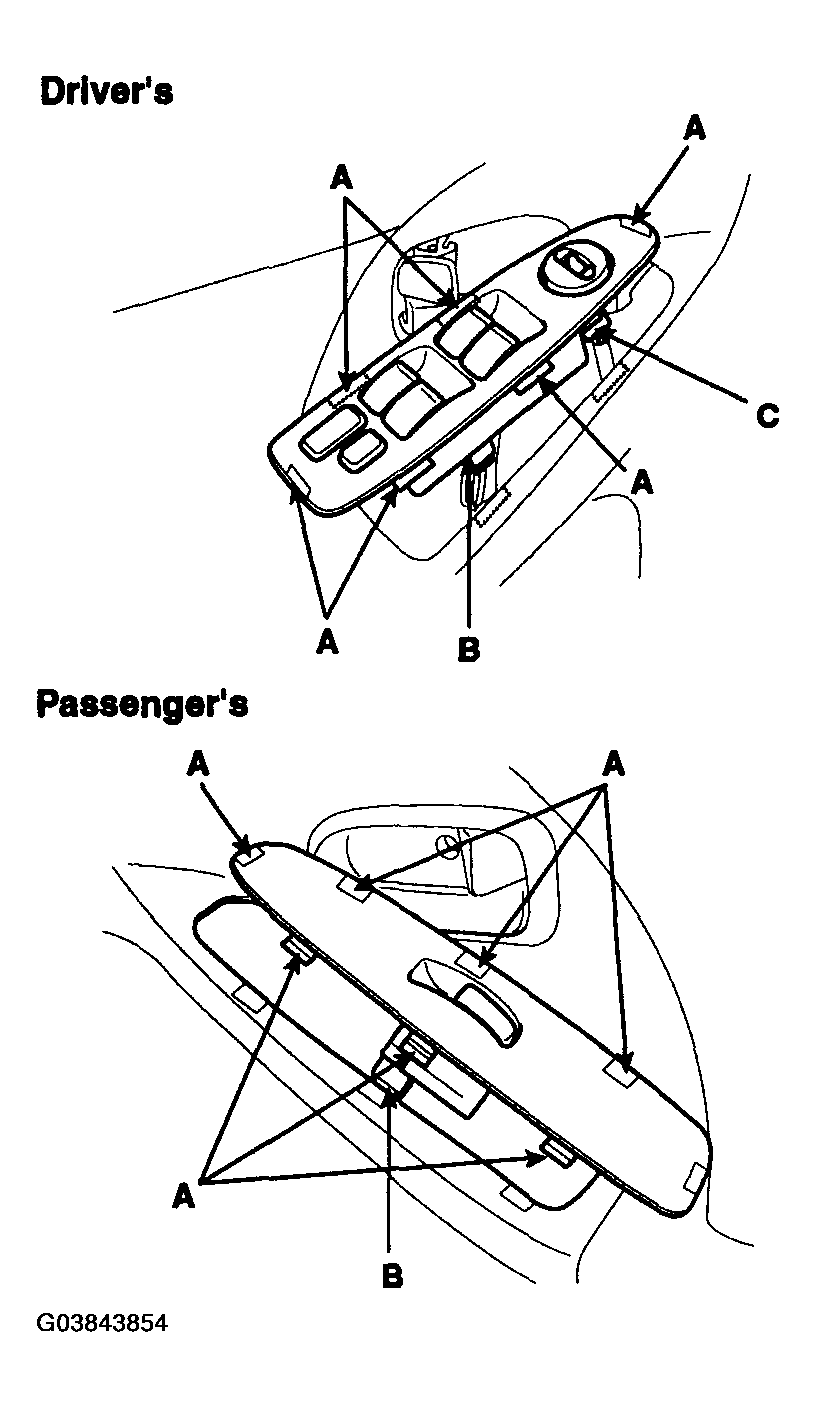

Release the hooks (A), disconnect the power window switch connector (B), and the power mirror connector (C).

Fig 1: Disconnecting Power Window Switch Connector And Power Mirror Connector
G03843854Courtesy of HYUNDAI MOTOR CO.
