Glass And Door Module Replacement

NOTE: Put on gloves to protect our hands.

Remove the outside rearview mirror cover (see REPLACEMENT ).
Remove the door trim (see REMOVAL AND INSTALLATION ).

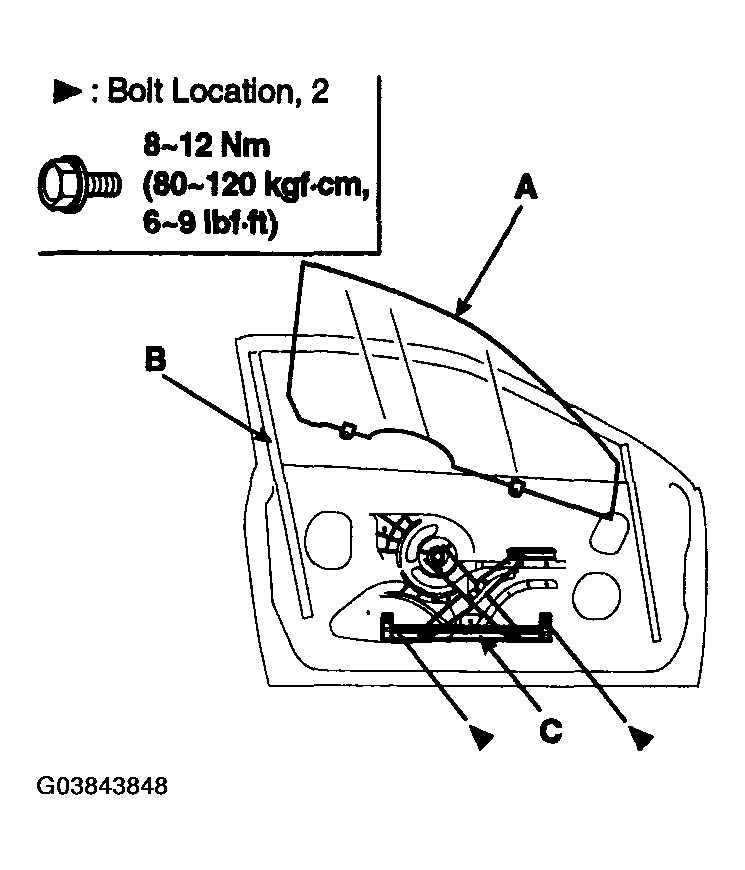

Carefully move the glass (A) until you can see the bolts, then loosen them. Separate the glass from the glass run (B) and carefully pull the glass out through the window slot (C).
CAUTION: Take care not to drop the glass and scratch the glass surface.

Fig 1: Removing Door Glass & Torque Specifications
Courtesy of HYUNDAI MOTOR CO.

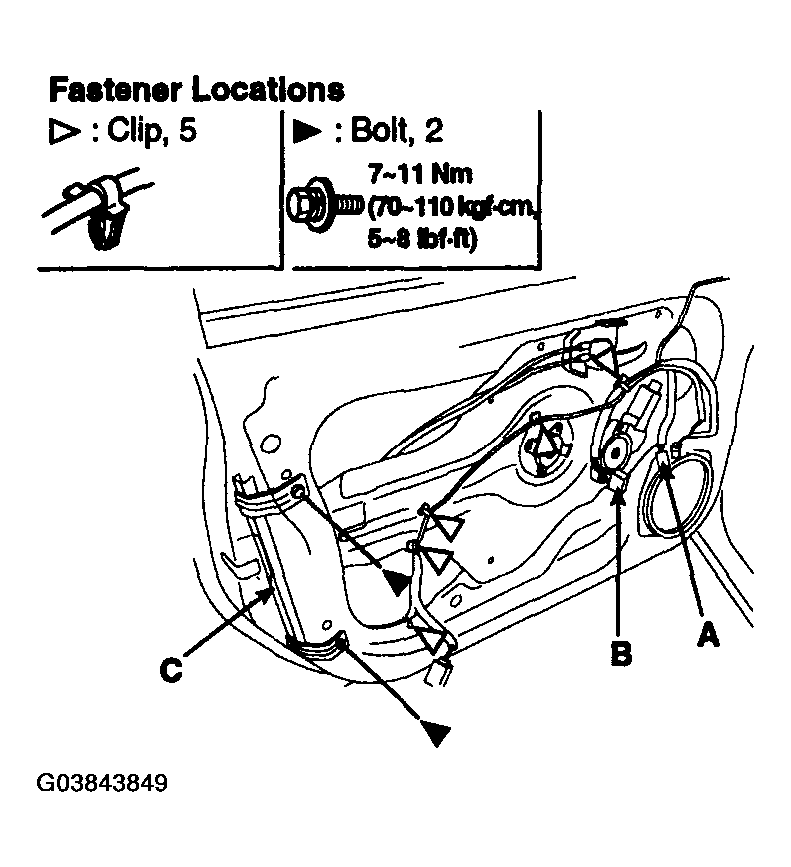

Disconnect the speaker connector (A) and power window motor connector (B). Detach the harness clip.
Remove the channel (C).

Fig 2: Disconnecting Speaker Connector And Power Window Motor Connector & Torque Specifications
Courtesy of HYUNDAI MOTOR CO.

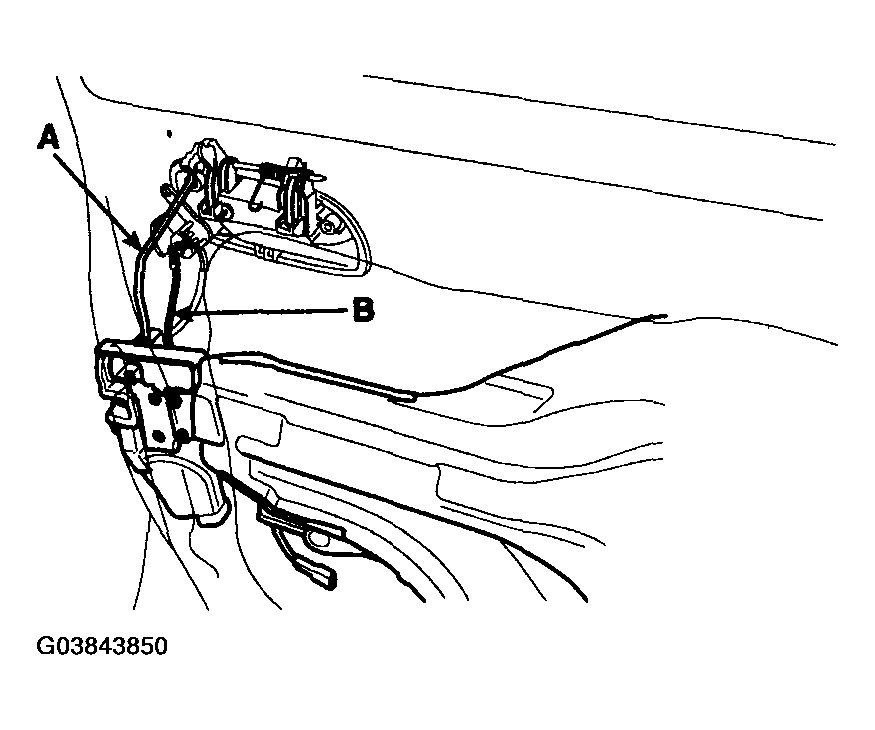

Disconnect the outside handle rod (A) and lock rod (B).

Fig 3: Disconnecting Outside Handle Rod And Lock Rod
Courtesy of HYUNDAI MOTOR CO.

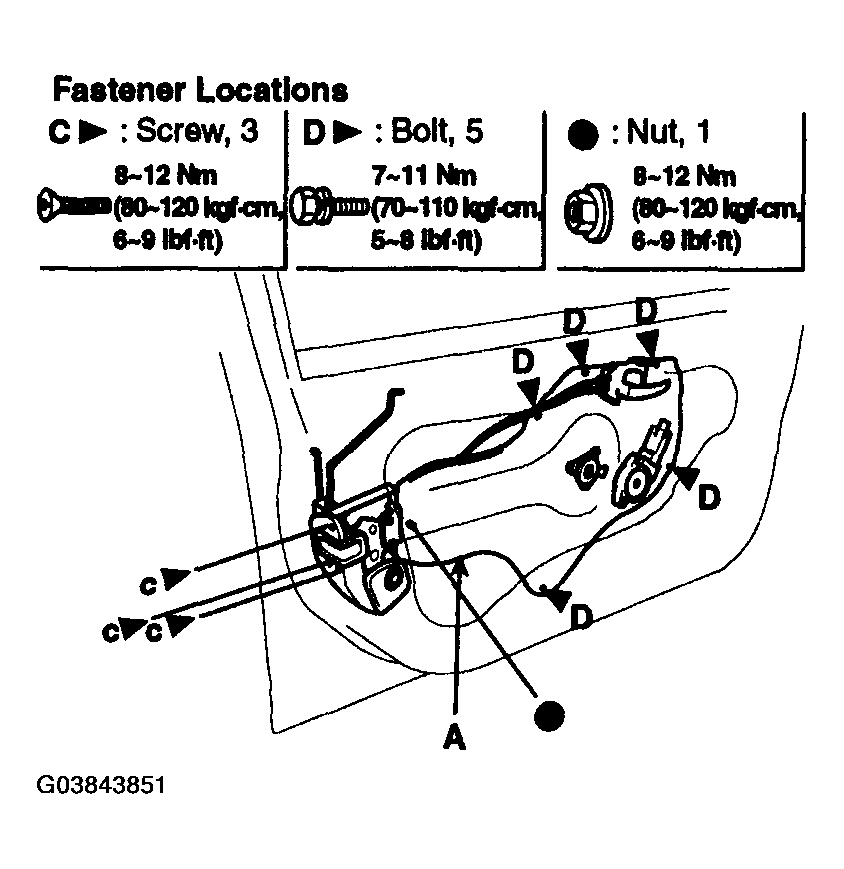

Remove the door module assembly (A).

Fig 4: Removing Door Module Assembly & Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
- Roll the glass up and down to see if it moves freely without binding.
- Make sure that there is no clearance between the glass and glass run channel when the glass is closed.
- Adjust the position of the glass as necessary (see DOOR POSITION ADJUSTMENT ).
