Front Door: Components

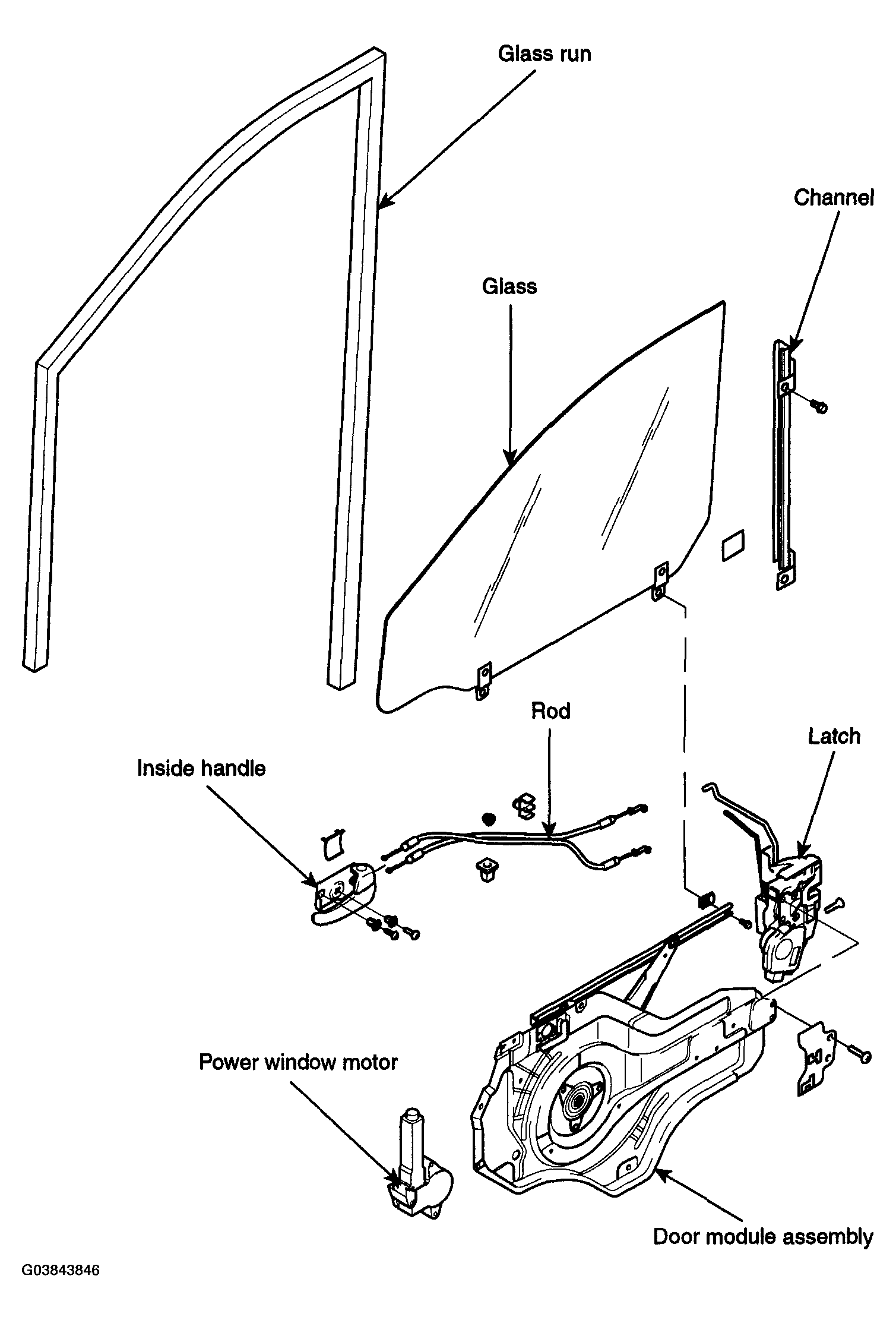

Fig 1: Exploded View Of Front Door (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

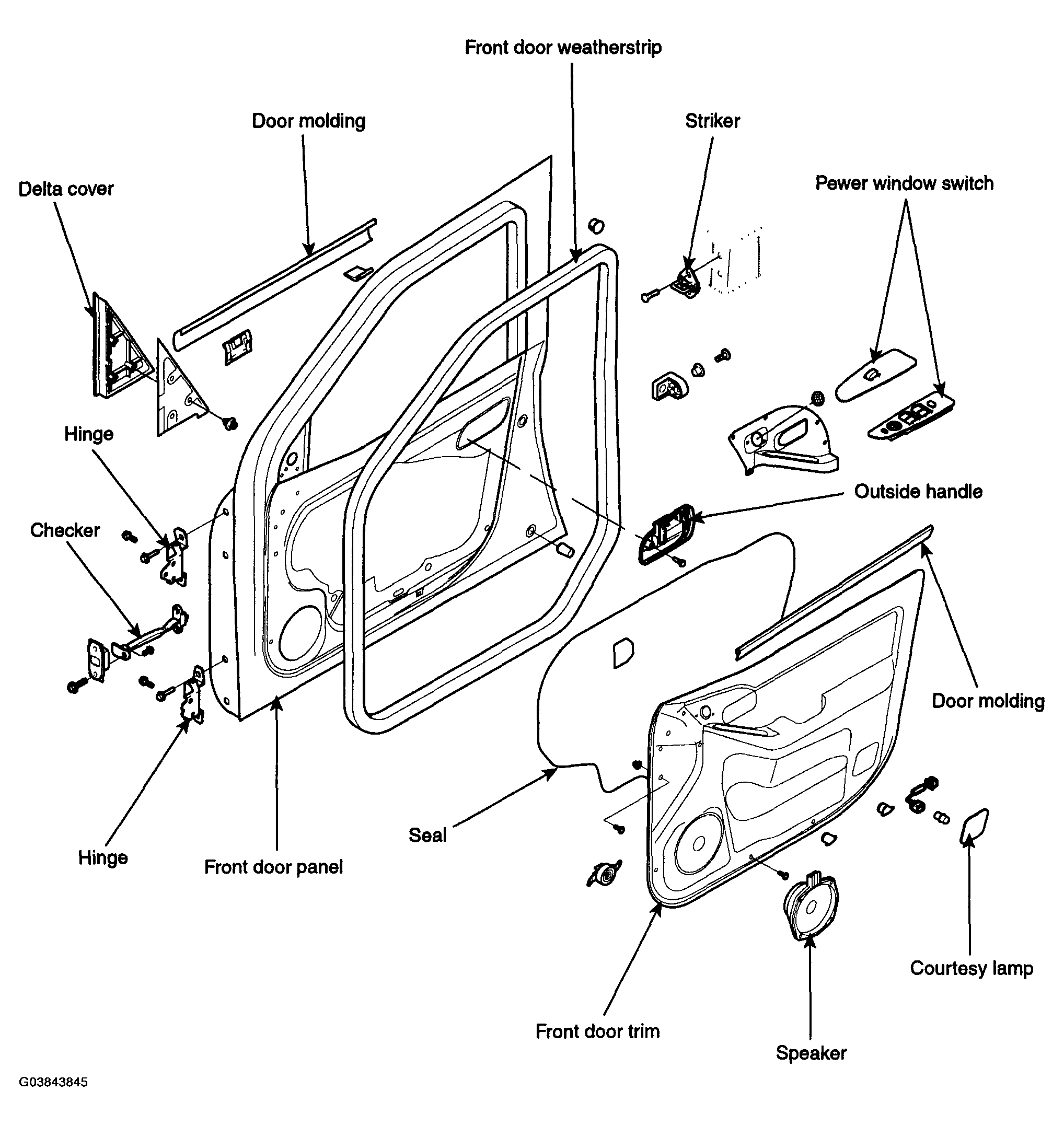

Fig 2: Exploded View Of Front Door (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
