Immobilizer Control System
>>
Circuit Diagram
Circuit Diagram

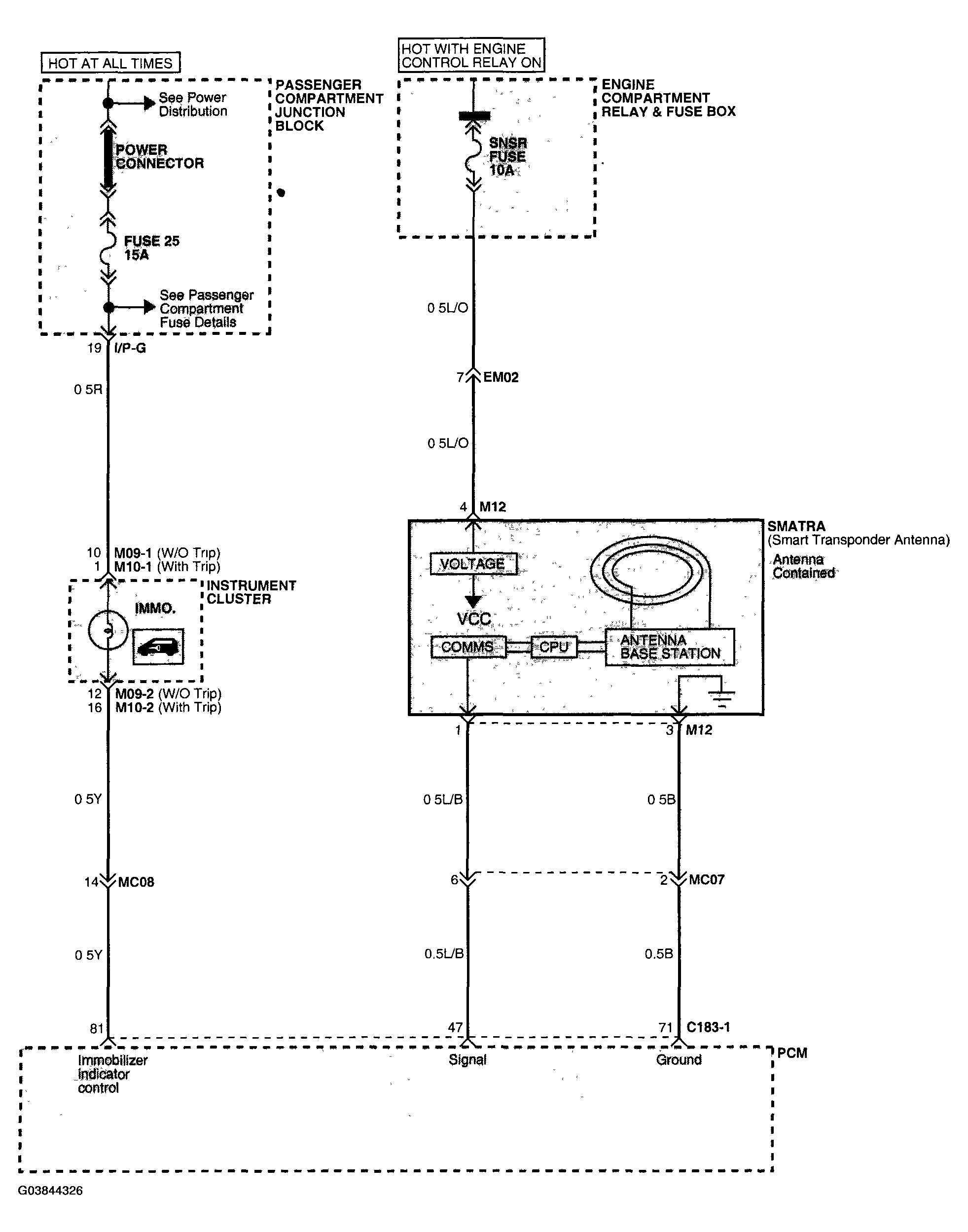

Fig 1: Circuit Diagram - Immobilizer Control System
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
