Inspect Ignition Switch

  1. Remove the connector located under the steering column.
  2. Check for continuity between terminals.

    If there is no continuity, replace the ignition switch.

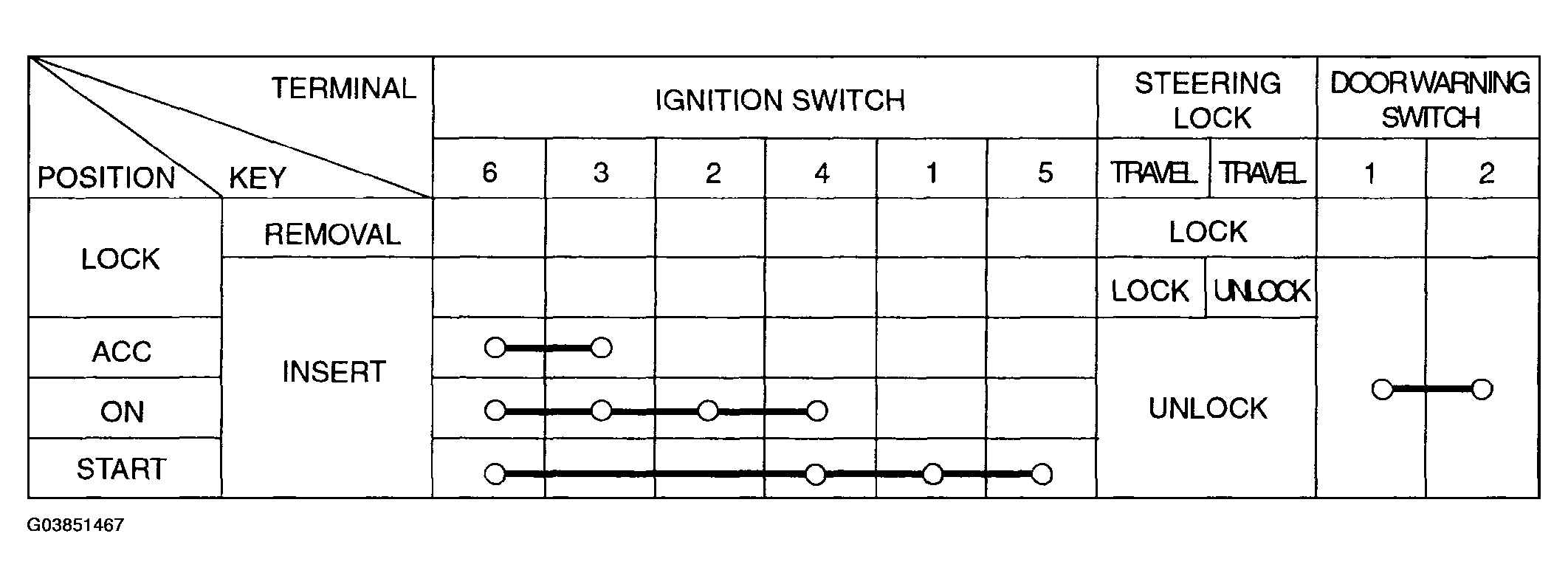

    Fig 1: Identifying Continuity Chart
    G03851467Courtesy of HYUNDAI MOTOR CO.

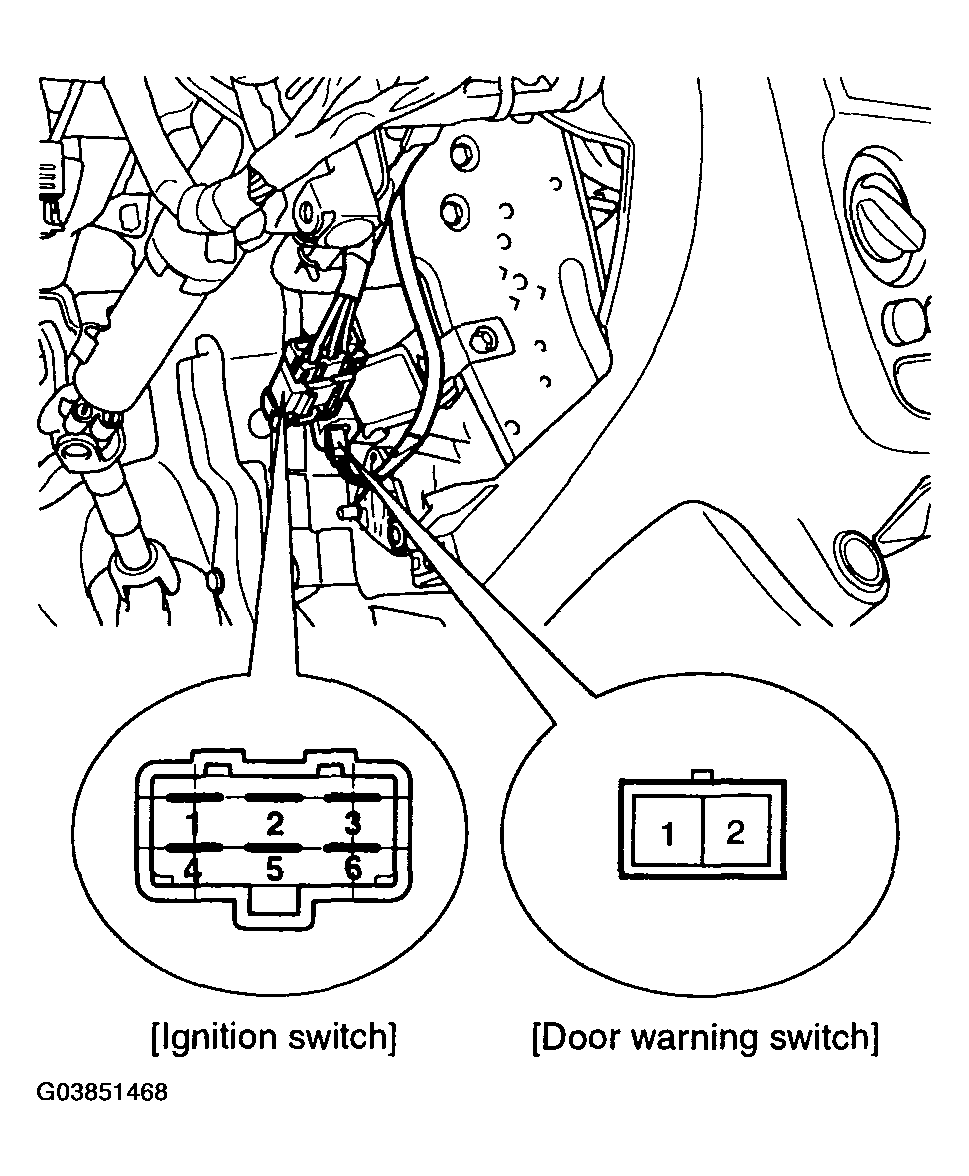

    Fig 2: Identifying Door Warning Switch And Ignition Switch
    G03851468Courtesy of HYUNDAI MOTOR CO.
