Charging System Test Procedure: Notes

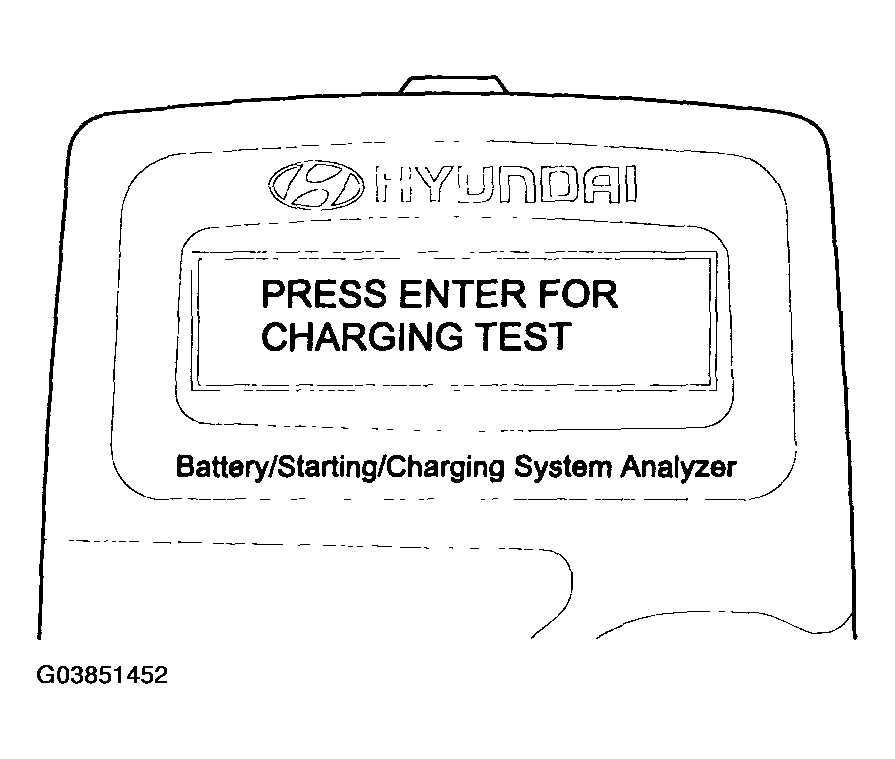

Press ENTER to begin charging system test.

Fig 1: Identifying Charging System Test Screen
Courtesy of HYUNDAI MOTOR CO.
If ENTER button is pressed, the tester displays the actual voltage of alternator.
Press ENTER to test the charging system.

Fig 2: Identifying Alternator Voltage
Courtesy of HYUNDAI MOTOR CO.

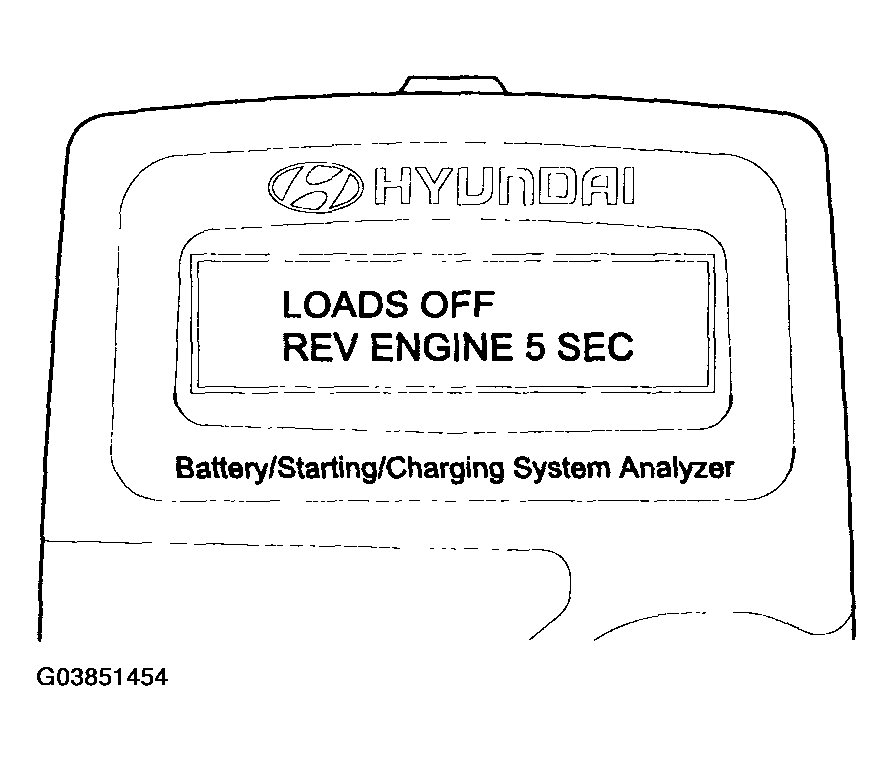

Turn off all electrical load and rev engine for 5 seconds with pressing the accelerator pedal.

Fig 3: Identifying Rev Engine Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Press ENTER.

Fig 4: Identifying Rev Engine Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
The MICRO 570 analyzer charging system output at idle for comparison to other readings.

Fig 5: Identifying Analyzer Charging System Output At Idle
Courtesy of HYUNDAI MOTOR CO.
Take a relevant action according to the test results by referring to the Fig 6 after shutting off the engine and disconnect the tester clamps from the battery.

Fig 6: Identifying Diode Ripple Screen
Courtesy of HYUNDAI MOTOR CO.
