Battery Test Procedure: Notes

Connect the tester to the battery.
- Red clamp to battery positive (+) terminal.
- Black clamp to battery negative (-) terminal.

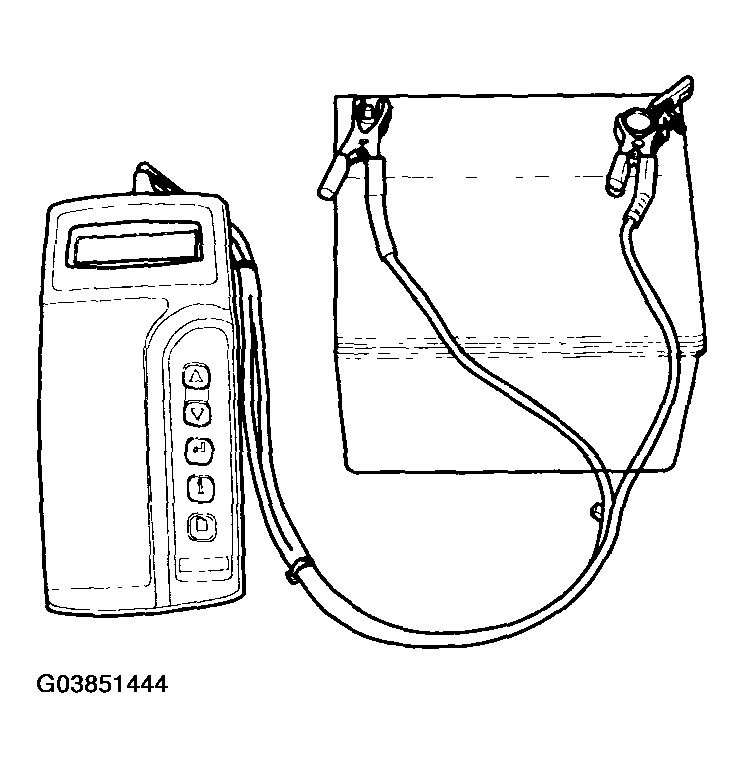

  Fig 1: Connecting Tester To Battery
  Courtesy of HYUNDAI MOTOR CO.
CAUTION: Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.
The tester will ask if the battery is connected "IN A VEHICLE" or "OUT OF A VEHICLE". Make your selection by pressing the arrow buttons; then press ENTER.

Fig 2: Identifying Charging System Analyzer
Courtesy of HYUNDAI MOTOR CO.
Choose either CCA or CCP and press the ENTER button.

Fig 3: Choosing Either CCA Or CCP
Courtesy of HYUNDAI MOTOR CO.
NOTE:
- CCA : Cold cranking amps, is an SAE specification for cranking battened at 0°F (-18°C).
- CCP: Cold cranking amps, is an SAE specification for Korean manufacturer's for cranking batteries at 0°F (-18°C).
Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.

Fig 4: Setting CCA Value
Courtesy of HYUNDAI MOTOR CO.

NOTE: The battery ratings (CCA) displayed on the tester must be identical to the ratings marked on battery label.
The tester (Micro570) displays battery test results including voltage and battery ratings. A relevant action must be given according to the test results by referring to the battery test results as shown in the Fig 5 below.

Fig 5: Identifying Battery Test Results
Courtesy of HYUNDAI MOTOR CO.
To conduct starter test, continuously, press ENTER.
