Home >> Hyundai >> 2005 >> Accent GT, Standard >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Starter >> Components

Starting System: Starter: Components

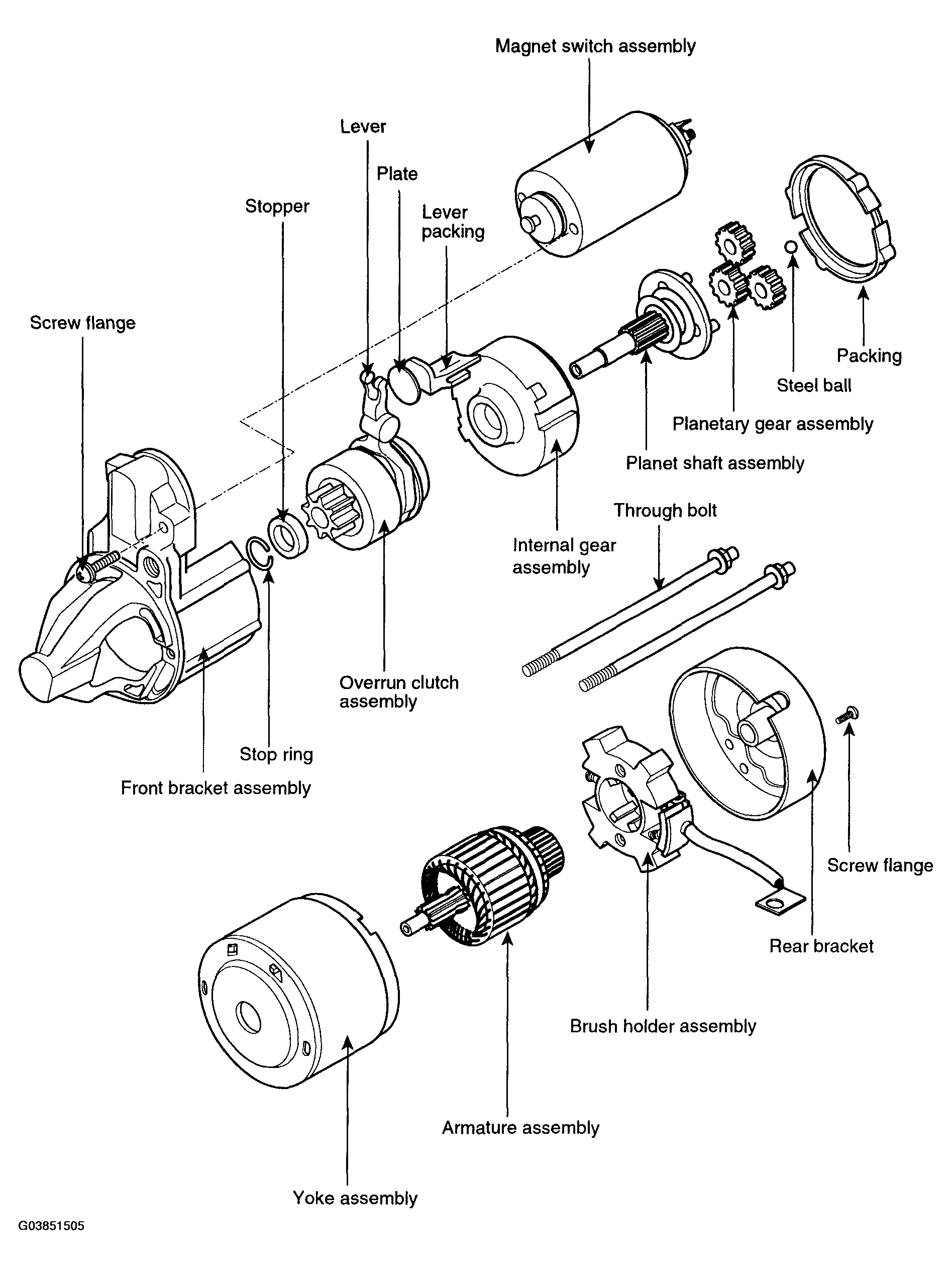

Fig 1: Identifying Starter System Components

G03851505

Courtesy of HYUNDAI MOTOR CO.
