Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

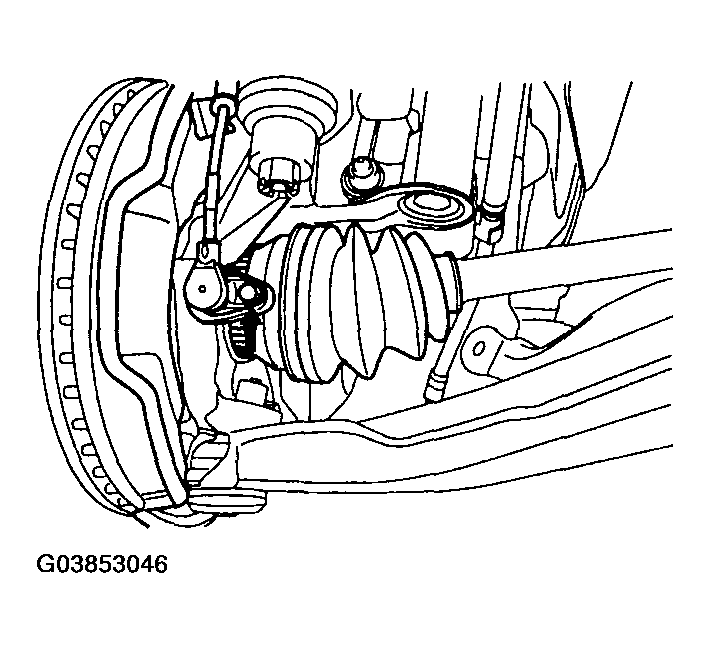

    Fig 1: Removing Front Wheel Speed Sensor Mounting Bolt
    G03853046Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel guard.

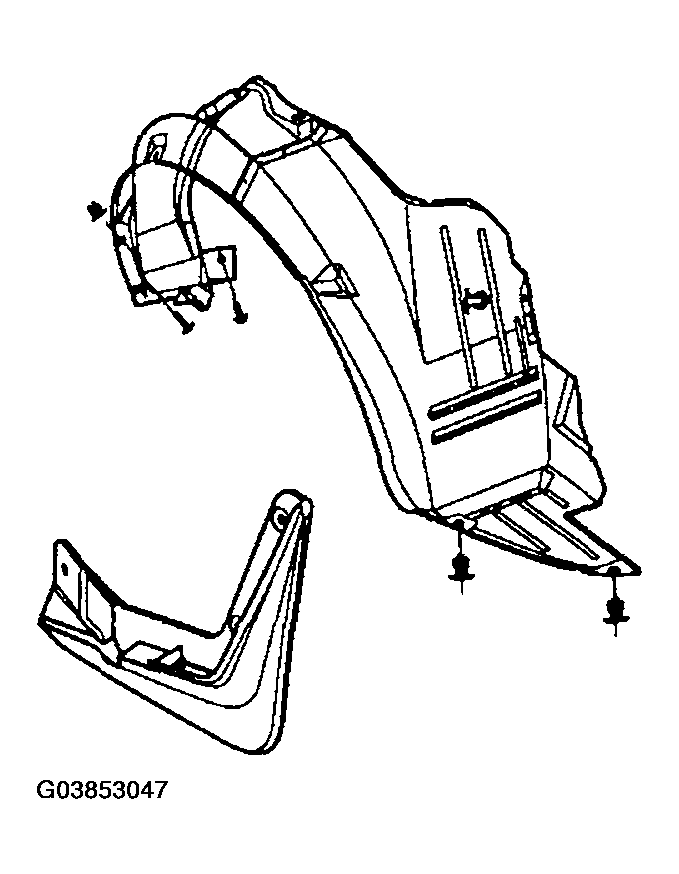

    Fig 2: Removing Front Wheel Guard
    G03853047Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

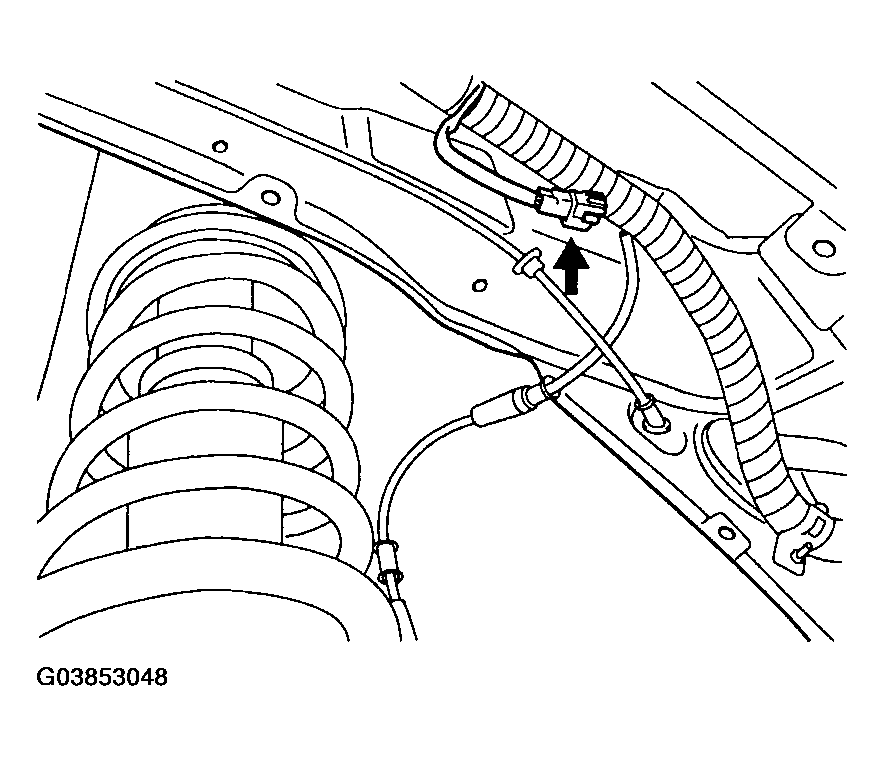

    Fig 3: Removing Front Wheel Speed Sensor
    G03853048Courtesy of HYUNDAI MOTOR CO.
