Anti-Lock Braking System Wheel Speed Sensor: Components

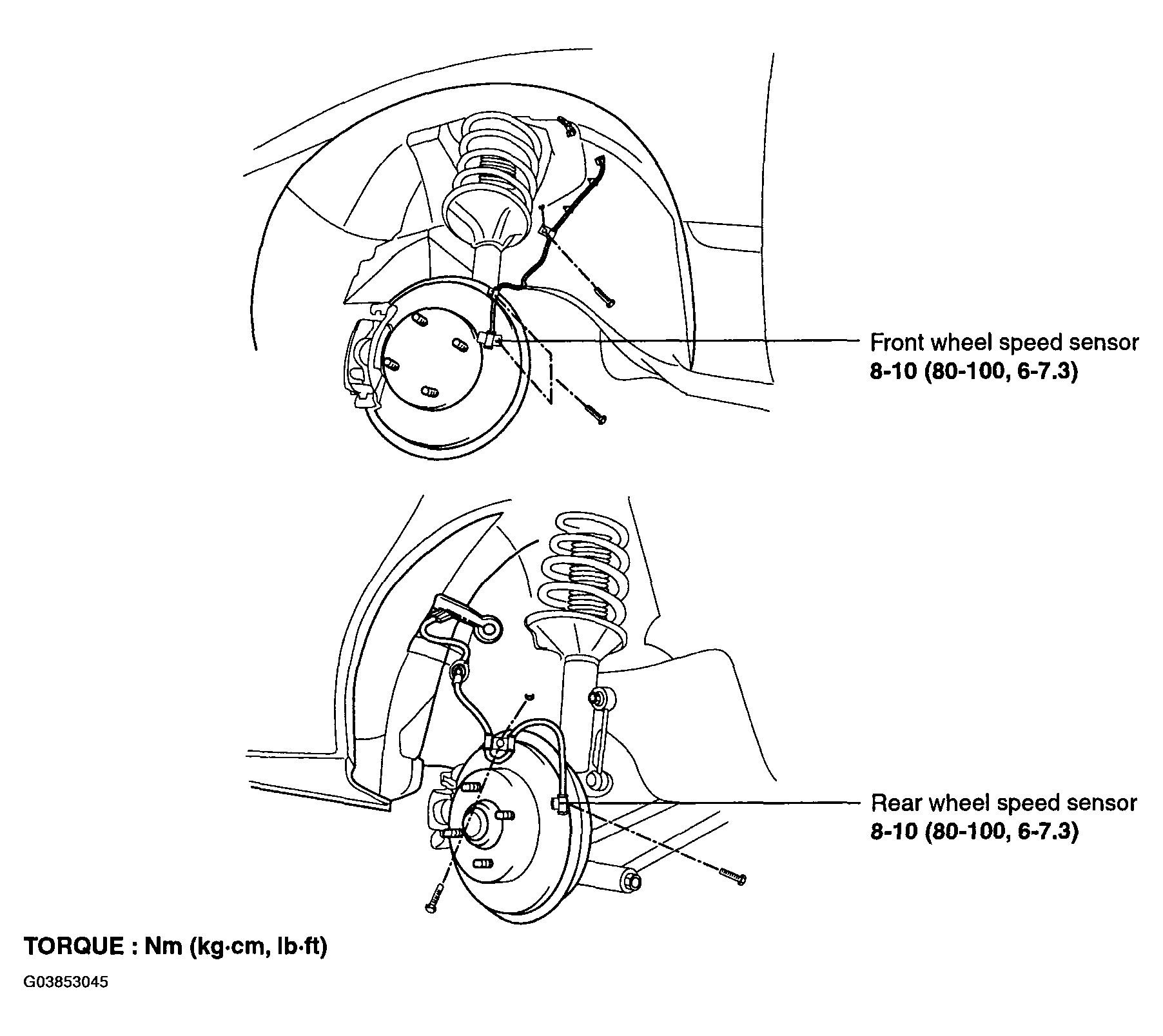

Fig 1: Anti-Lock Braking System Wheel Speed Sensor Replacement Components With Torque Specifications

G03853045

Courtesy of HYUNDAI MOTOR CO.
