Shift And Key Lock Control System
>>
Circuit Diagram
Circuit Diagram

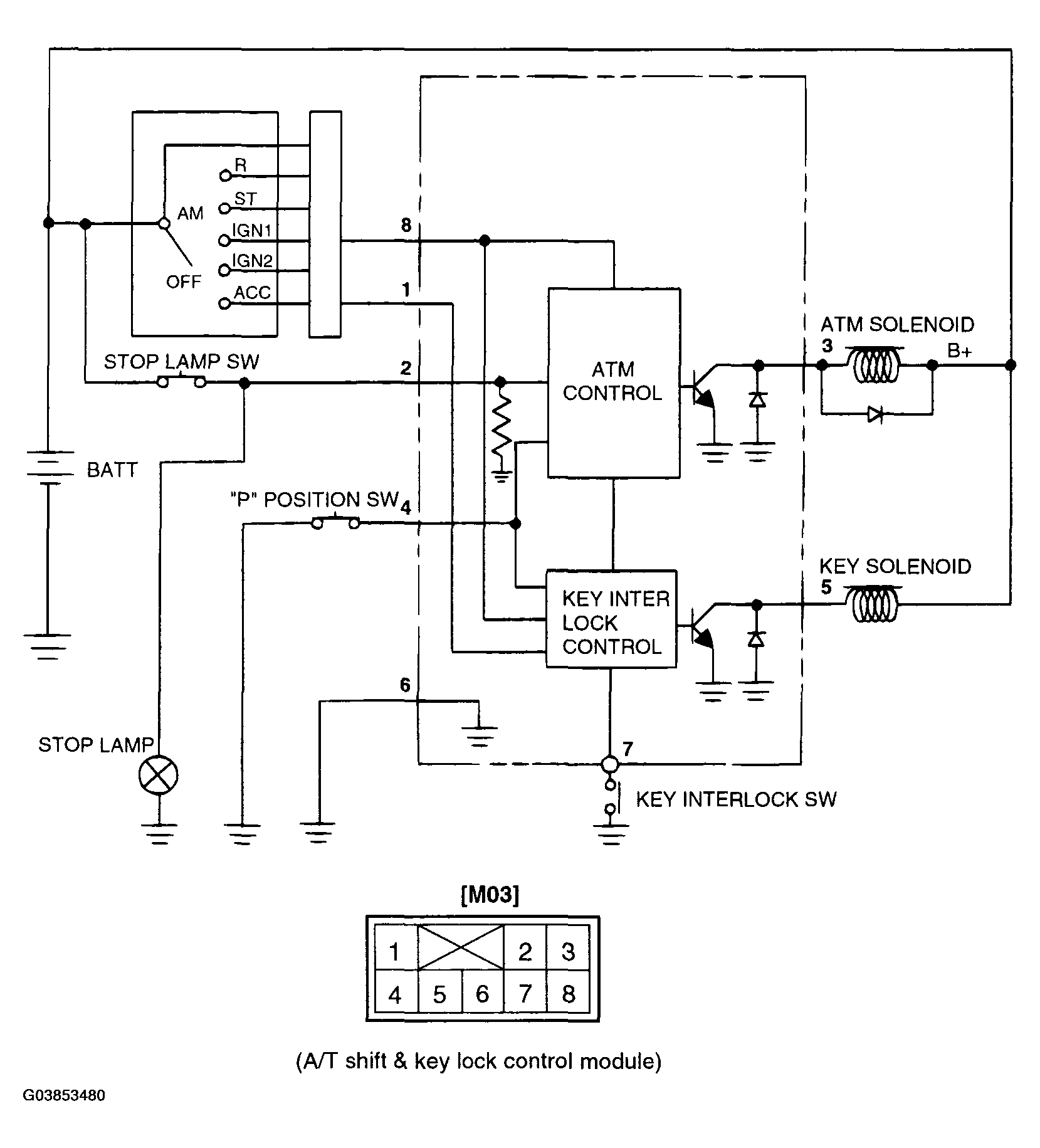

Fig 1: Shift And Key Lock Control System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
