Transaxle Range Switch Adjustment

Place selector lever in "N" (Neutral) position.
Loosen the manual control lever lock nut to separate the cable and lever.

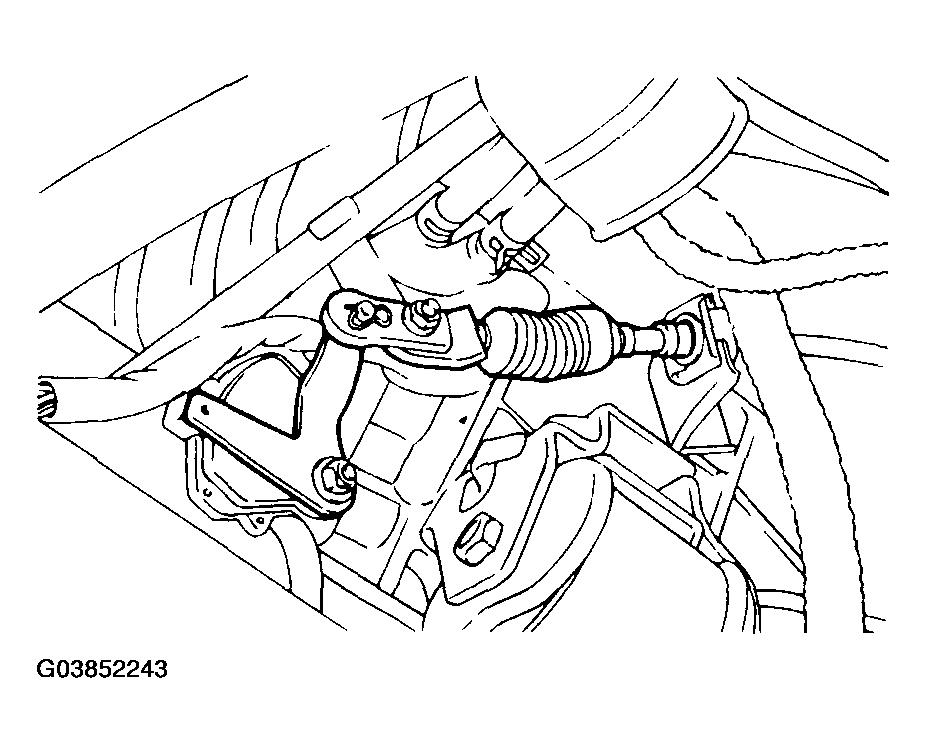

Fig 1: Loosening Manual Control Lever Lock Nut To Separate Cable And Lever
Courtesy of HYUNDAI MOTOR CO.
Place the manual control lever in the "N" (Neutral) position.
Turn the transaxle range switch body until the 12 mm (0.47 in.) wide end of the manual control lever aligns with the switch body flange [12 mm (0.472 in.) wide portion].
Tighten the attaching bolts (2 pcs.) to the specified torque.
Transaxle Range Switch Attaching Bolt:

10~12 Nm (100~120 kg.cm, 7~9 lb.ft)

NOTE: When setting up the switch body, be careful that the O-ring does not drop from the switch body. Tighten the attaching bolts carefully.

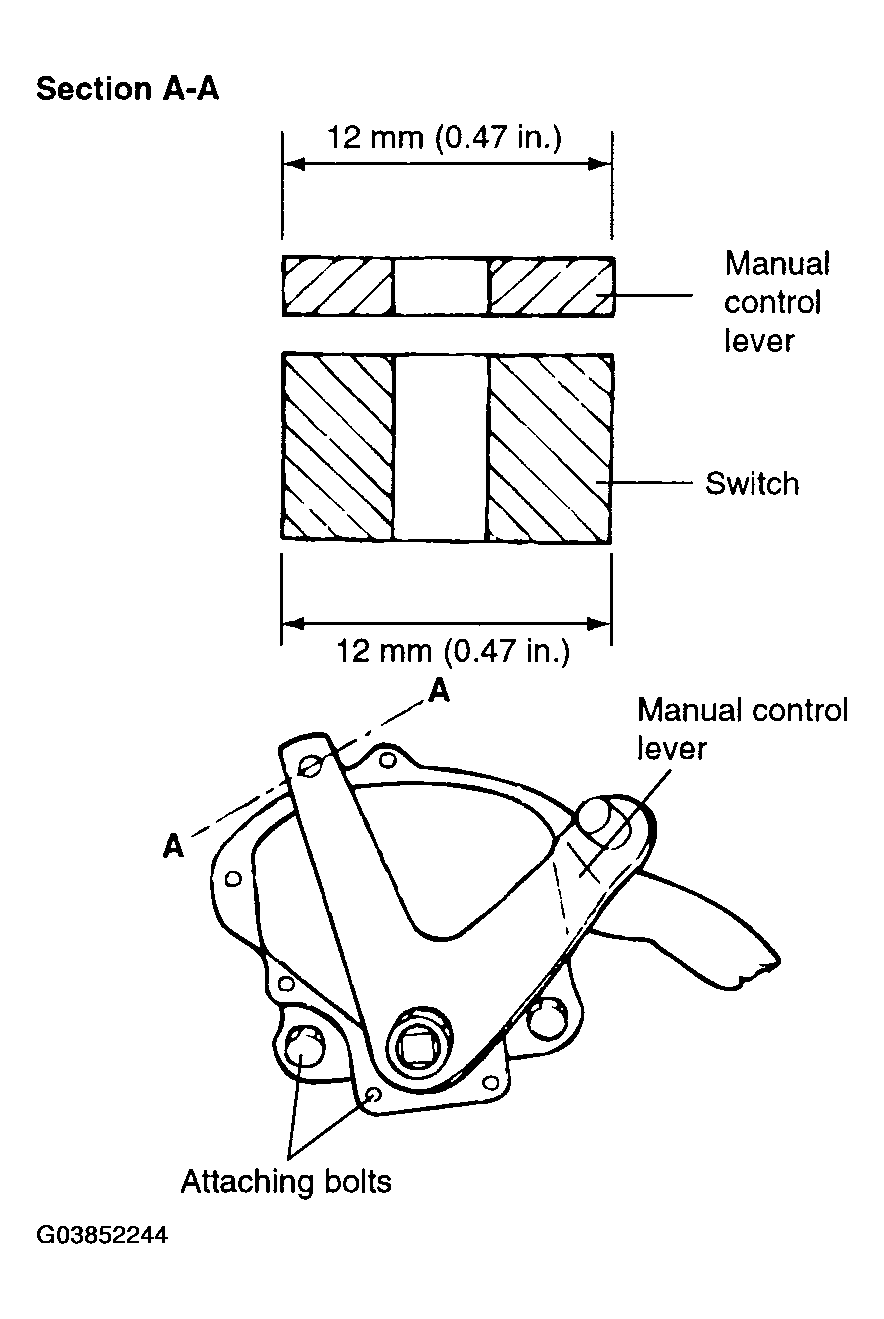

Fig 2: Turning Transaxle Range Switch Body Until Wide End Of Manual Control Lever Aligns With Switch Body Flange And Tighten Attaching Bolts
Courtesy of HYUNDAI MOTOR CO.
Make sure that the selector lever is in the "N" (Neutral) position.
Adjust the flange nut so that there is no slack in the control cable and make sure that the selector lever operates smoothly.

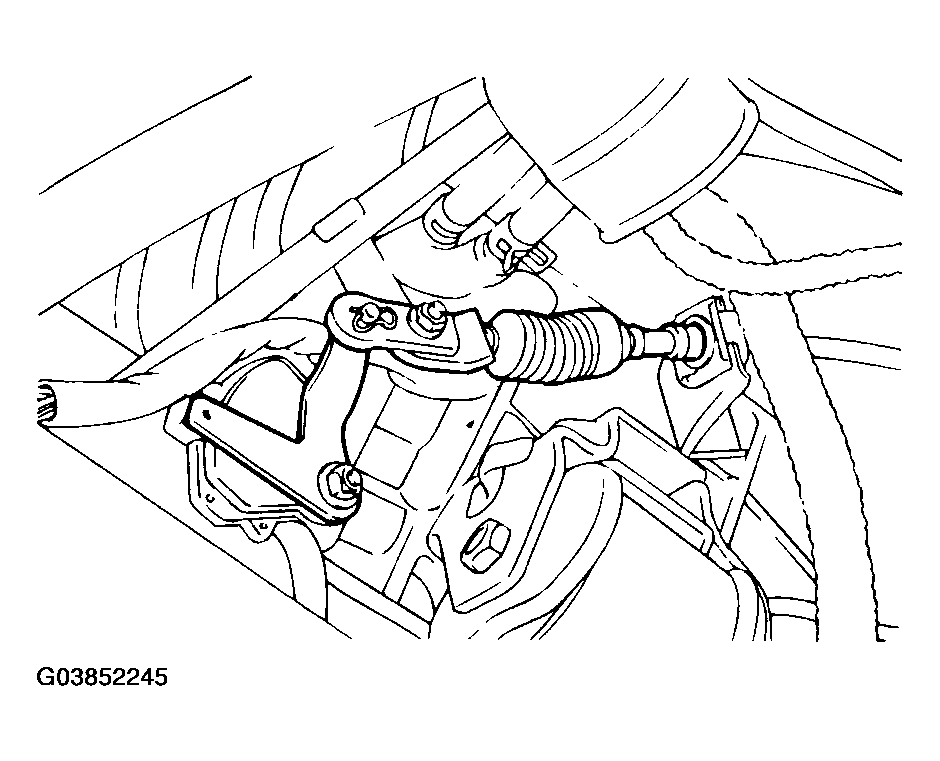

Fig 3: Adjusting Flange Nut

Courtesy of HYUNDAI MOTOR CO.

Run the vehicle and confirm that the transaxle is set in each range when the selector lever is shifted to each position.
