Inspection Procedure 12

POSSIBLE CAUSES - INSPECTION PROCEDURE 12

Some points (Early, late shifting points) Possible cause
Some shift points occurs early, late while driving. In such cases, the cause may be a defective valve body, or it is phenomenon related to control and is not an abnormality.
  • Malfunction of valve body

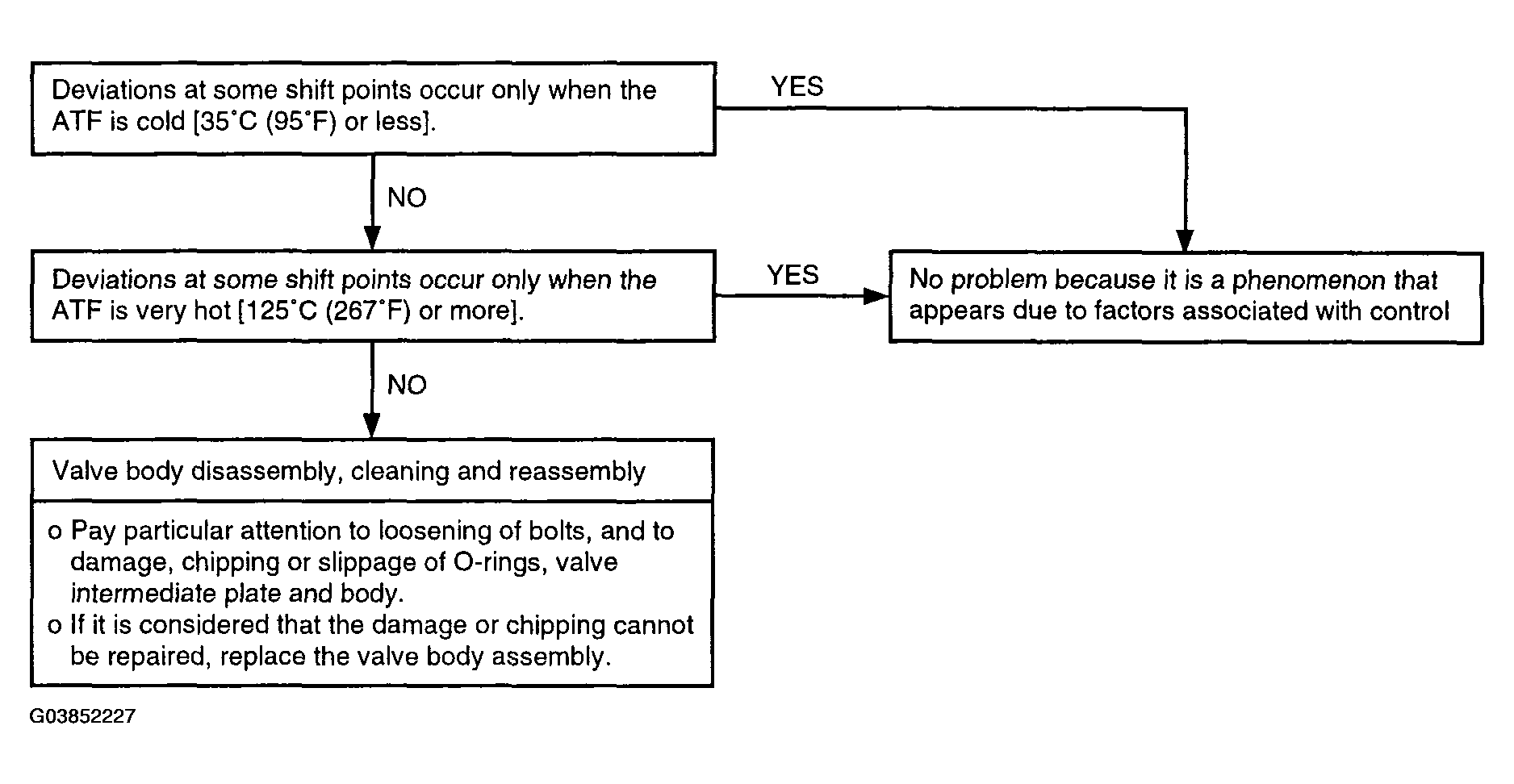

Fig 1: Inspection Procedure 12 - Flow Chart
G03852227Courtesy of HYUNDAI MOTOR CO.
