Accent GT, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle System
>>
Hydraulic Control System
>>
Manual Valve
Manual Valve

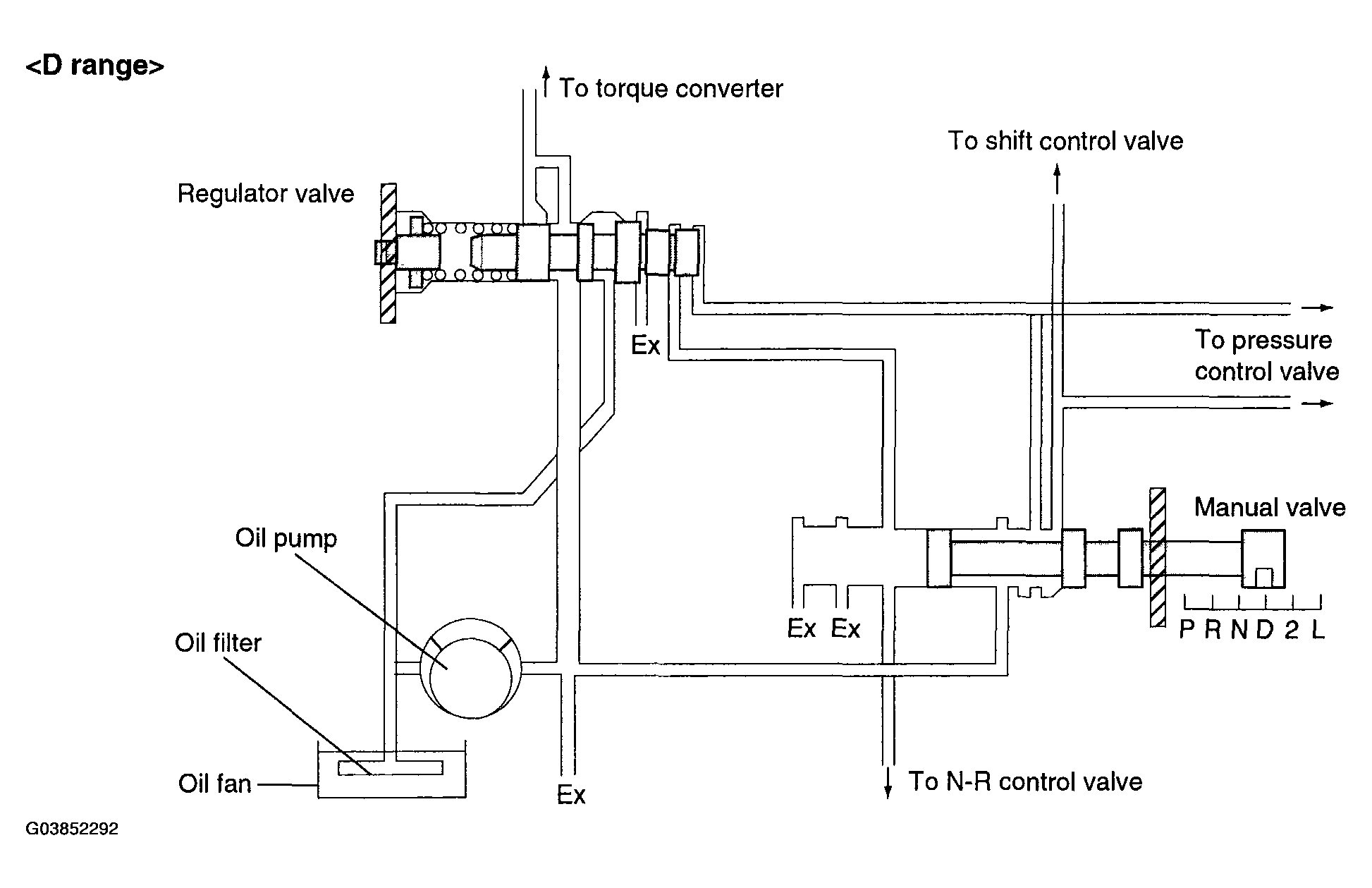

Fig 1: Hydraulic Control System - Manual Valve (D Range)
Courtesy of HYUNDAI MOTOR CO.

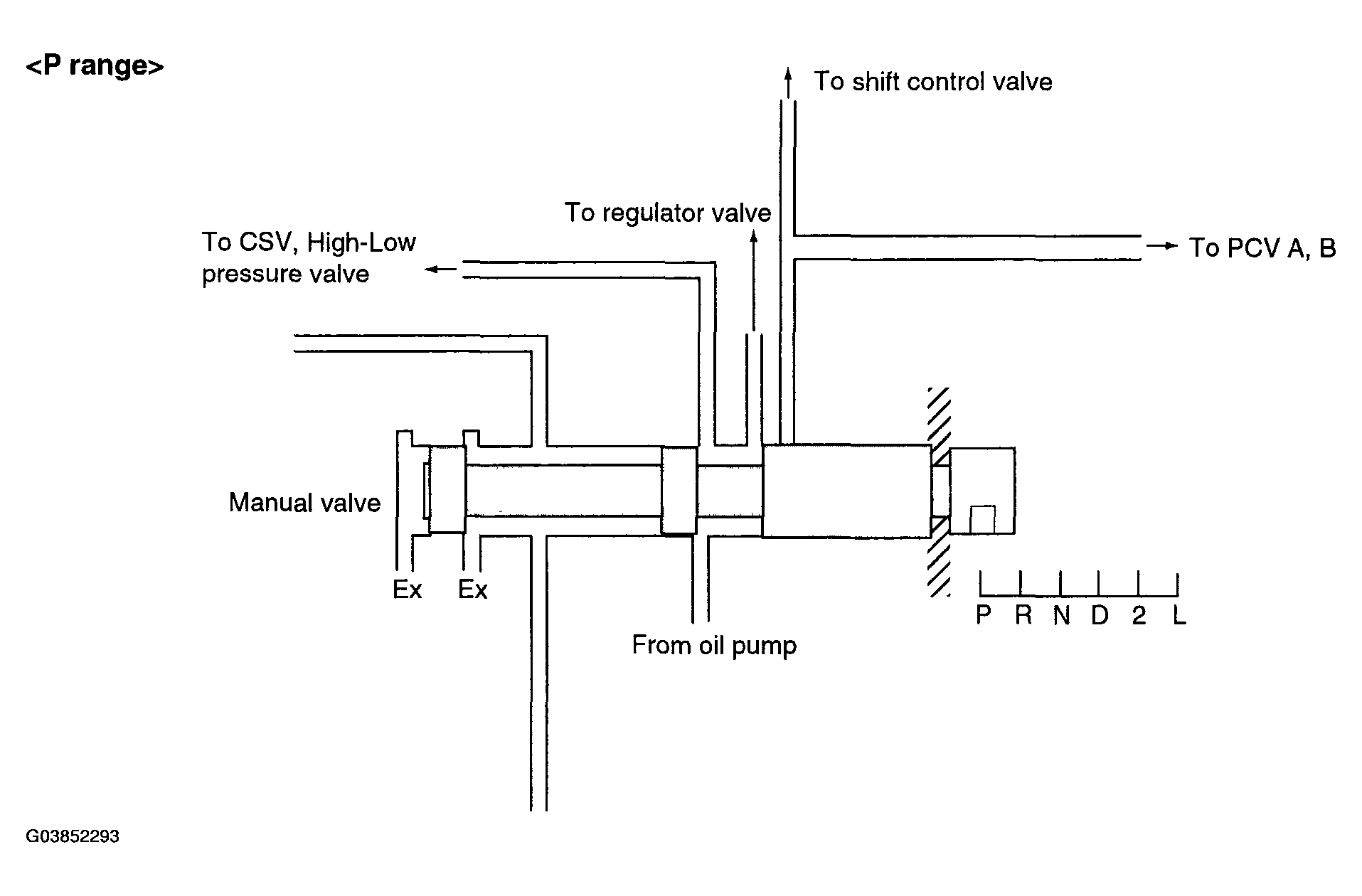

Fig 2: Hydraulic Control System - Manual Valve (P Range)
Courtesy of HYUNDAI MOTOR CO.

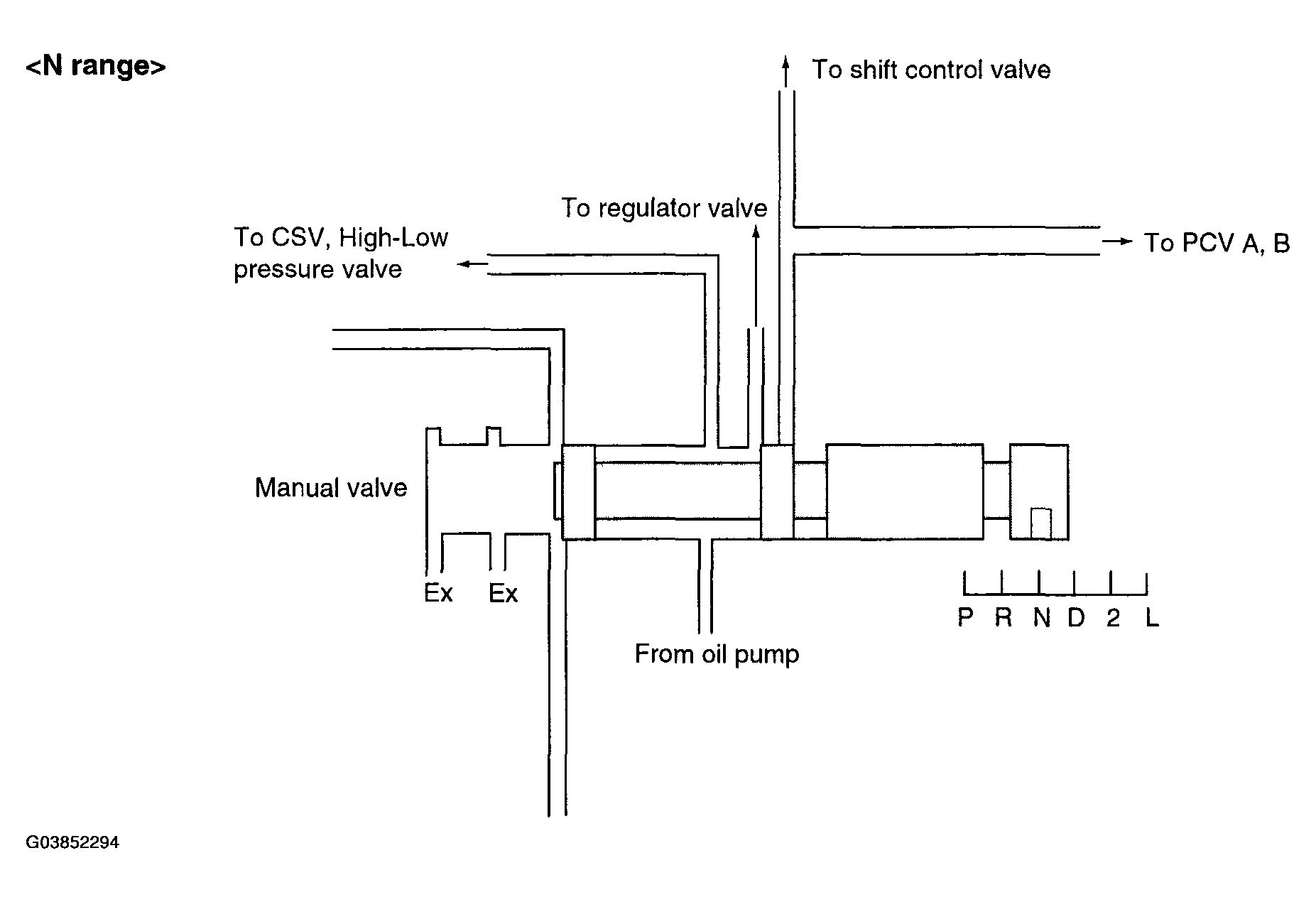

Fig 3: Hydraulic Control System - Manual Valve (N Range)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
