LEMON Manuals
: Even more car manuals for everyone
Home
>>
Hyundai
>>
2005
>>
Accent GT, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle System
>>
DTC Troubleshooting Procedures
>>
DTC P0733
>>
Inspection Procedure
Inspection Procedure
Fig 1: DTC P0733: Inspection Procedure Flow Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

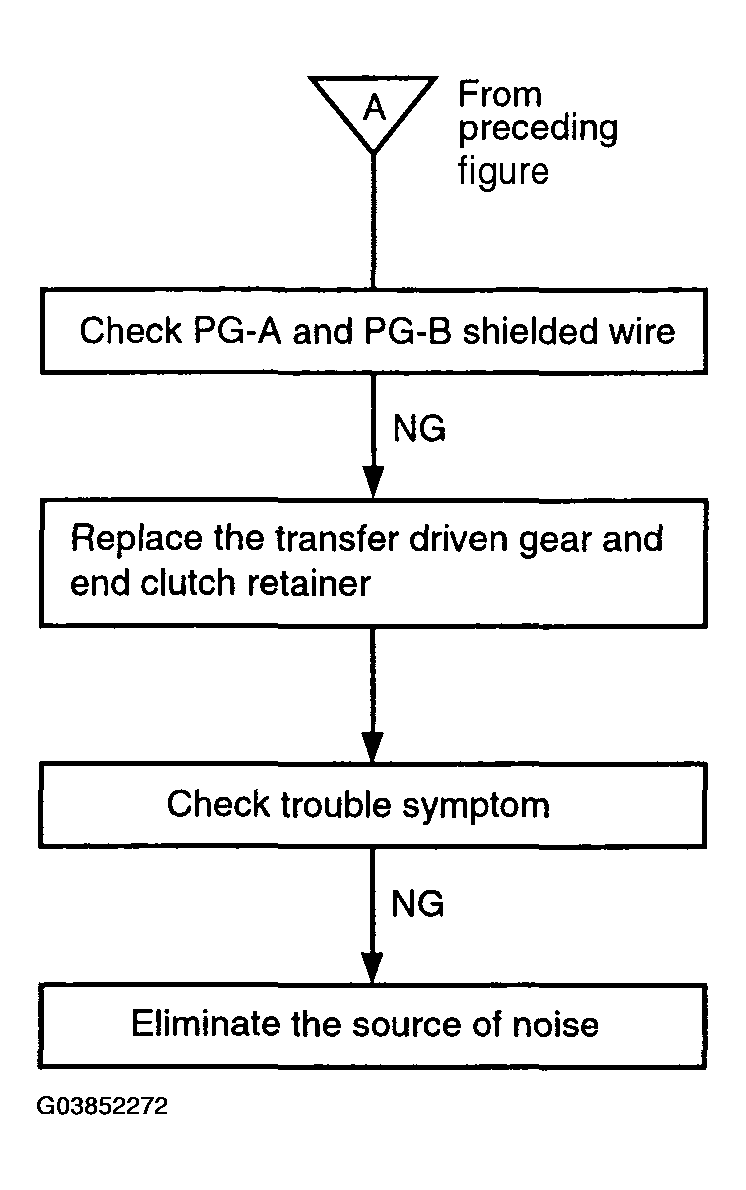

Fig 2: DTC P0733: Inspection Procedure Flow Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
