Automatic Transaxle: Removal

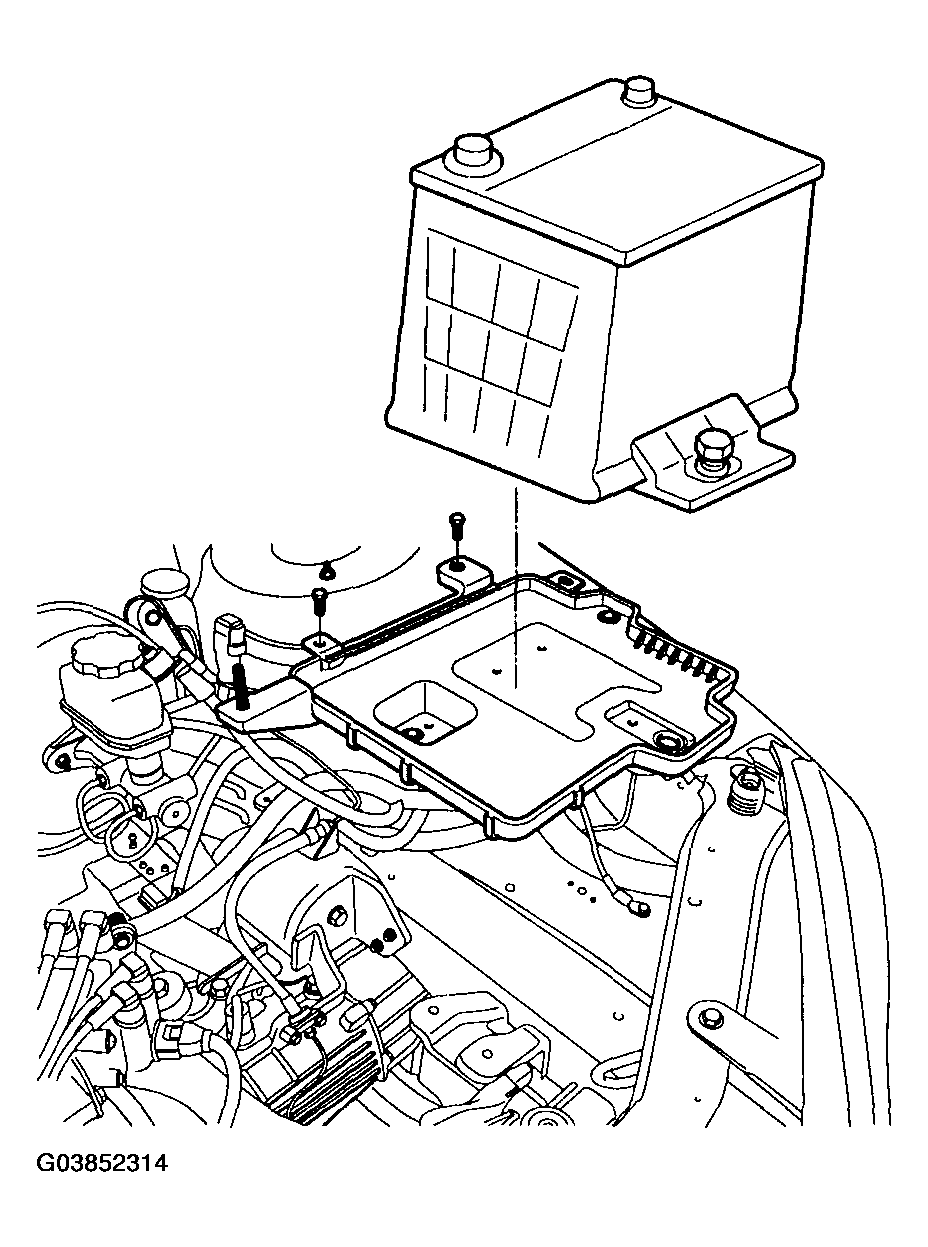

Remove the battery terminal and the battery.

Fig 1: Removing Battery Terminal And Battery
Courtesy of HYUNDAI MOTOR CO.

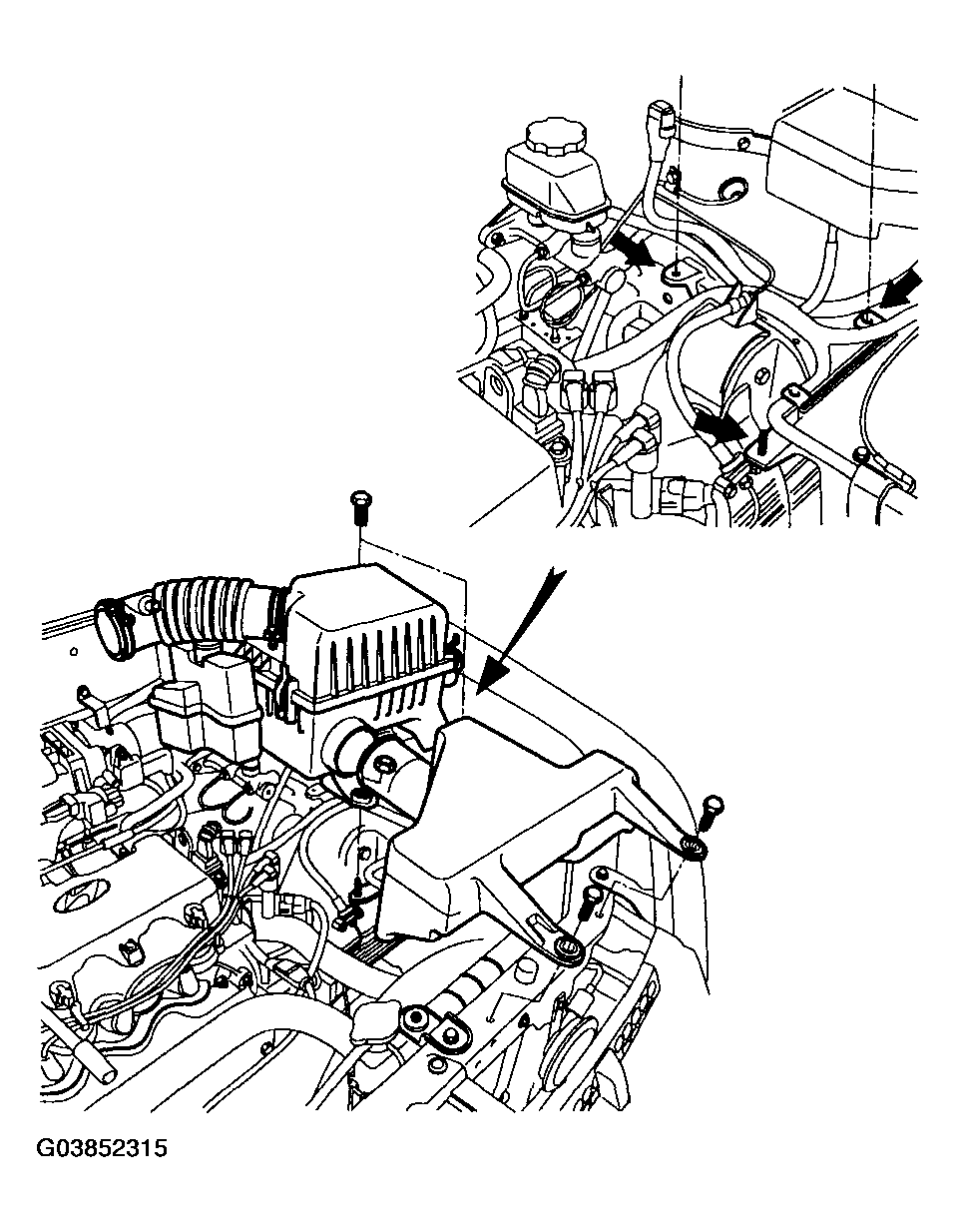

Removal the air cleaner.

Fig 2: Removing Air Cleaner
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle range switch connector.

Fig 3: Removing Transaxle Range Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the solenoid valve connector and the oil temperature sensor connector.

Fig 4: Removing Solenoid Valve Connector And Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR CO.

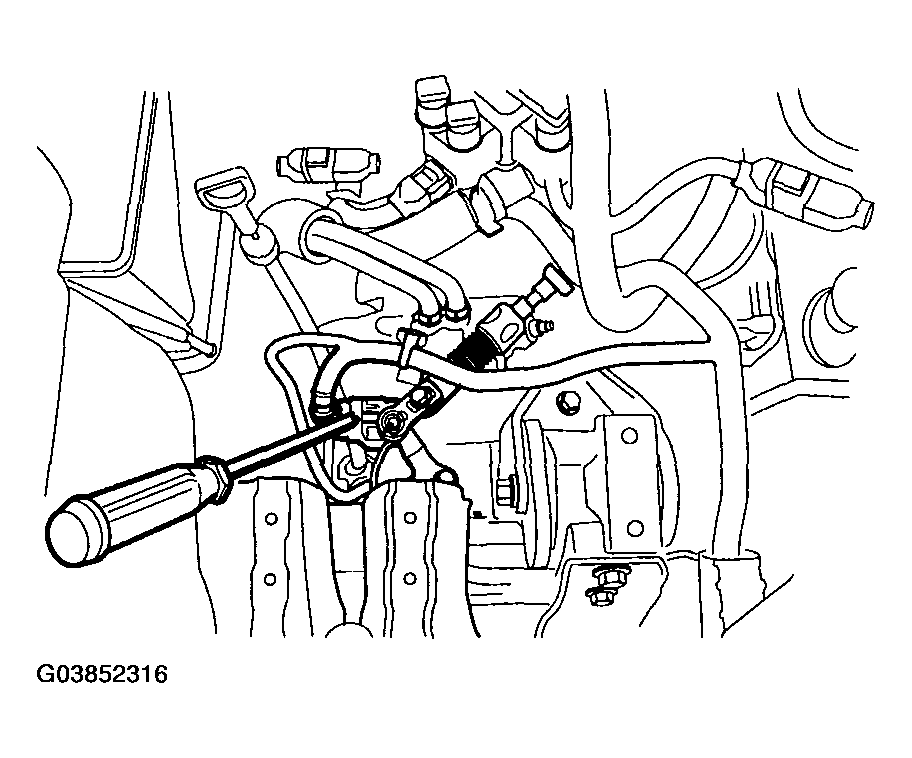

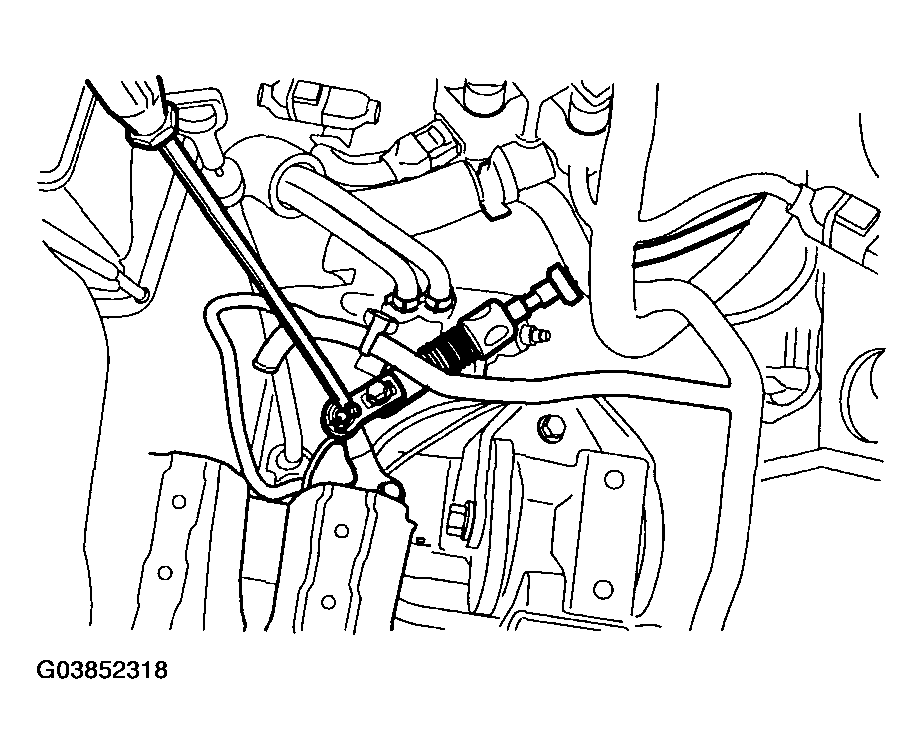

Remove the cotter pin of the control cable.

Fig 5: Removing Cotter Pin Of Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the oil filler tube.

Fig 6: Removing Oil Filler Tube
Courtesy of HYUNDAI MOTOR CO.

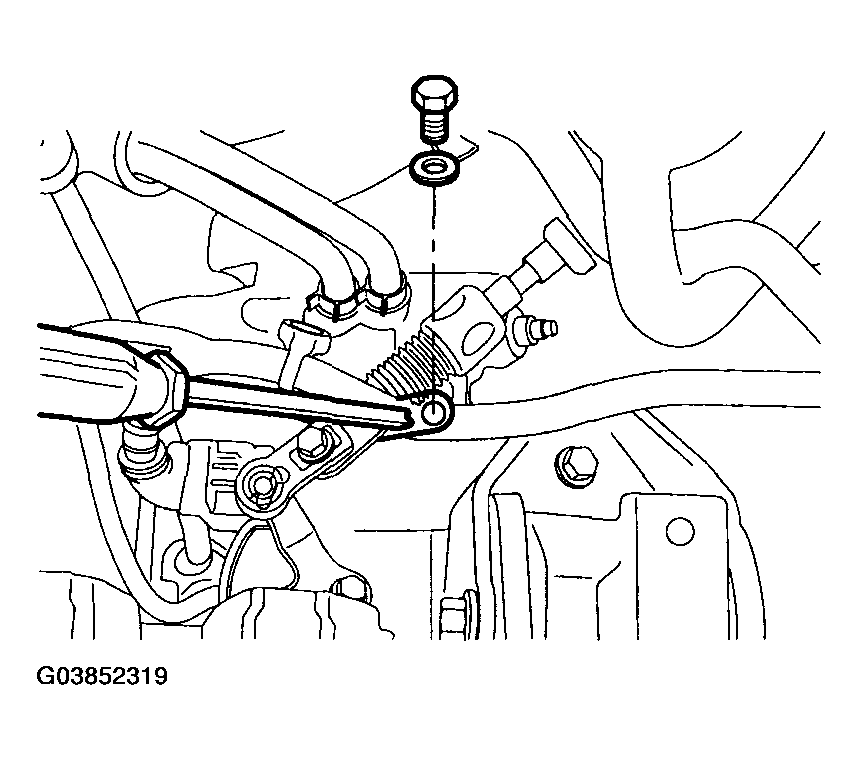

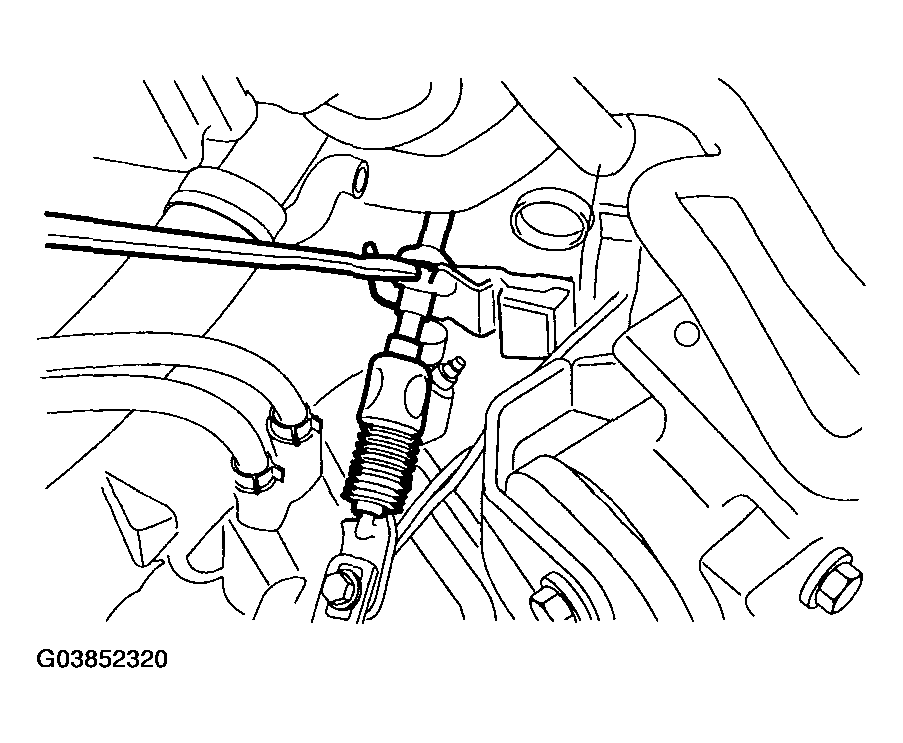

Remove the clip of the control cable.

Fig 7: Removing Clip Of Control Cable
Courtesy of HYUNDAI MOTOR CO.

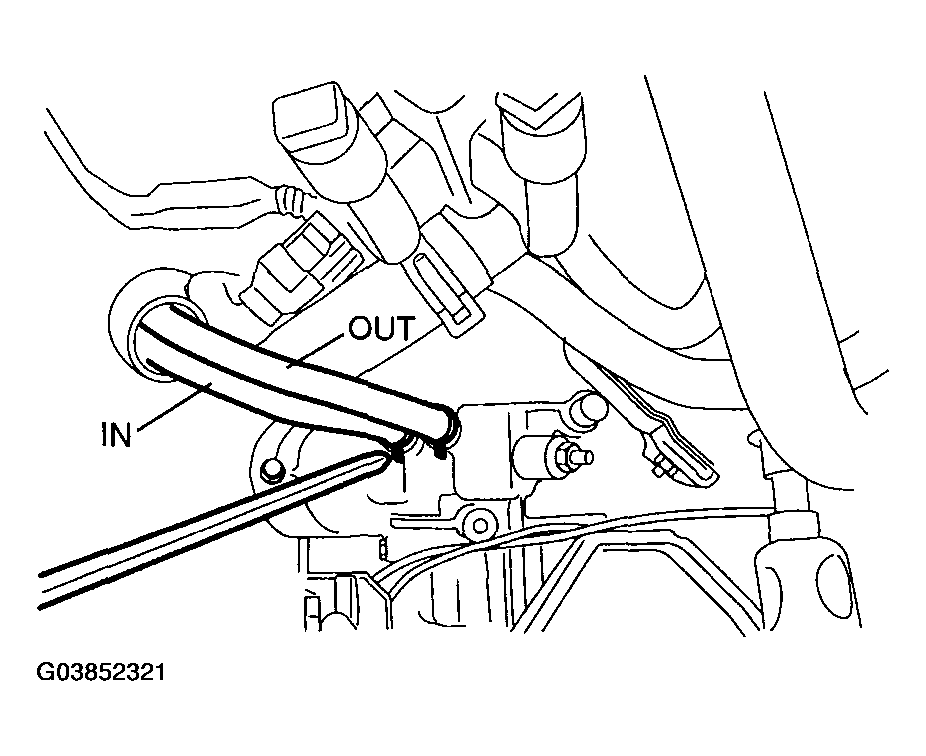

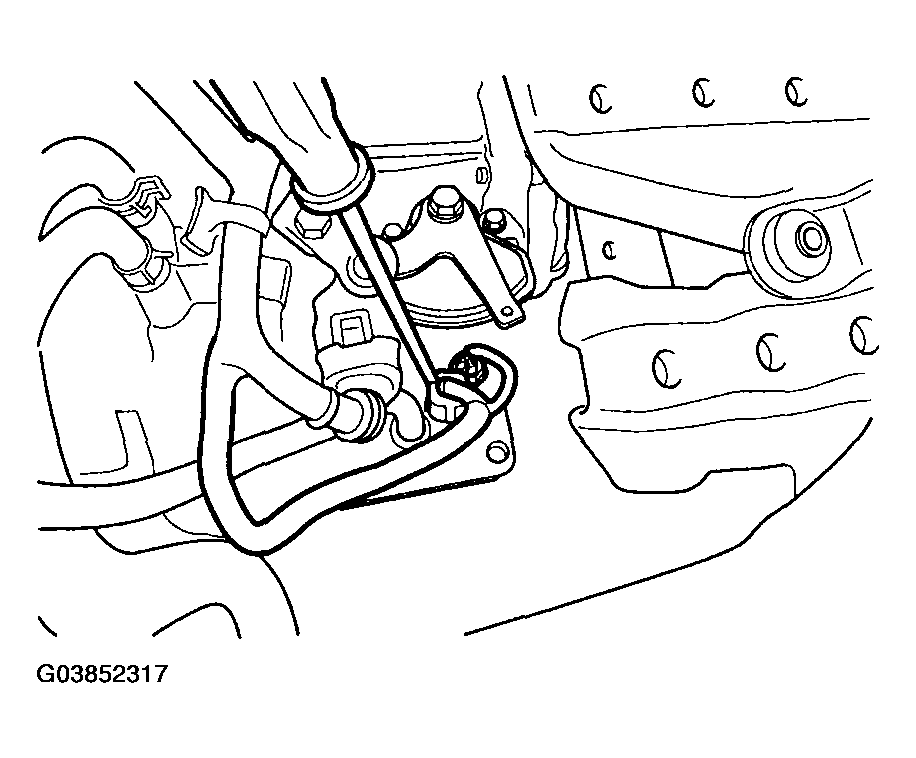

Remove the oil cooler hose

Fig 8: Removing Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.

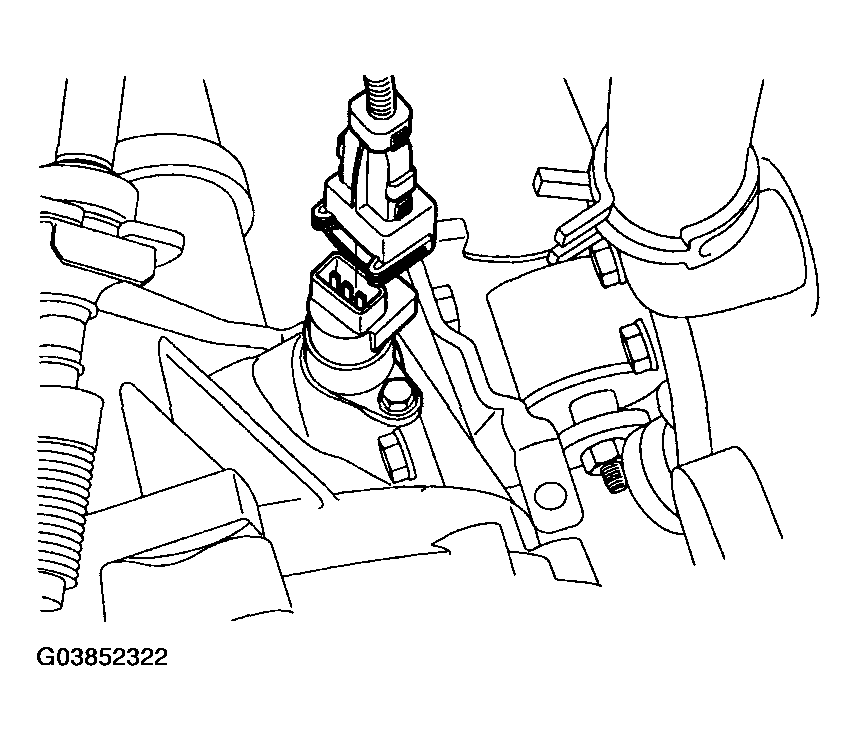

Remove the speedometer driven gear connector, (speed sensor connector)

Fig 9: Removing Speedometer Driven Gear Connector
Courtesy of HYUNDAI MOTOR CO.

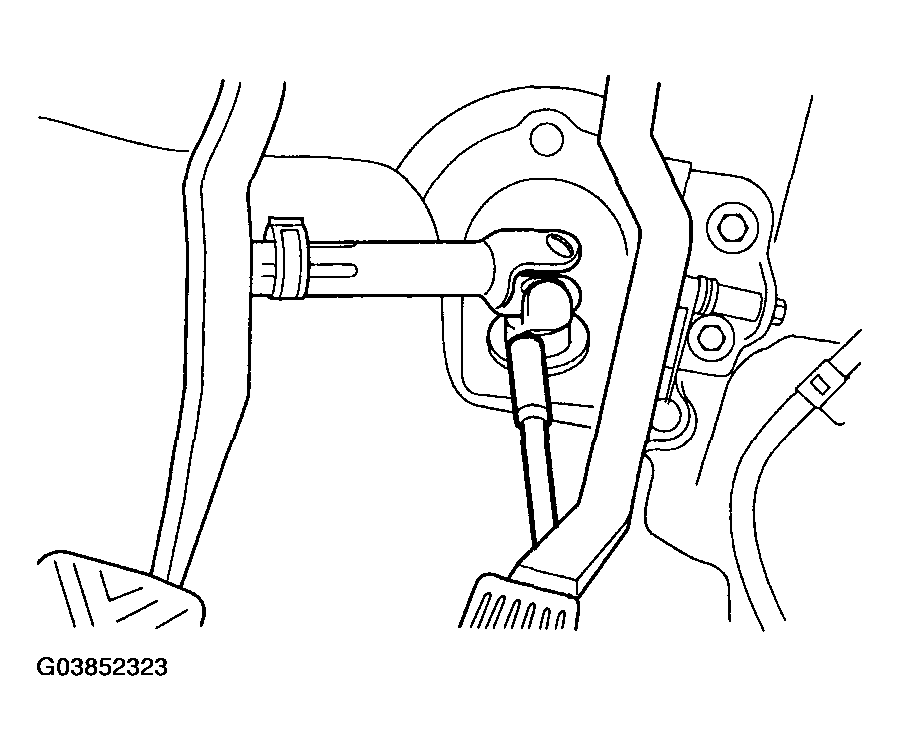

Remove the U-joint.

Fig 10: Removing U-Joint
Courtesy of HYUNDAI MOTOR CO.
Remove the power steering return hose.
Remove the tire.

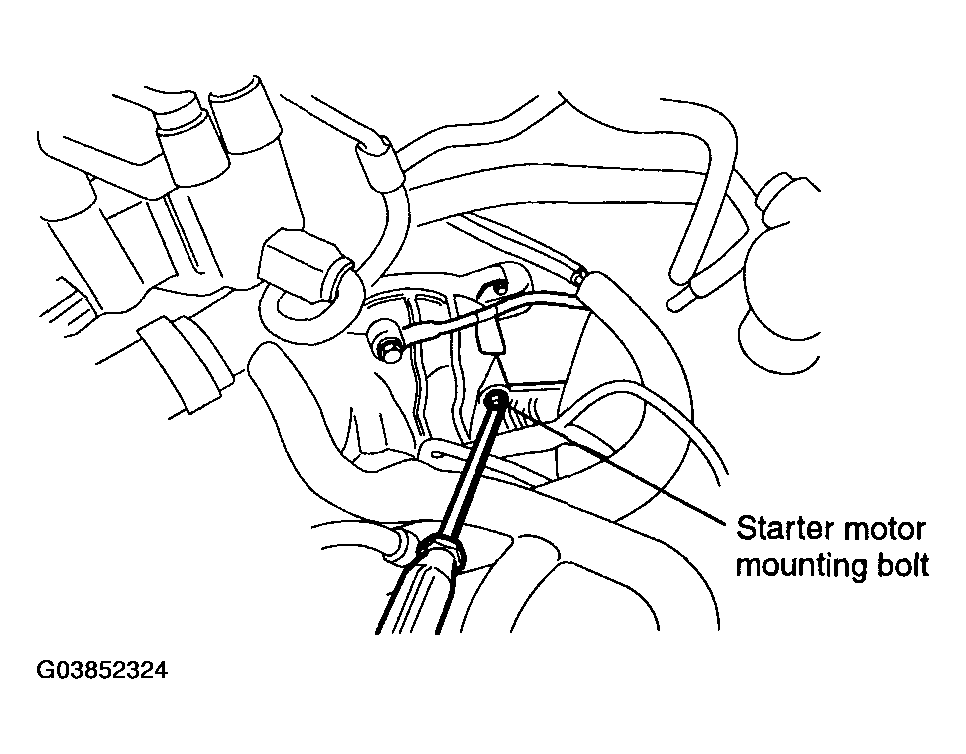

Remove the starter motor.

Fig 11: Removing Starter Motor
Courtesy of HYUNDAI MOTOR CO.

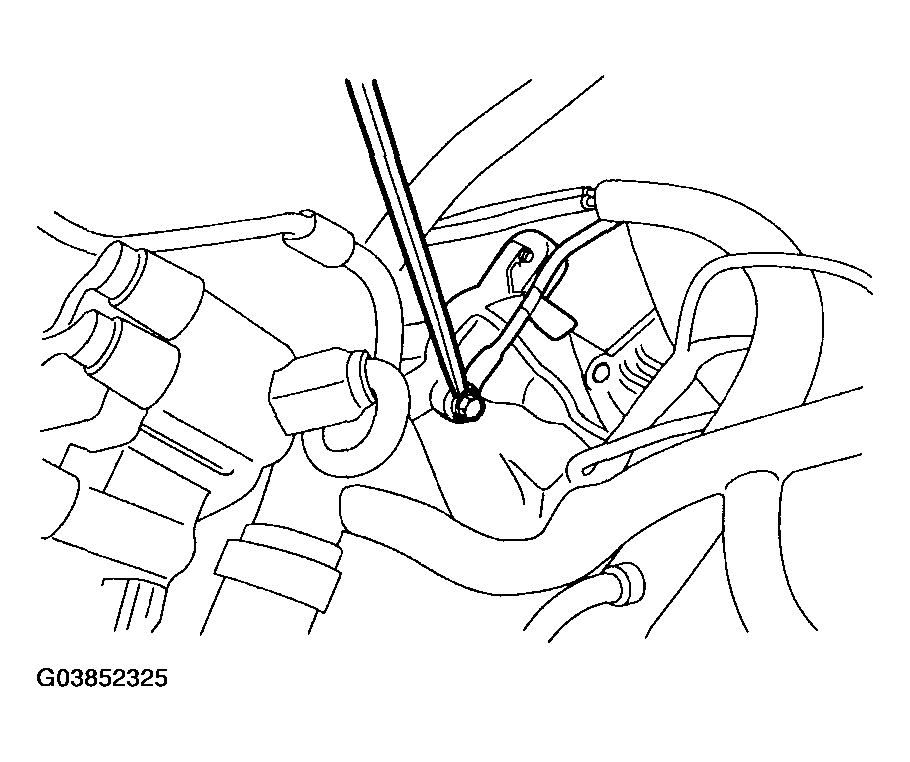

Remove the bolt for the upper connection of the engine and the transaxle.

Fig 12: Removing Bolt For Upper Connection Of Engine And Transaxle
Courtesy of HYUNDAI MOTOR CO.

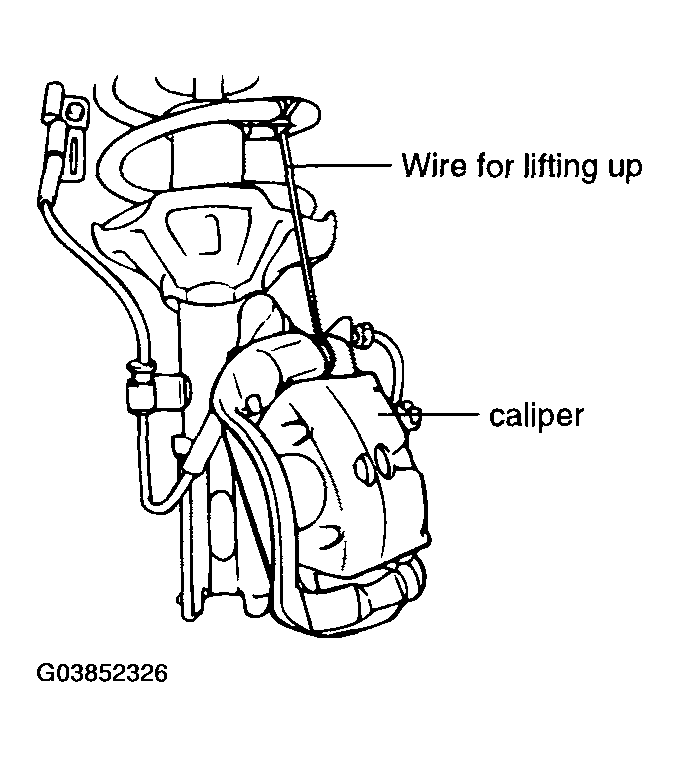

Remove the caliper after lifting up the vehicle.

Fig 13: Removing Caliper After Lifting Up Vehicle
Courtesy of HYUNDAI MOTOR CO.

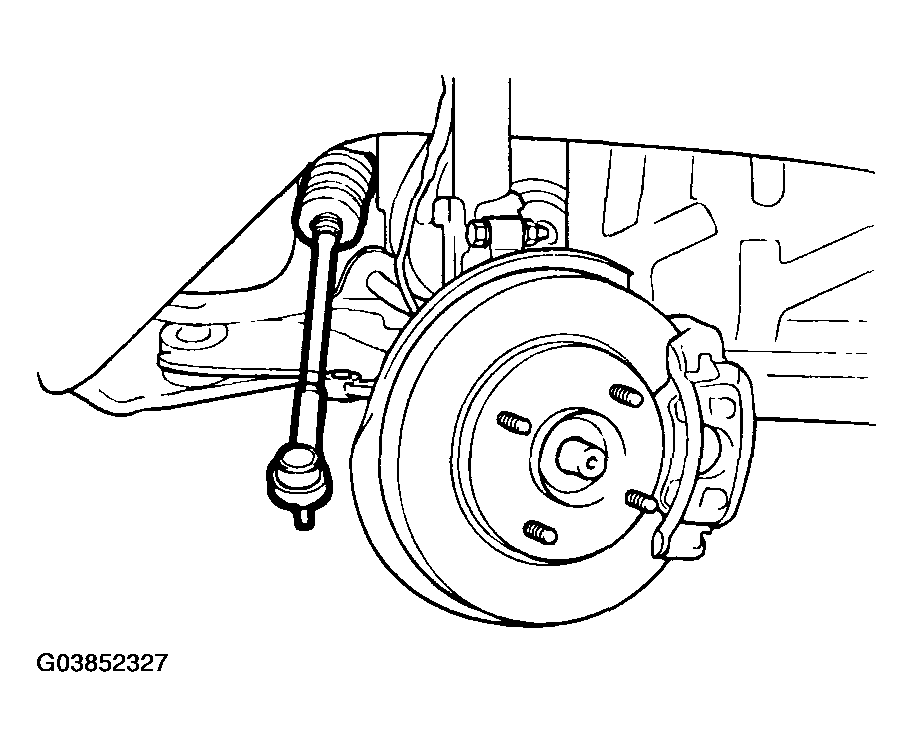

Separate the tie rod end from the pin and nut.

Fig 14: Separating Tie Rod End From Pin And Nut
Courtesy of HYUNDAI MOTOR CO.

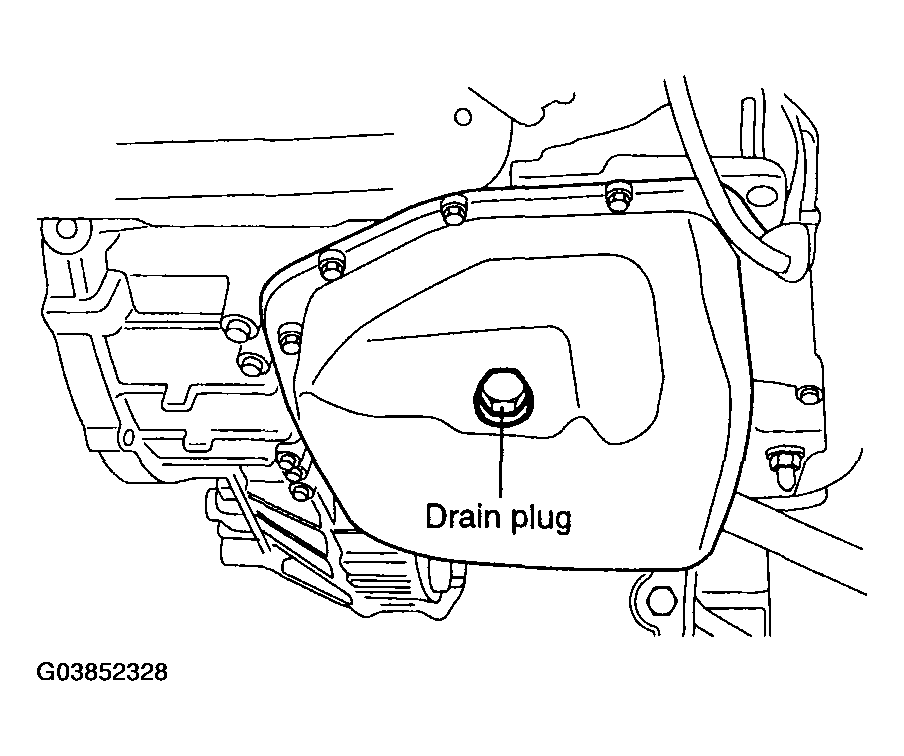

Remove the oil drain plug and drain the oil.

Fig 15: Removing Oil Drain Plug
Courtesy of HYUNDAI MOTOR CO.

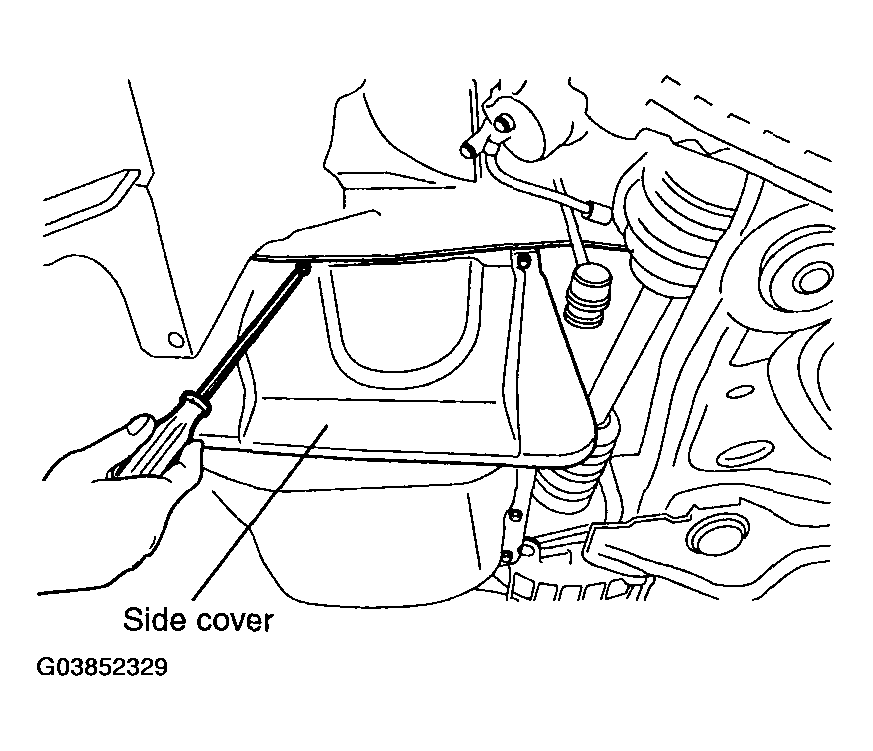

Remove the transaxle side cover.

Fig 16: Removing Transaxle Side Cover
Courtesy of HYUNDAI MOTOR CO.

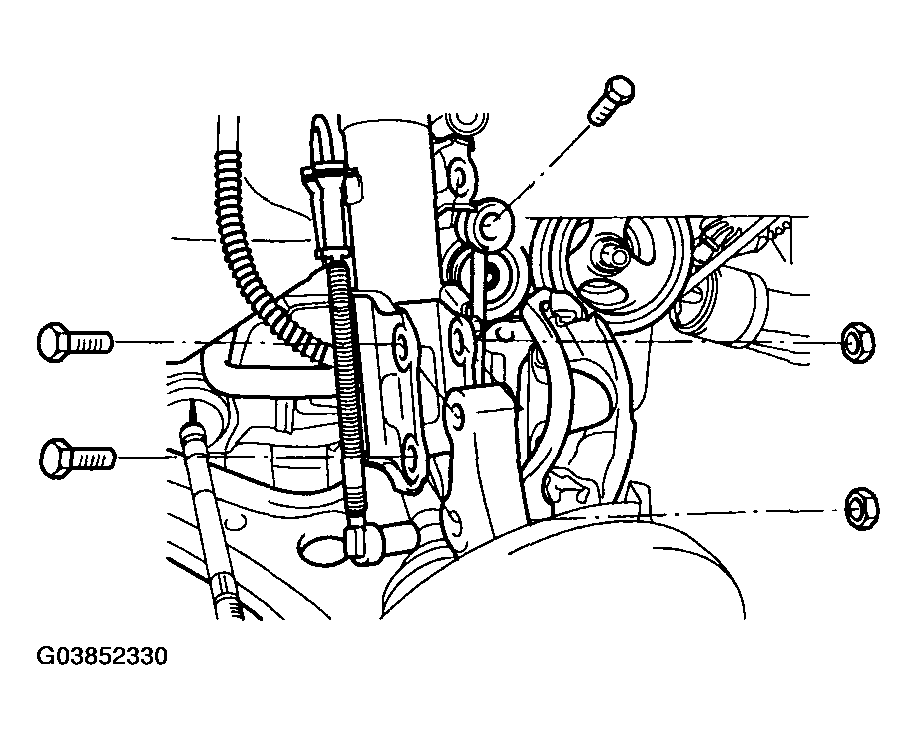

Remove the wheel speed sensor and the knuckle mounting bolt.

Fig 17: Removing Wheel Speed Sensor
Courtesy of HYUNDAI MOTOR CO.

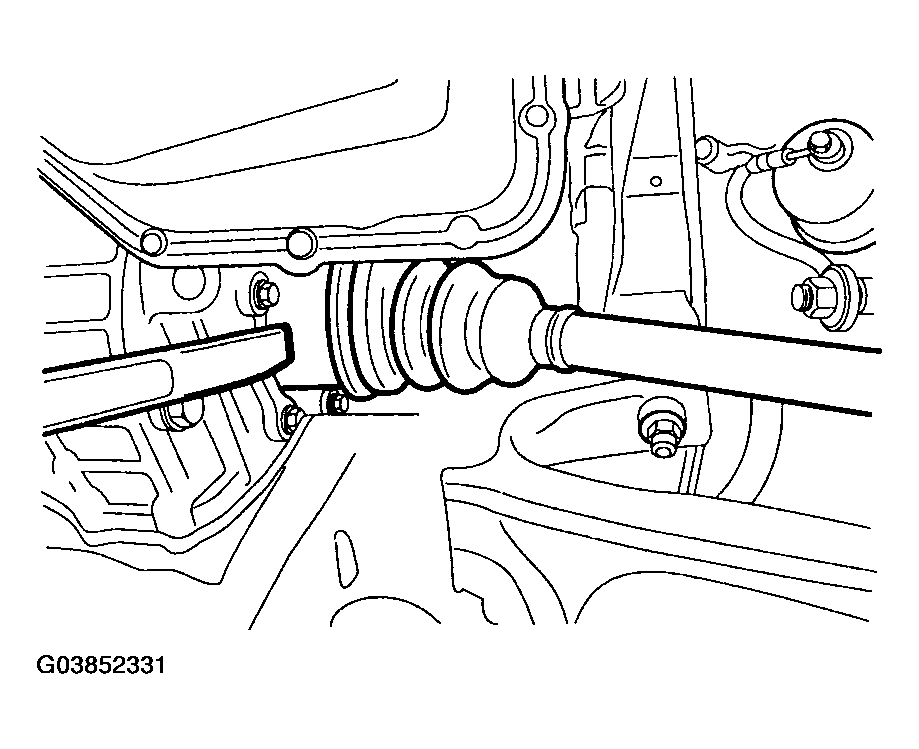

Remove the drive shaft and the left side hub nut.

Fig 18: Removing Drive Shaft
Courtesy of HYUNDAI MOTOR CO.

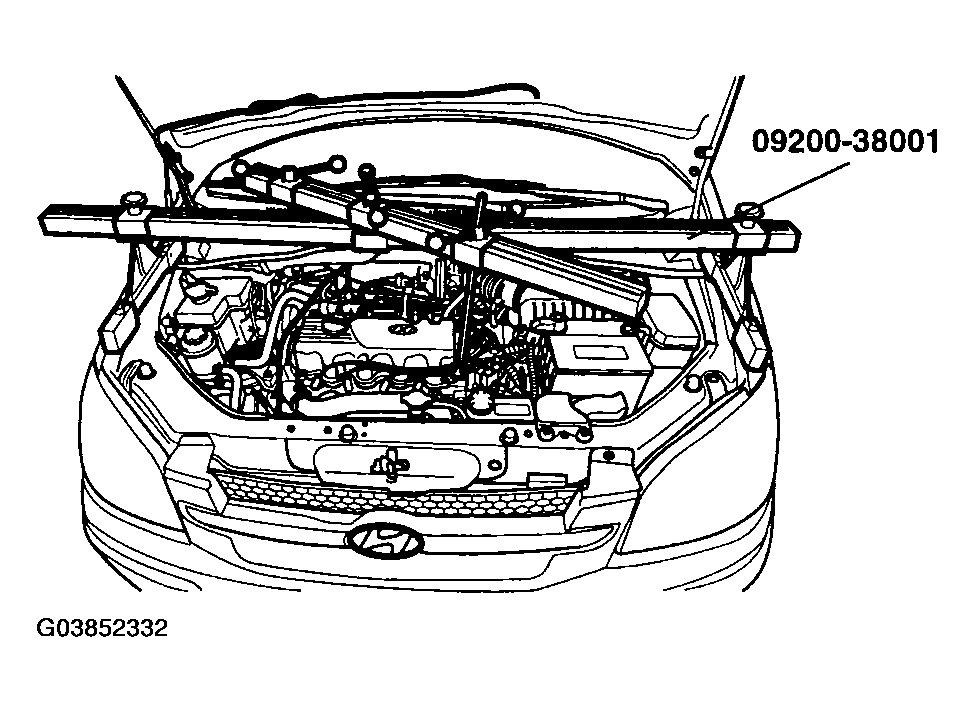

Install the special tool, the engine support fixture on the engine assembly.

Fig 19: Installing Special Tool To Engine Support Fixture
Courtesy of HYUNDAI MOTOR CO.

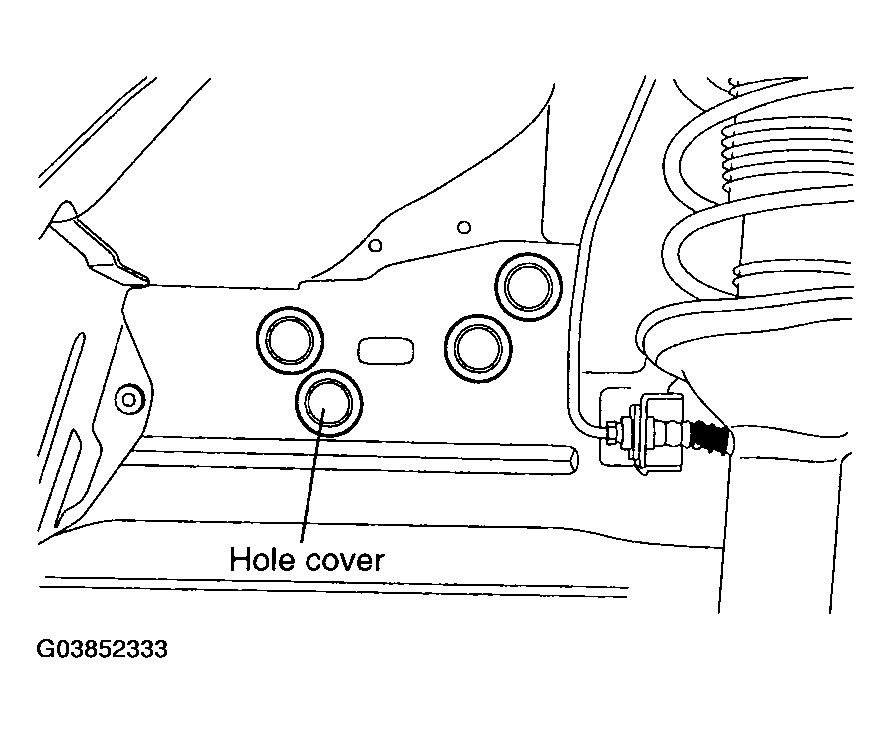

Remove the transaxle mounting bracket after removing the hole cover and the mounting bolts.

Fig 20: Removing Transaxle Mounting Bracket
Courtesy of HYUNDAI MOTOR CO.

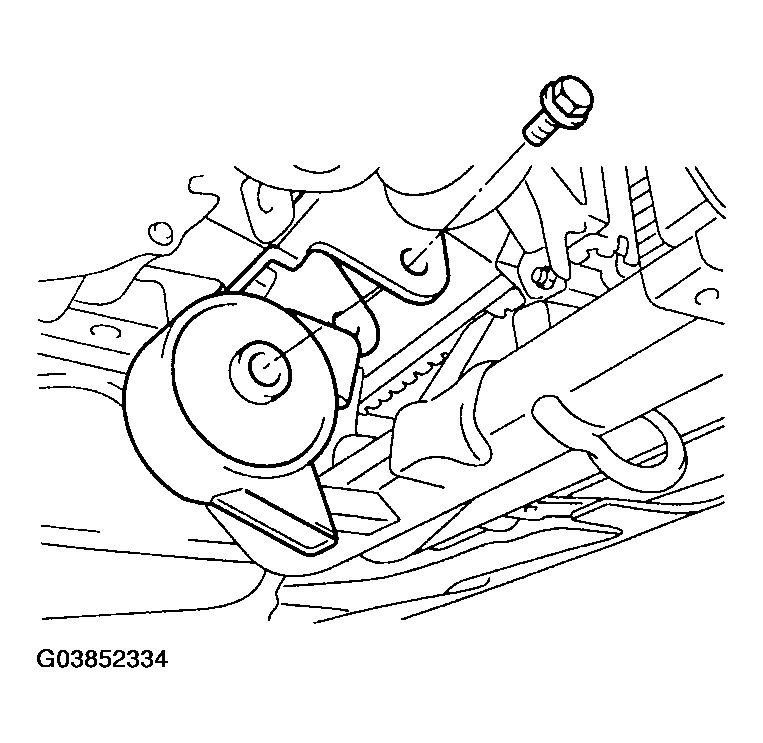

Remove the front roll stopper.

Fig 21: Removing Front Roll Stopper
Courtesy of HYUNDAI MOTOR CO.

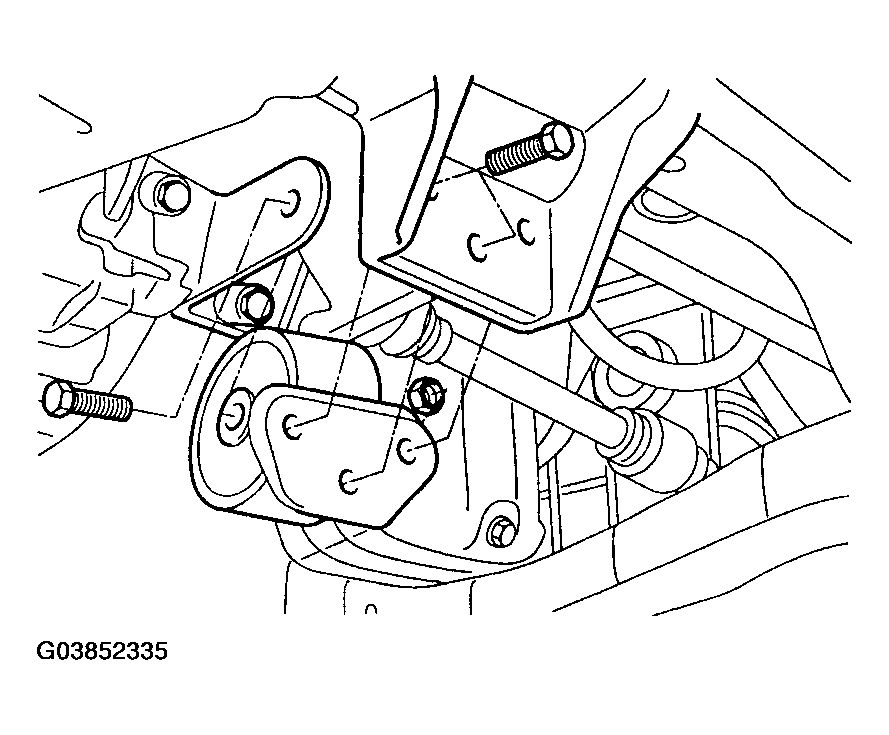

Remove the rear roll stopper.

Fig 22: Removing Rear Roll Stopper
Courtesy of HYUNDAI MOTOR CO.
Remove the front muffler.

Fig 23: Removing Front Muffler
Courtesy of HYUNDAI MOTOR CO.

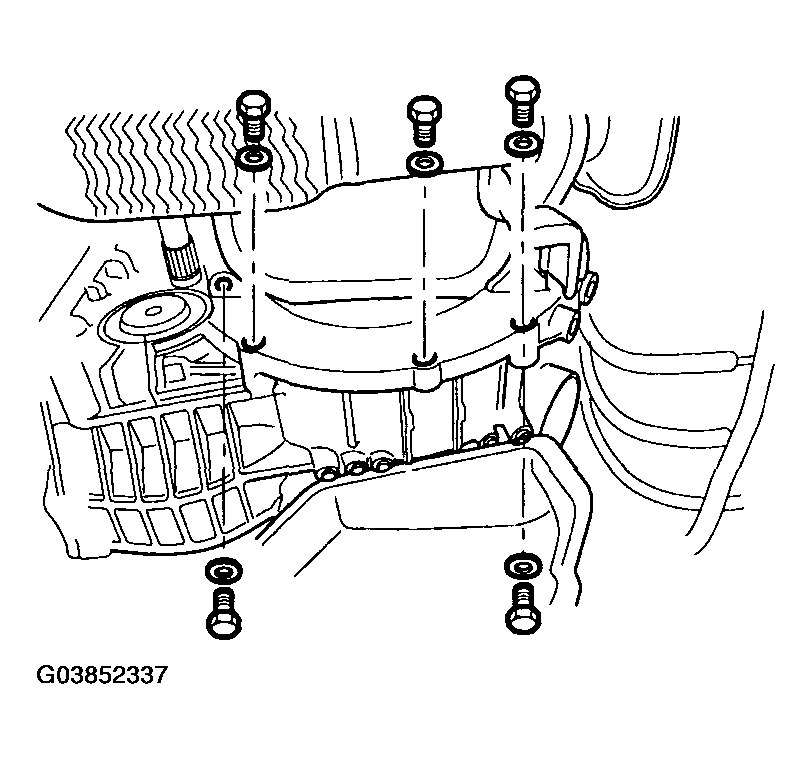

Remove the bell housing cover. (Bolts: 5EA)

Fig 24: Removing Bell Housing Cover
Courtesy of HYUNDAI MOTOR CO.

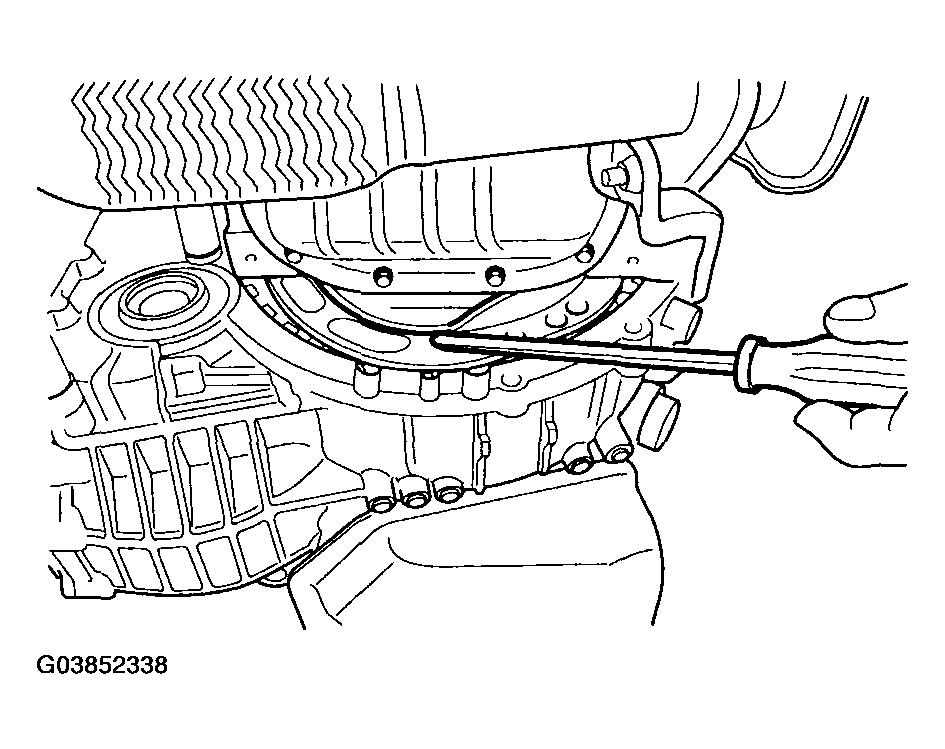

Remove the torque converter mounting plate bolts (3EA).

Fig 25: Removing Torque Converter Mounting Plate Bolts
Courtesy of HYUNDAI MOTOR CO.

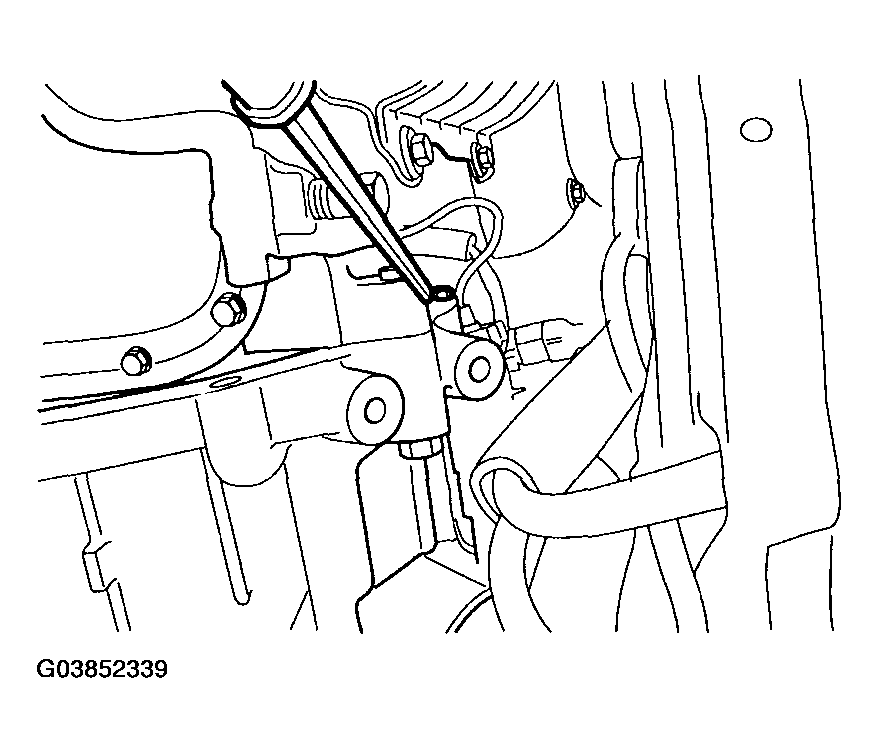

Remove the cylinder block plate bolt.

Fig 26: Removing Cylinder Block Plate Bolt
Courtesy of HYUNDAI MOTOR CO.

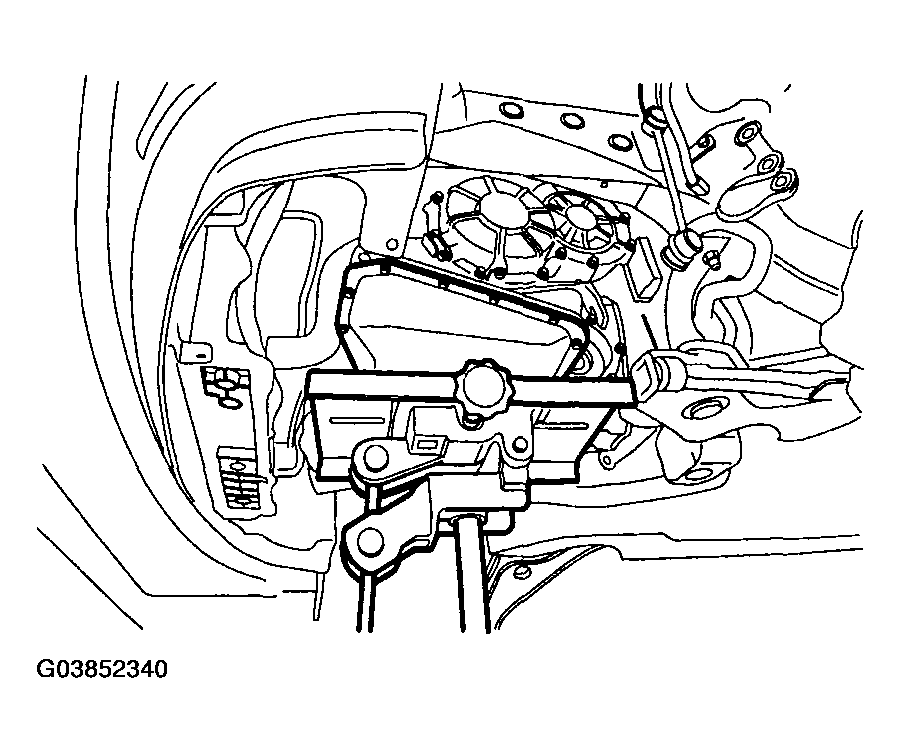

Install the jack for supporting transaxle.

Fig 27: Installing Jack For Supporting Transaxle
Courtesy of HYUNDAI MOTOR CO.
Remove the lower mounting bolts (2EA) of the transaxle.
Remove the sub frame.

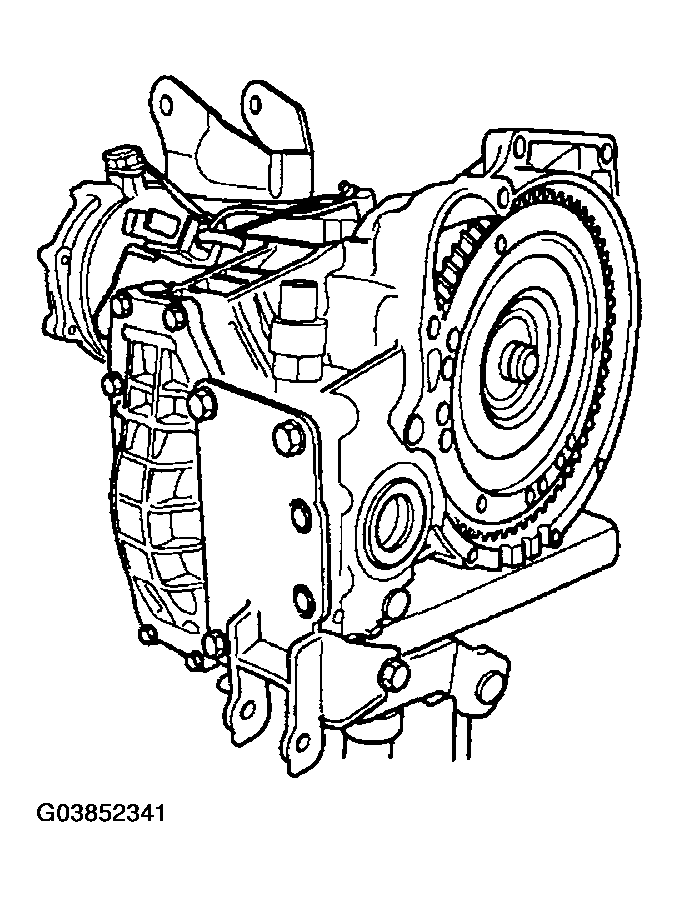

Remove the transaxle.

Fig 28: Removing Transaxle
Courtesy of HYUNDAI MOTOR CO.
