Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

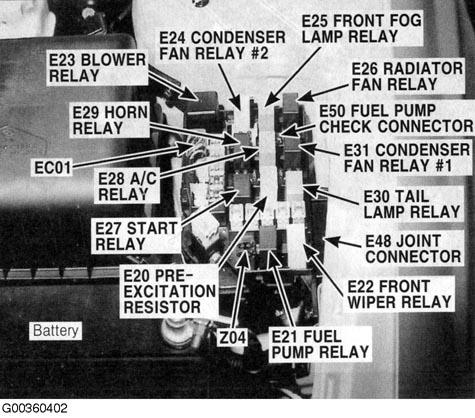

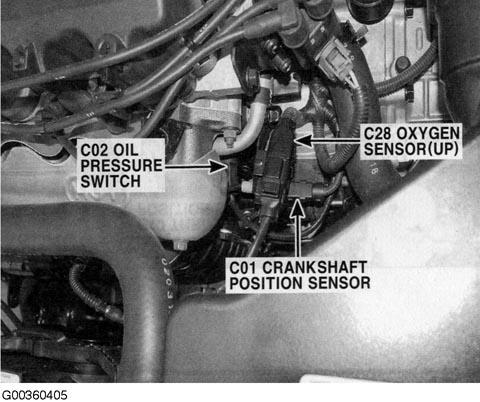

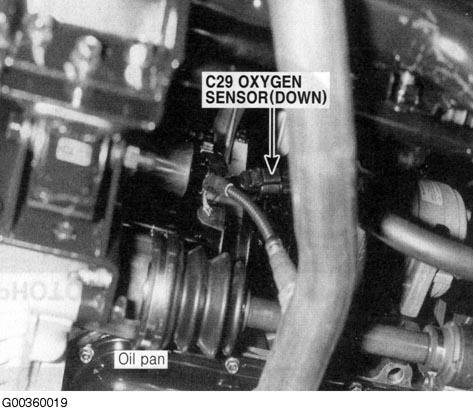

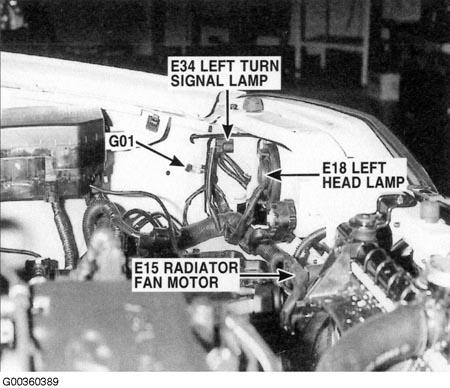

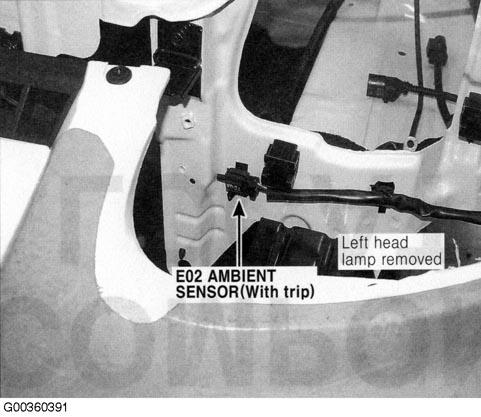

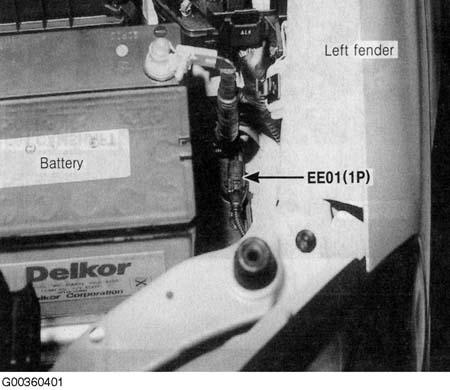

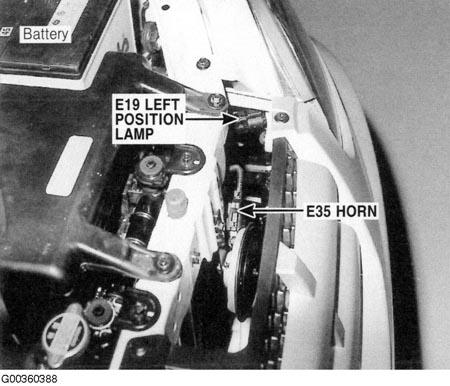

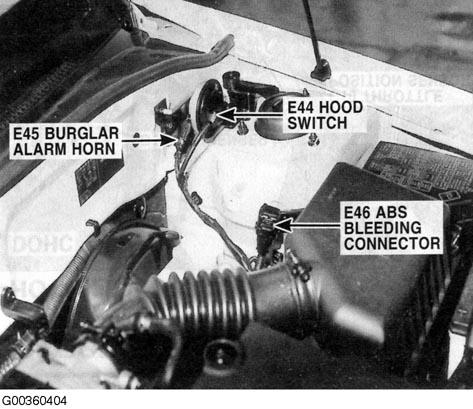

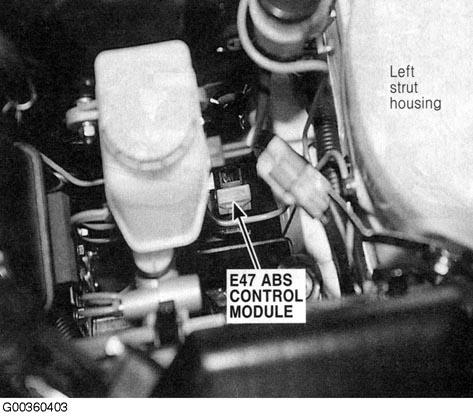

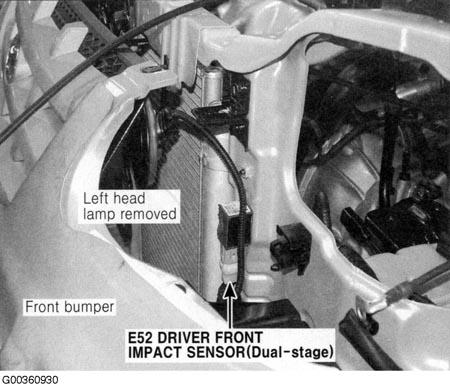

Fig 1: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 2: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

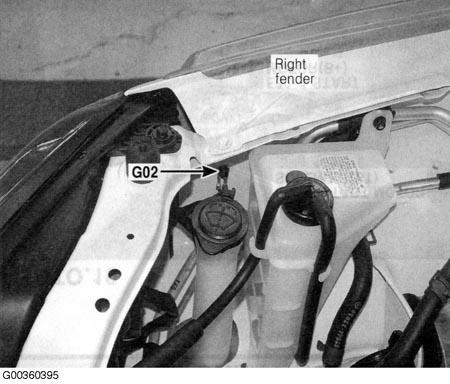

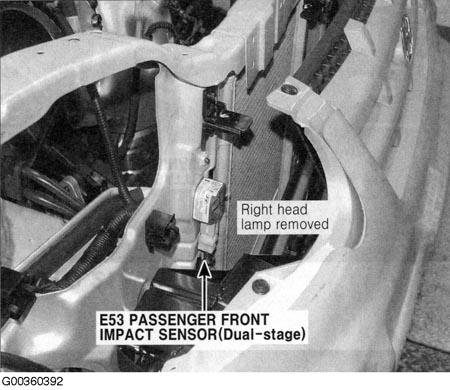

Fig 5: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

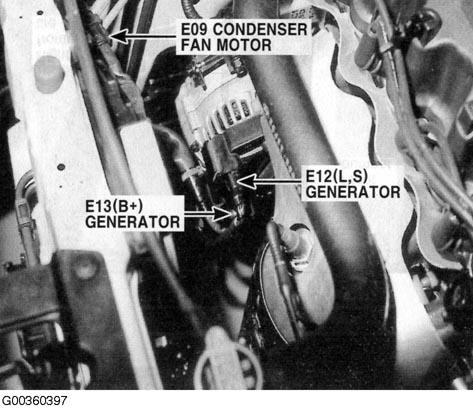

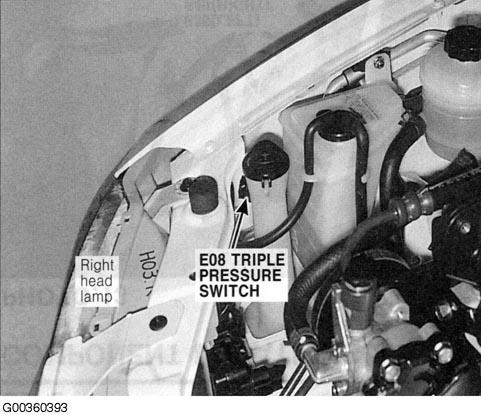

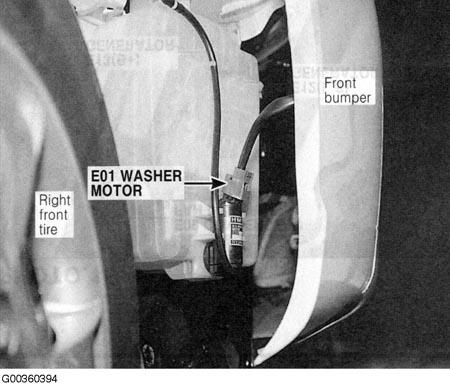

Fig 7: Behind Right Side Of Front Bumper
Courtesy of HYUNDAI MOTOR CO.

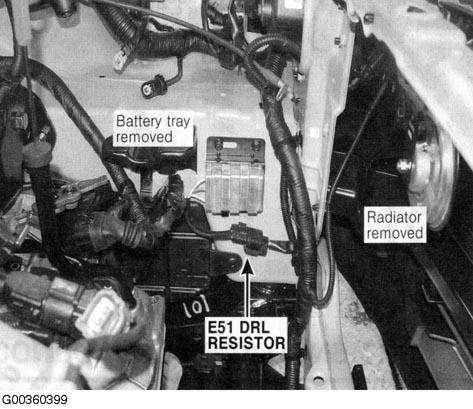

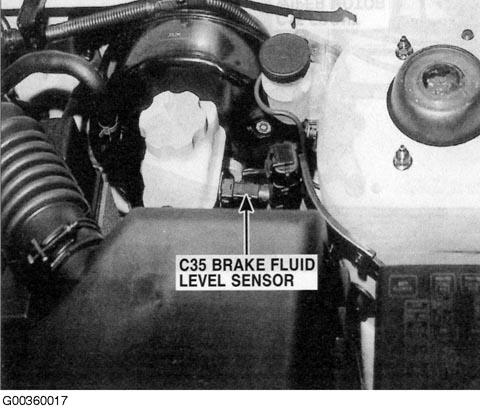

Fig 8: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

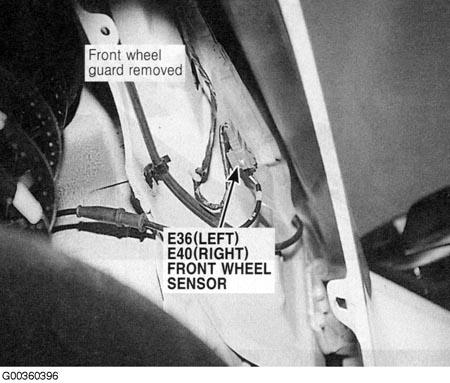

Fig 9: Left Front Wheel (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

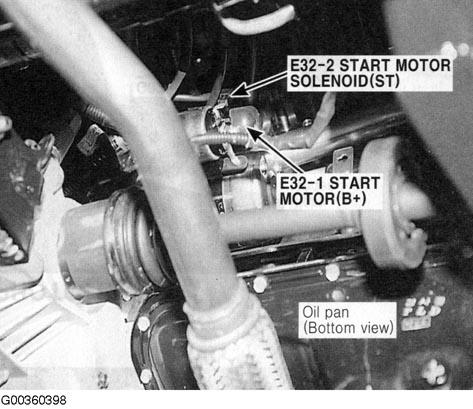

Fig 10: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

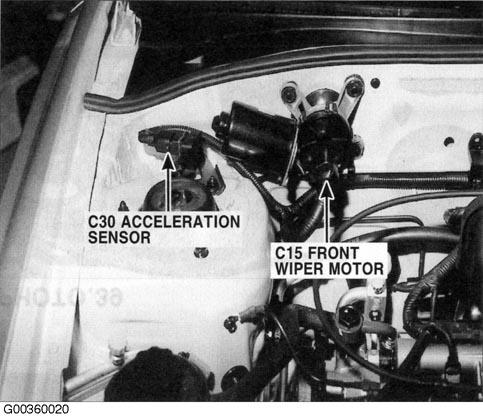

Fig 12: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

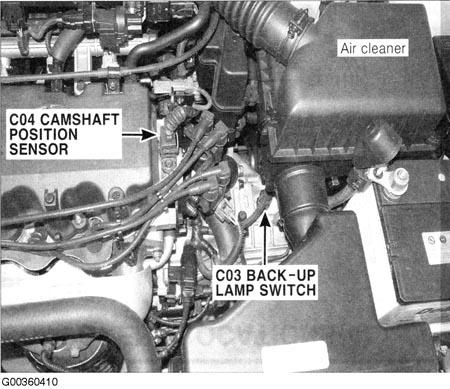

Fig 13: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

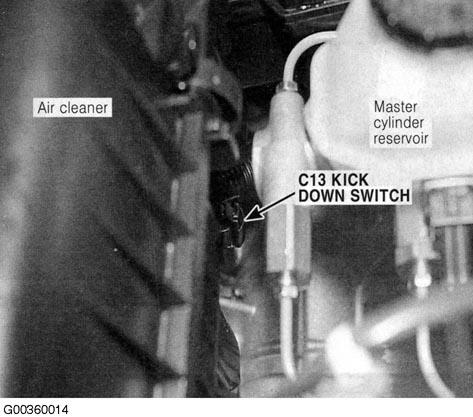

Fig 15: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 17: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

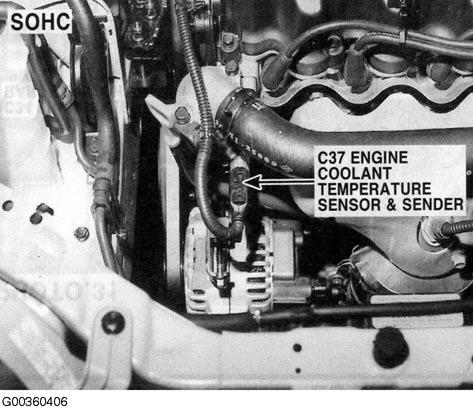

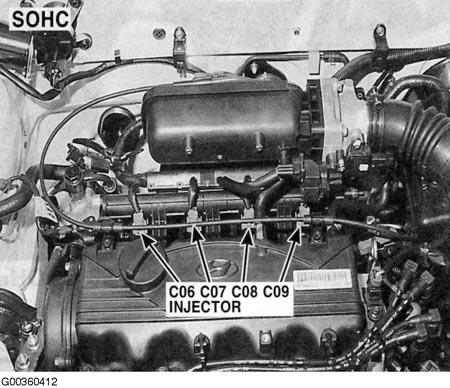

Fig 18: Engine (SOHC)
Courtesy of HYUNDAI MOTOR CO.

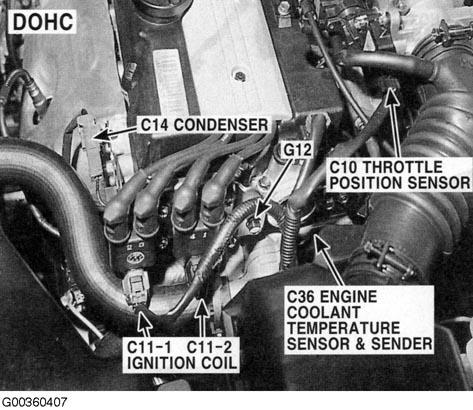

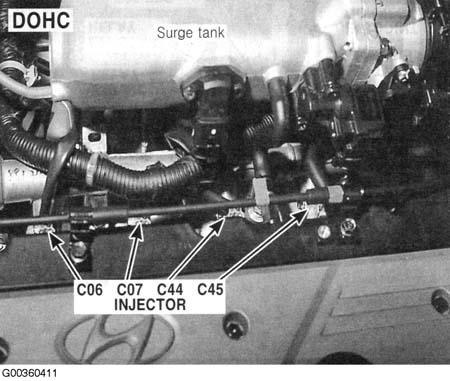

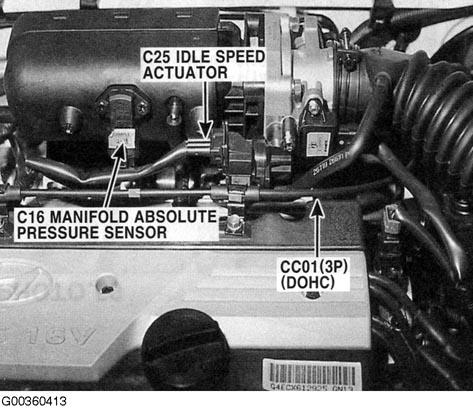

Fig 19: Engine (DOHC)
Courtesy of HYUNDAI MOTOR CO.

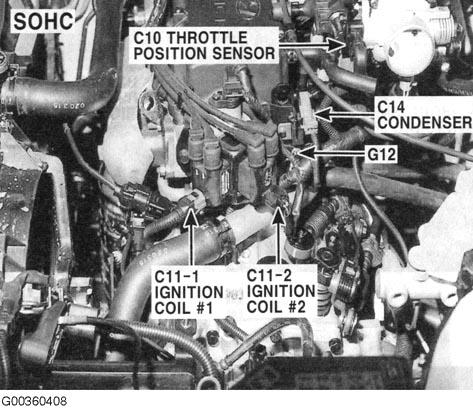

Fig 20: Engine (SOHC)
Courtesy of HYUNDAI MOTOR CO.

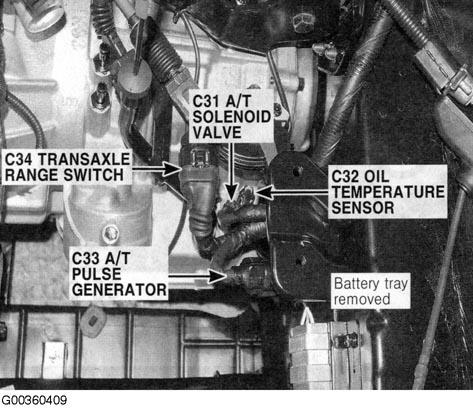

Fig 21: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 22: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Engine (DOHC)
Courtesy of HYUNDAI MOTOR CO.
Fig 24: Engine (SOHC)
Courtesy of HYUNDAI MOTOR CO.
Fig 25: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

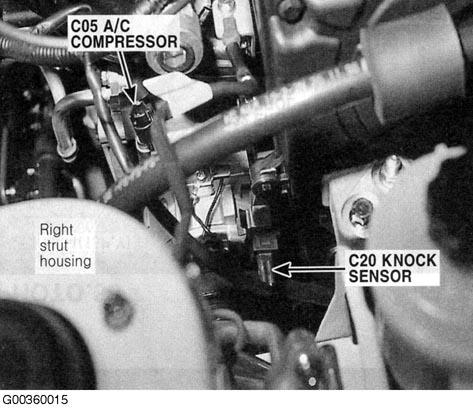

Fig 27: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

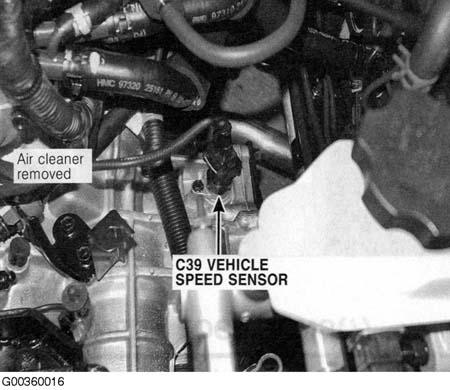

Fig 28: Top Of Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 29: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

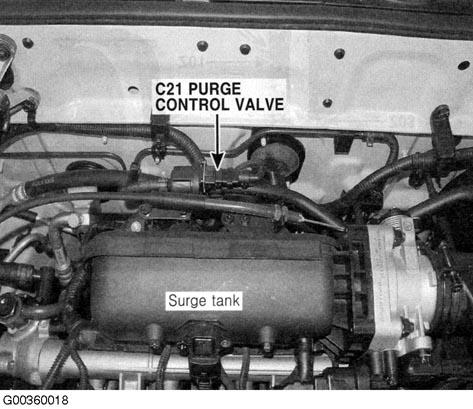

Fig 30: Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 31: Exhaust
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

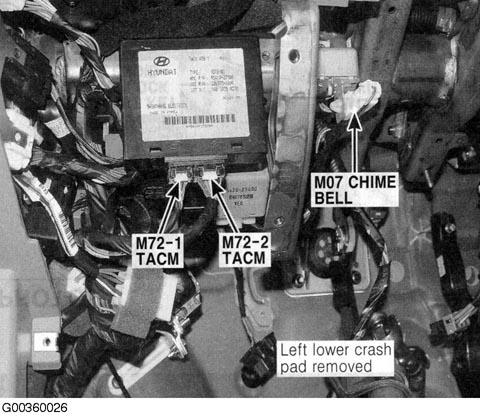

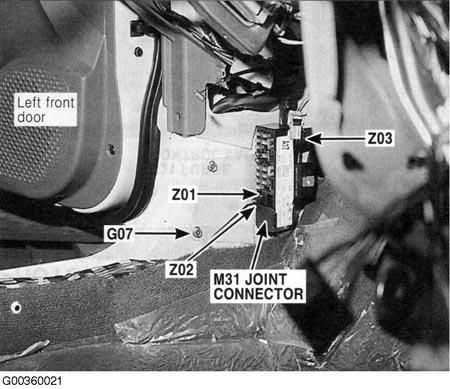

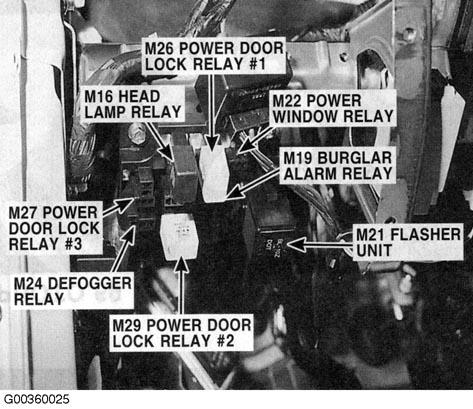

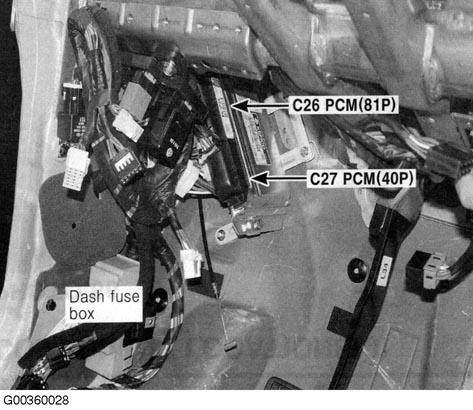

Fig 33: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 35: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.

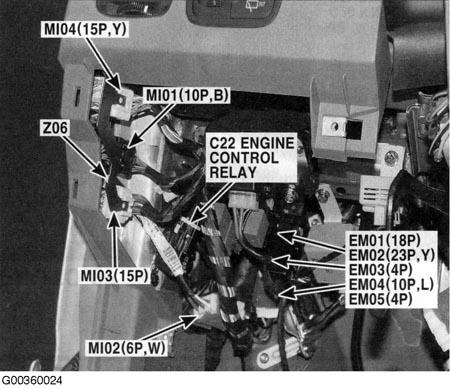

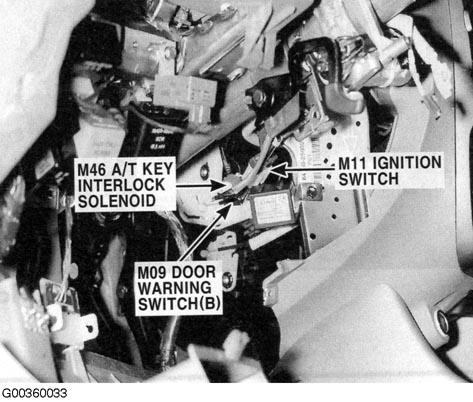

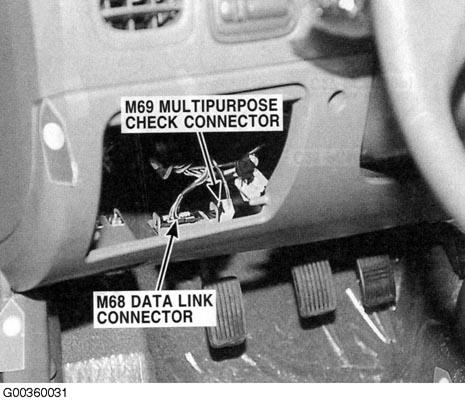

Fig 36: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

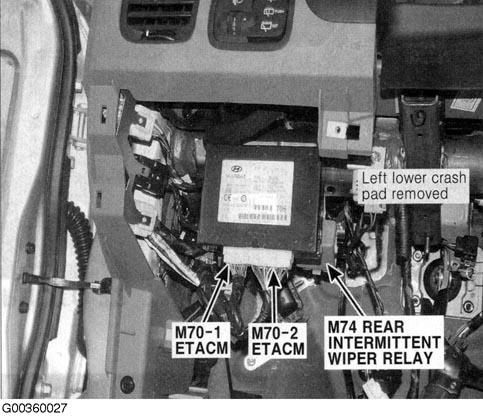

Fig 37: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 38: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 39: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

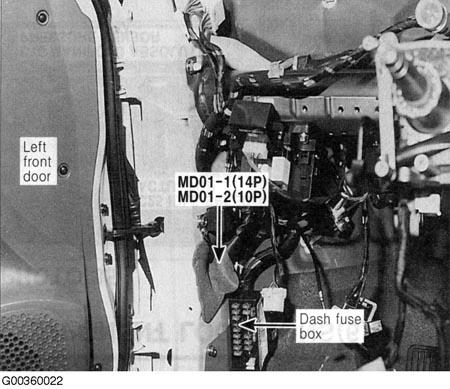

Fig 40: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 41: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 42: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

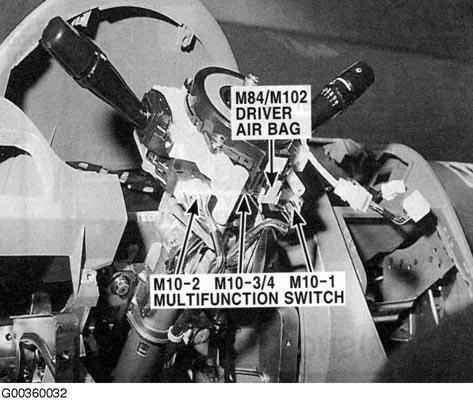

Fig 44: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Steering Column
Courtesy of HYUNDAI MOTOR CO.

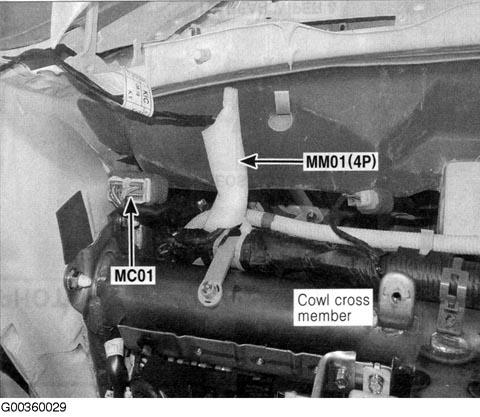

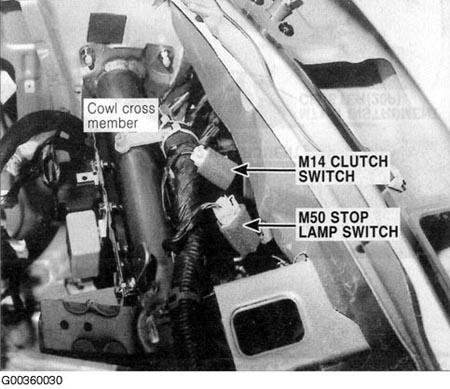

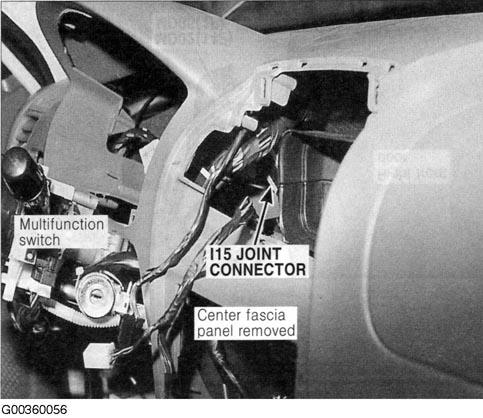

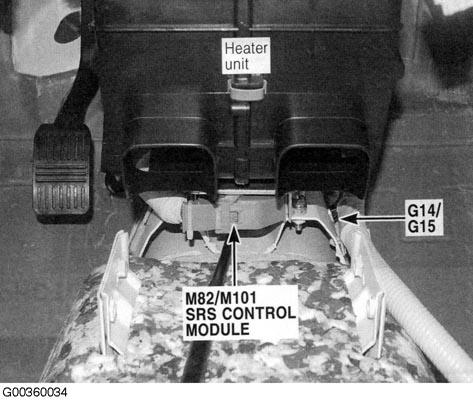

Fig 46: Under Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

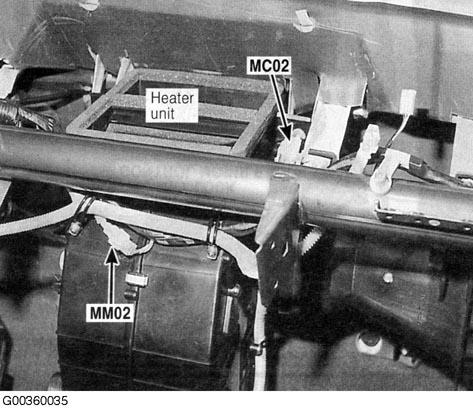

Fig 47: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 48: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

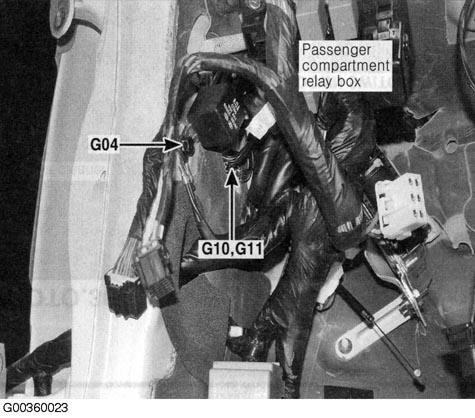

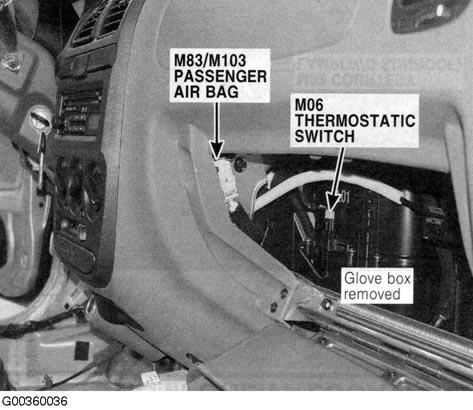

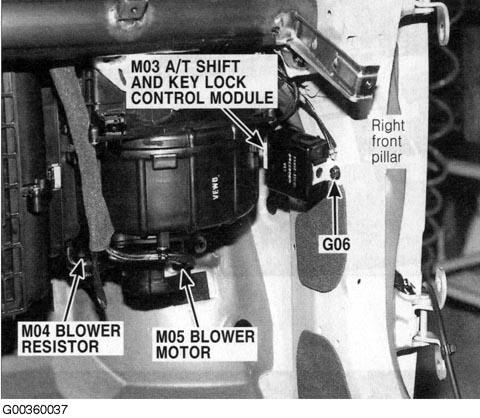

Fig 49: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

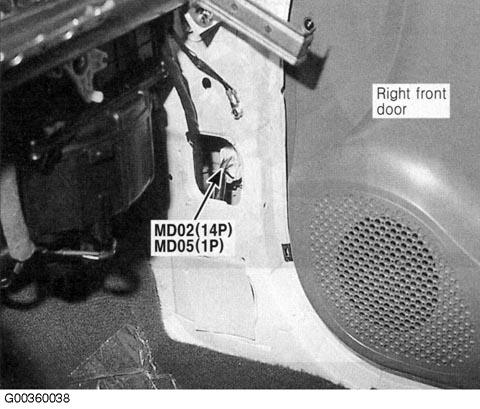

Fig 50: Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.

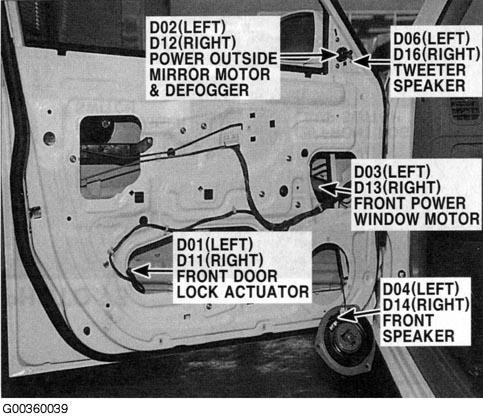

Fig 51: Left Front Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

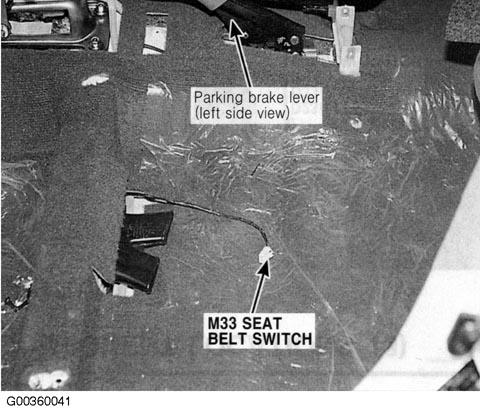

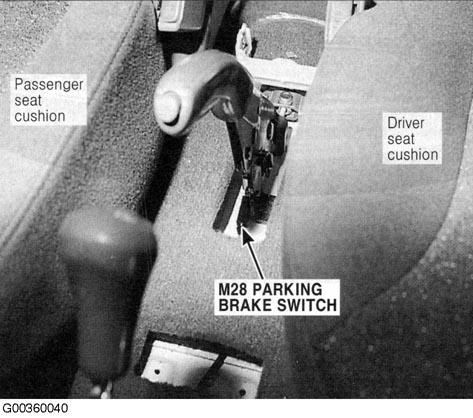

Fig 52: Base Of Parking Brake Lever
Courtesy of HYUNDAI MOTOR CO.
Fig 53: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.

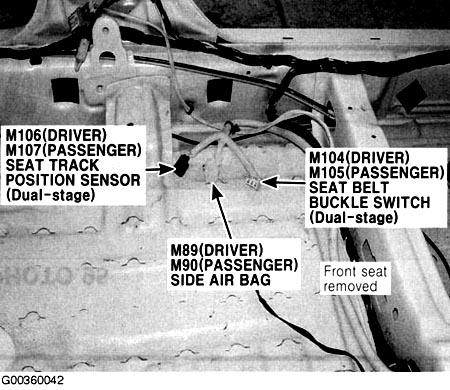

Fig 54: Under Driver Seat (Passenger Seat Similar)
Courtesy of HYUNDAI MOTOR CO.

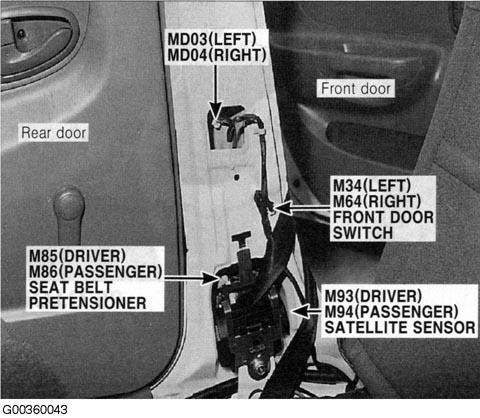

Fig 55: Left "B" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

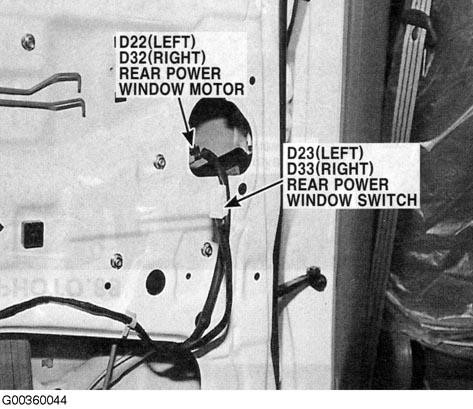

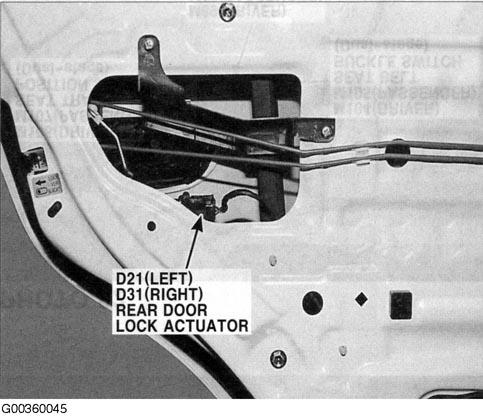

Fig 56: Left Rear Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 57: Left Rear Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

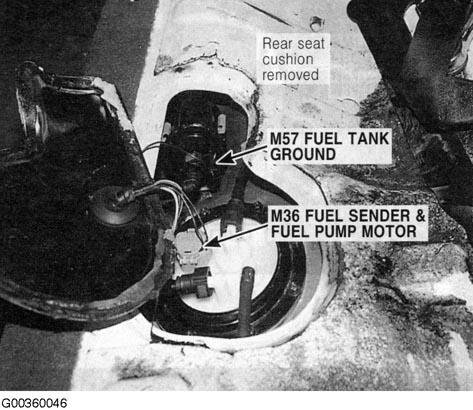

Fig 58: Top Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.

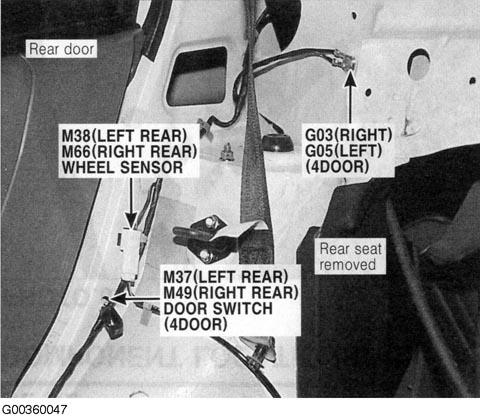

Fig 59: Left "C" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

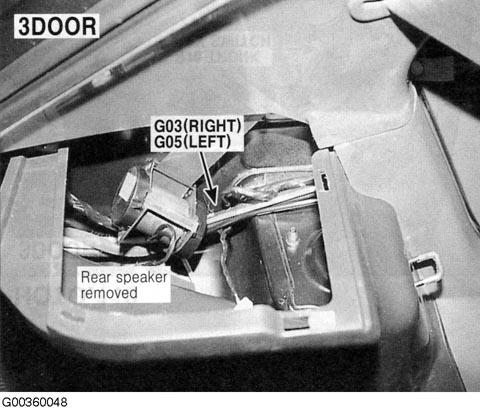

Fig 60: Left "C" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

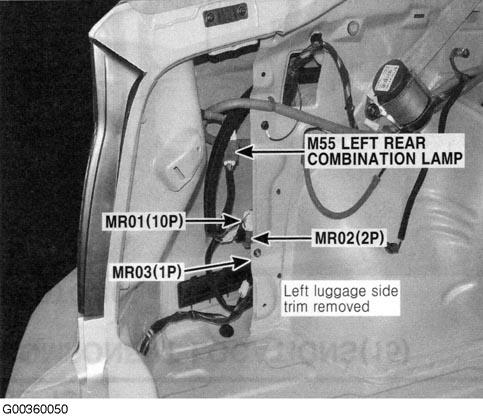

Fig 61: Left Side Of Trunk
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Left Side Of Trunk
Courtesy of HYUNDAI MOTOR CO.
Fig 63: Center Of Tail Gate
Courtesy of HYUNDAI MOTOR CO.

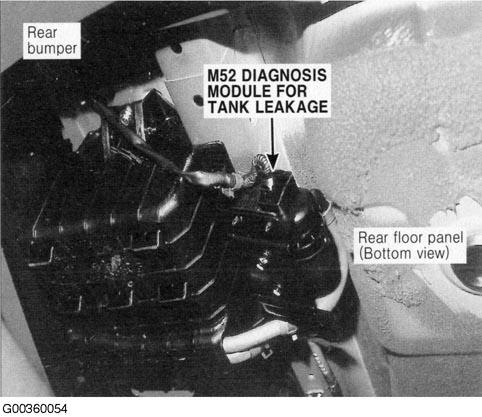

Fig 64: Under Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

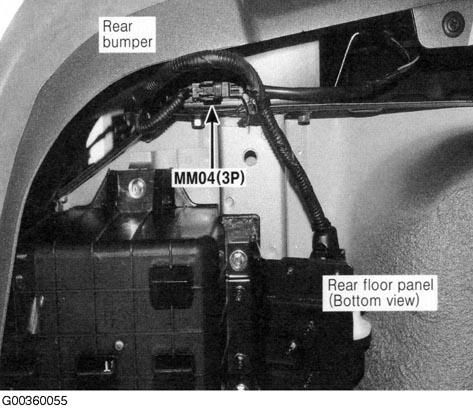

Fig 65: Behind Rear Bumper
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

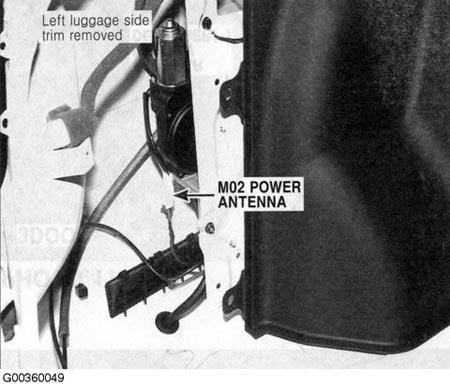

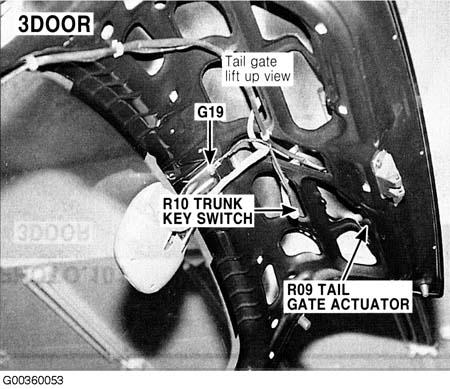

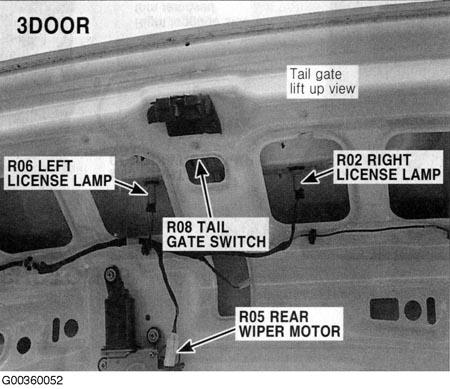

Fig 67: Tail Gate
Courtesy of HYUNDAI MOTOR CO.
