Camshaft Position Sensor

  1. Disconnect the camshaft position sensor connector.
  2. Remove the camshaft position sensor (B).

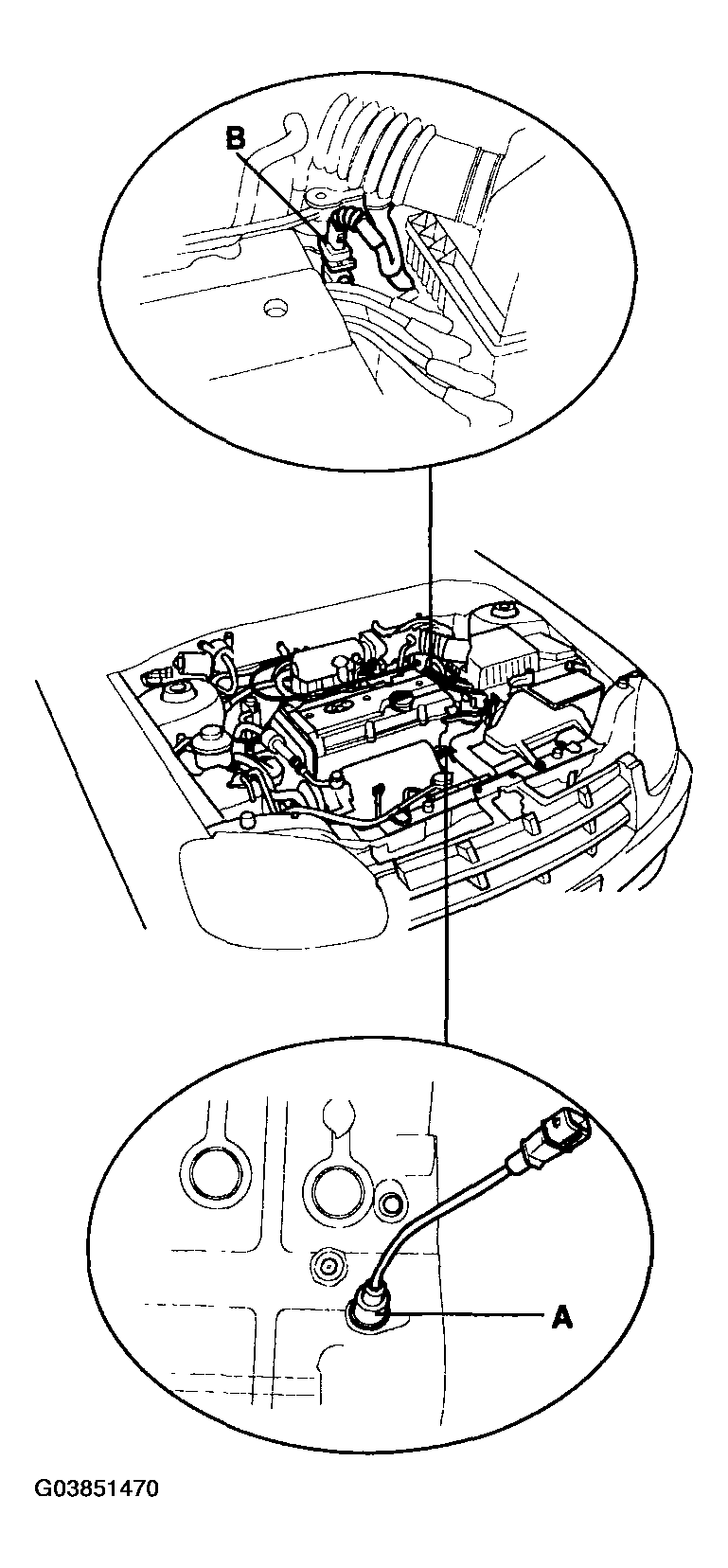

    Fig 1: Removing Camshaft Position Sensor/Crankshaft Position Sensor
    G03851470Courtesy of HYUNDAI MOTOR CO.
