Charging System: Generator: Replacement

  1. Disconnect the battery negative terminal first, then the positive terminal.
  2. Disconnect the generator connector (A) and "B" terminal cable (B) from the generator (C).
    Fig 1: Disconnecting Generator Connector And Terminal Cable From Generator
    G03851480Courtesy of HYUNDAI MOTOR CO.
  3. Remove the adjusting bolt (A) and mounting bolt (B), then remove the generator belt (C).

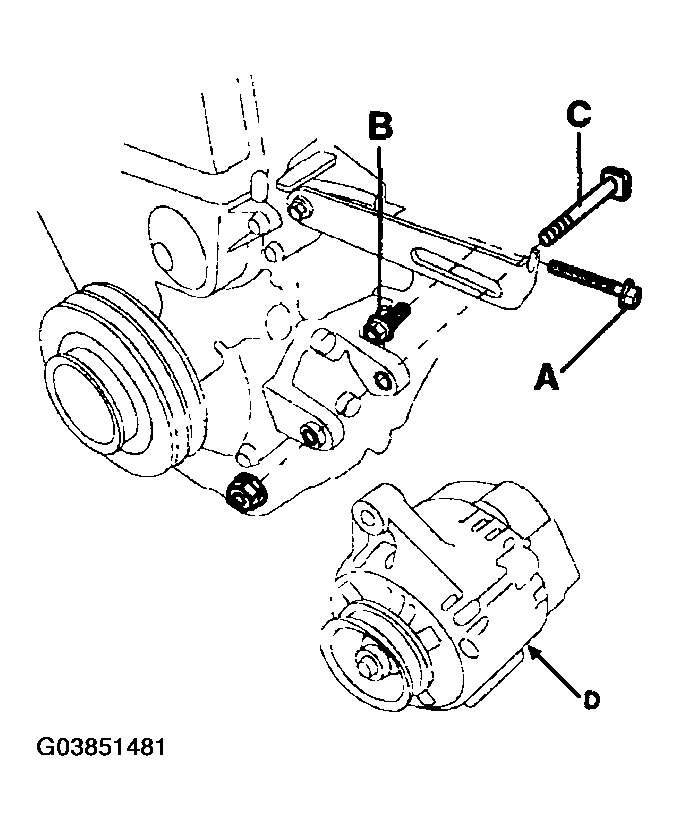

    4. Fig 2: Removing Adjusting Bolt, Mounting Bolt And Generator Belt
    G03851481Courtesy of HYUNDAI MOTOR CO.
  4. Pull out the through bolt (C), then remove the generator (D).
  5. Installation is the reverse of removal.
  6. Adjust the generator belt tension after installation (See ALTERNATOR BELT INSPECTION AND ADJUSTMENT  ).
