Inspect Stator

  1. Check that there is continuity between each pair of leads(A).

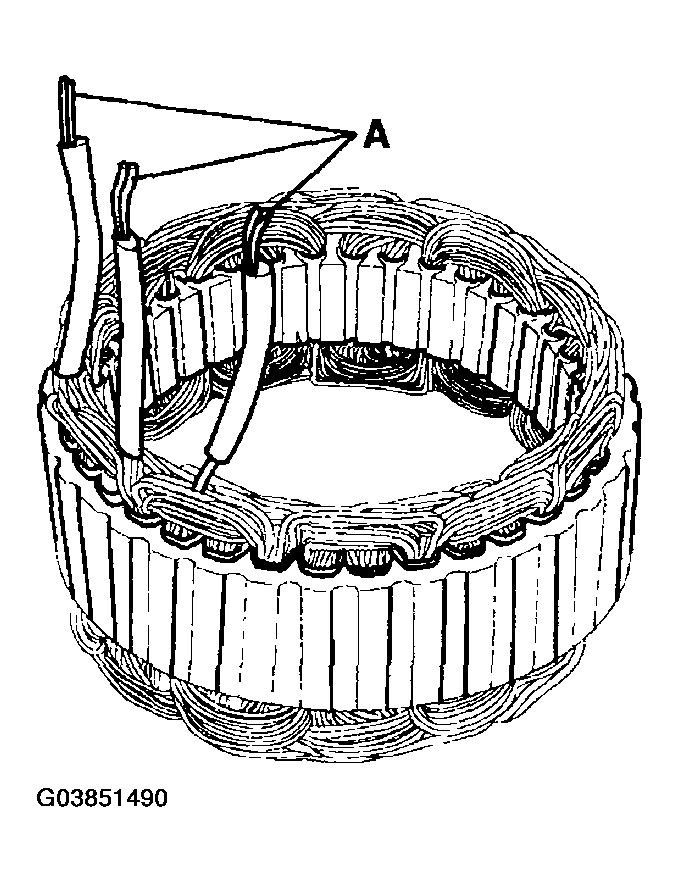

    Fig 1: Checking Continuity Between Each Pair Of Leads
    G03851490Courtesy of HYUNDAI MOTOR CO.
  2. Check that there is no continuity between each lead and the coil core.
  3. If the coil fails either continuity check, replace the generator.
