Charging System: Generator: Disassembly

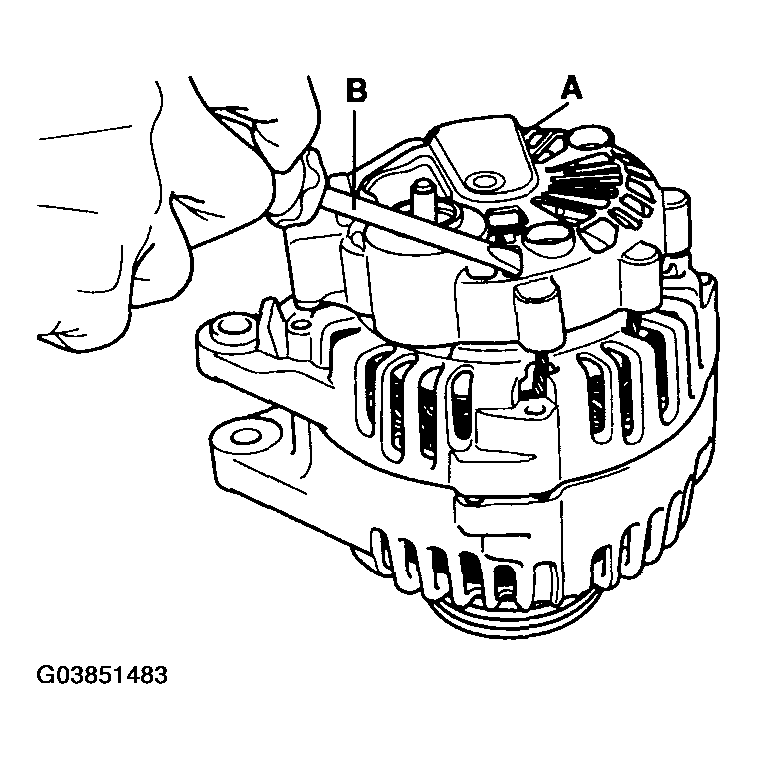

Remove the generator cover(A) using a screw driver(B).

Fig 1: Removing Generator Cover Using Screw Driver
Courtesy of HYUNDAI MOTOR CO.

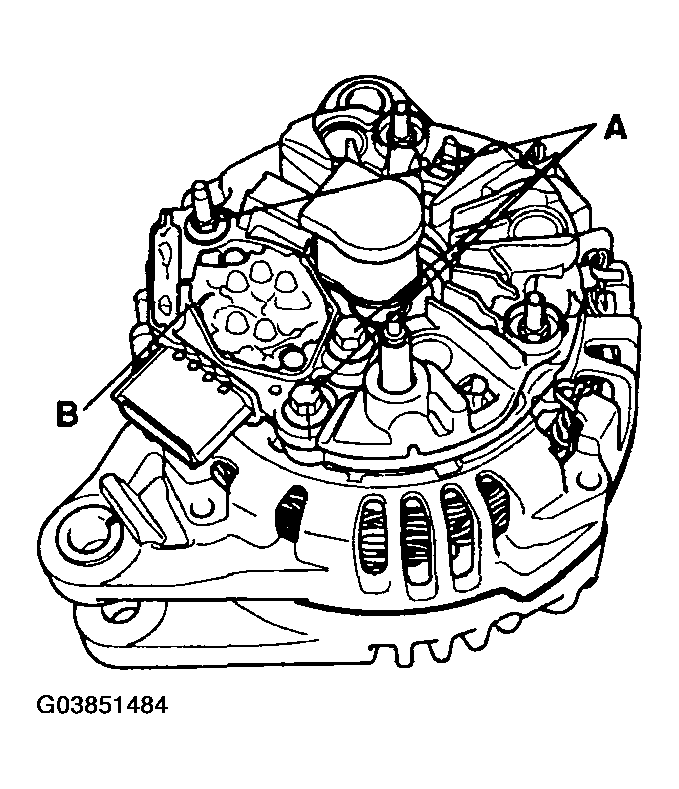

Loosen the mounting bolts(A) and disconnect the brush holder assembly(B).

Fig 2: Loosening Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.

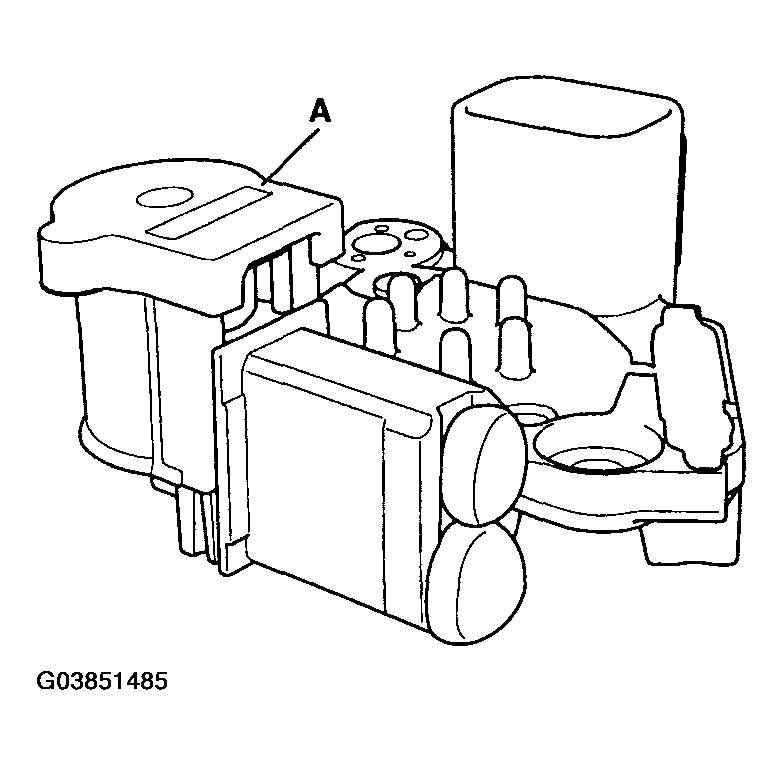

Remove the slip ring guide(A).

Fig 3: Removing Slip Ring Guide
Courtesy of HYUNDAI MOTOR CO.

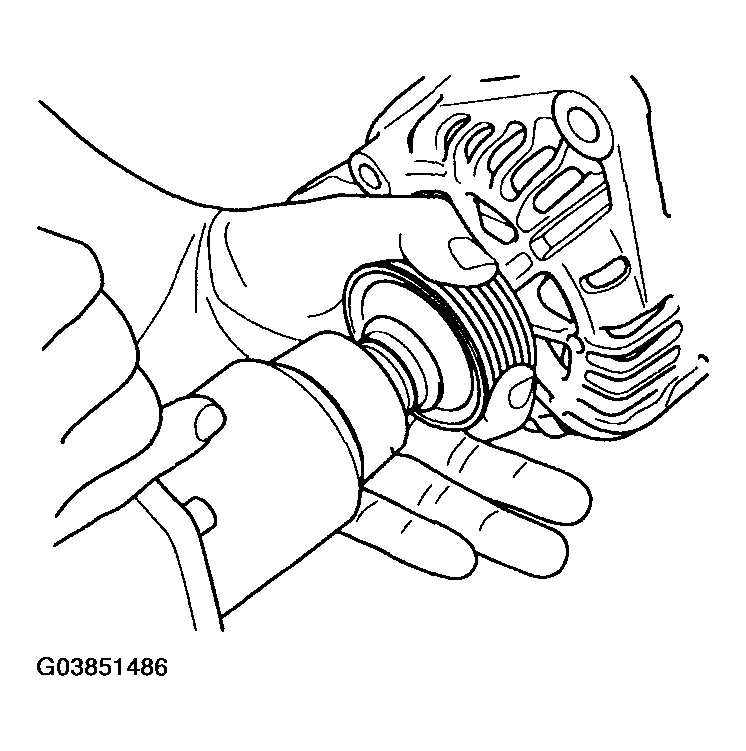

Remove the nut, pulley and spacer.

Fig 4: Removing Nut, Pulley And Spacer
Courtesy of HYUNDAI MOTOR CO.

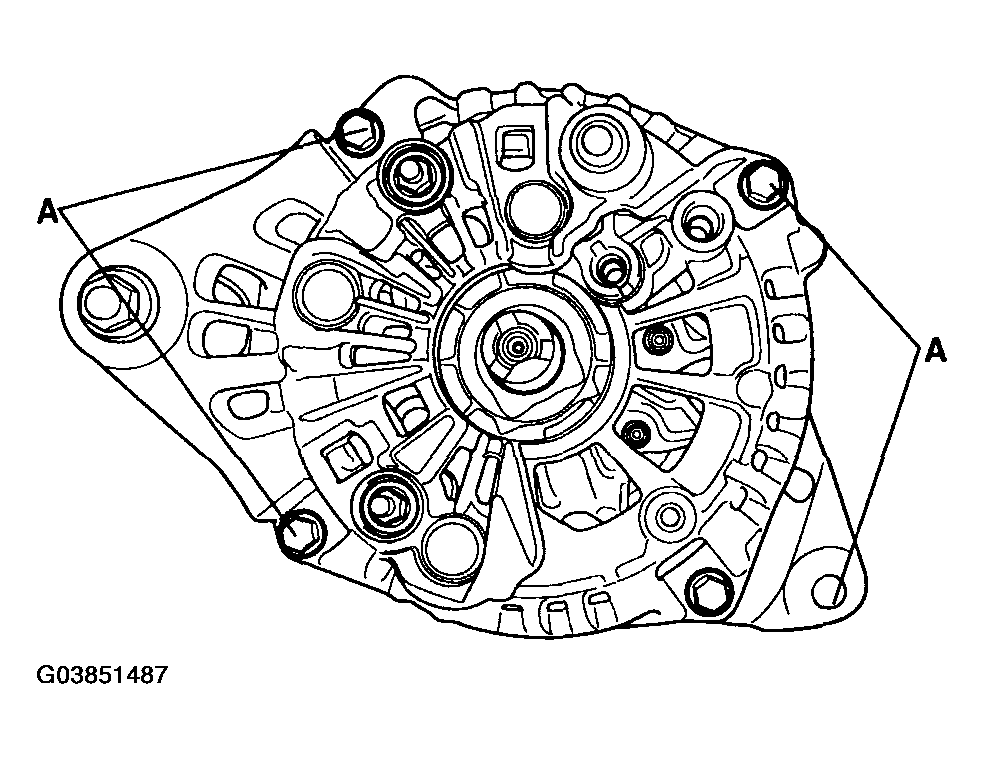

Loosen the 4 through bolts(A).

Fig 5: Loosening Through Bolts
Courtesy of HYUNDAI MOTOR CO.

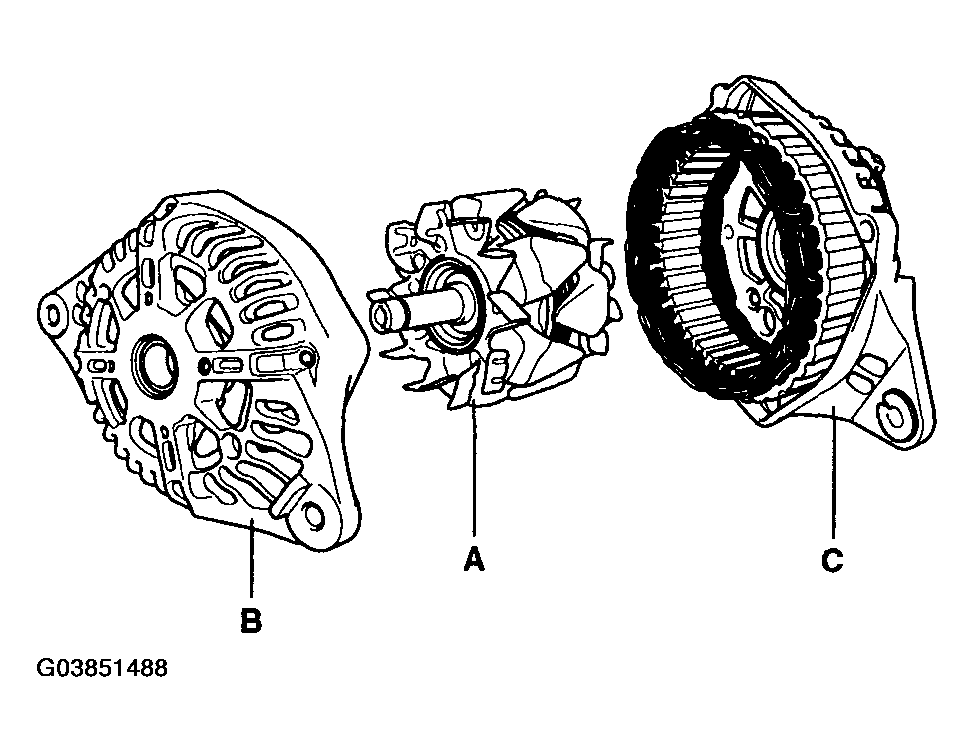

Disconnect the rotor(A), front cover(B), and rear cover(C).

Fig 6: Disconnecting Rotor, Front Cover And Rear Cover
Courtesy of HYUNDAI MOTOR CO.
Reassembly is the reverse of disassembly.
