Charging System: Generator: Components

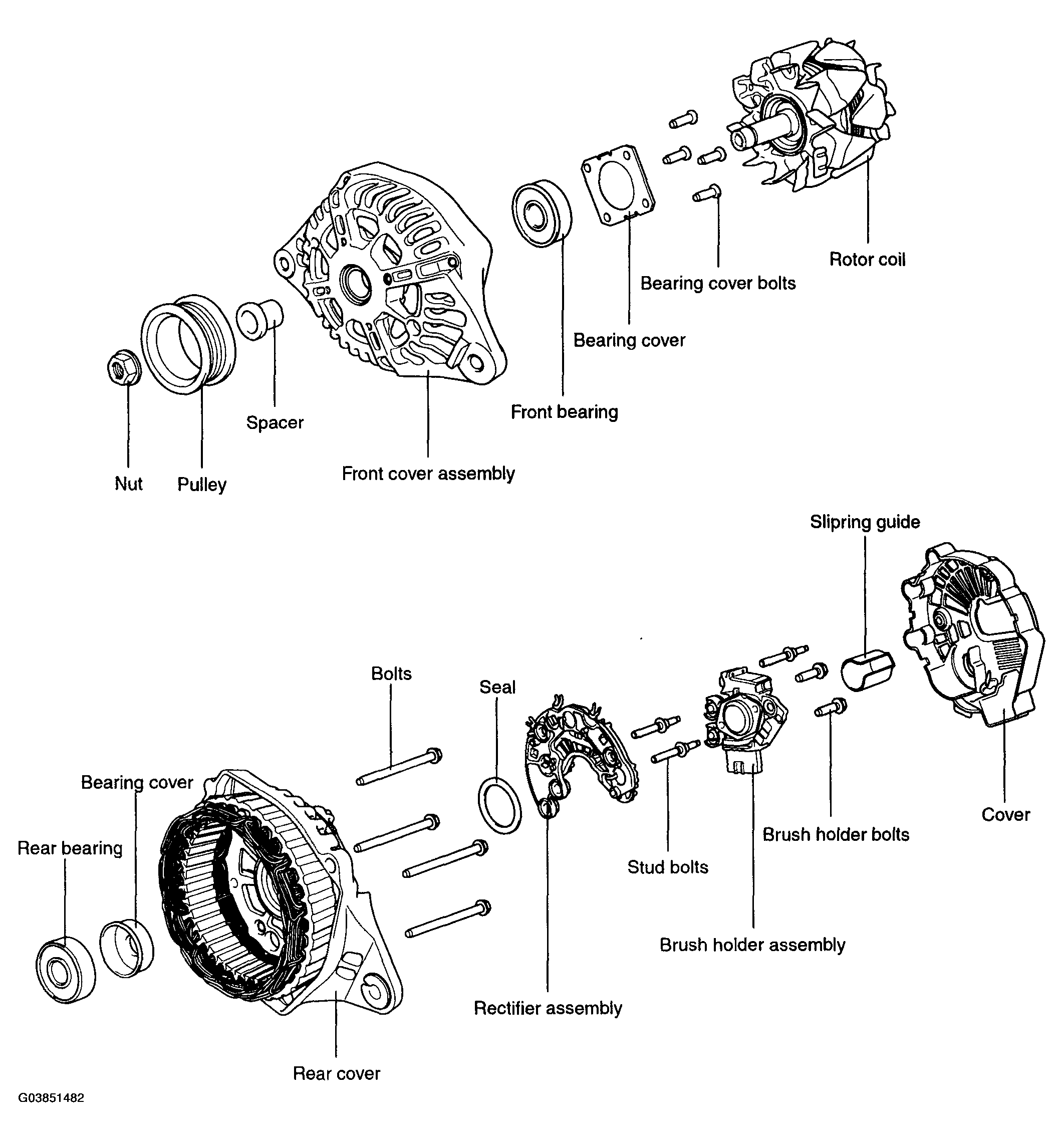

Fig 1: Exploded View Of Generator

G03851482

Courtesy of HYUNDAI MOTOR CO.
