Accent GT, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Circuit Diagram
Circuit Diagram

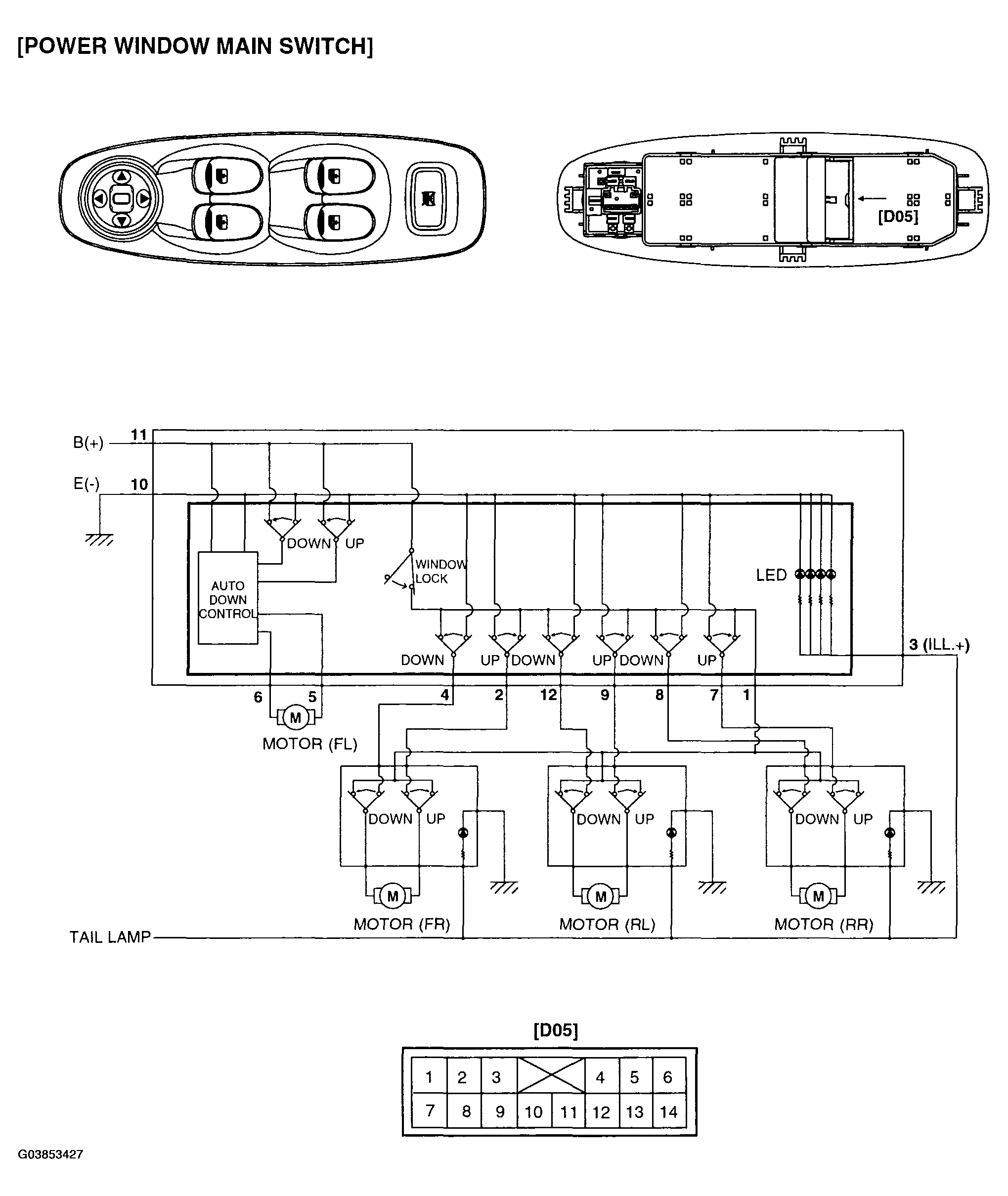

Fig 1: Identifying Power Window Main Switch Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.

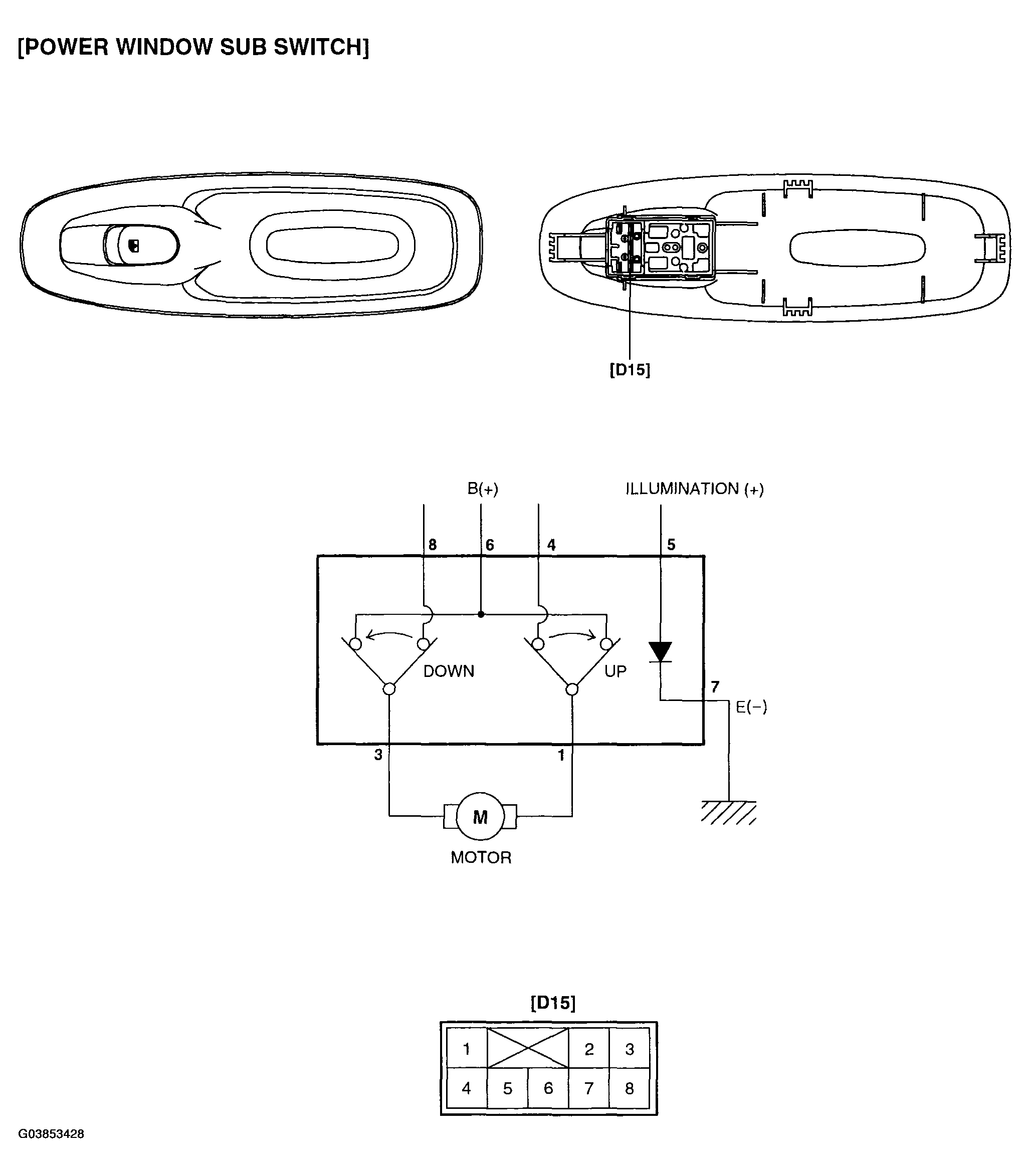

Fig 2: Identifying Power Window Sub-Switch Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
