Front Power Window Motor Inspection

  1. Remove the front door trim panel. (See FRONT DOOR ).
  2. Disconnect the 2P connector from the motor.

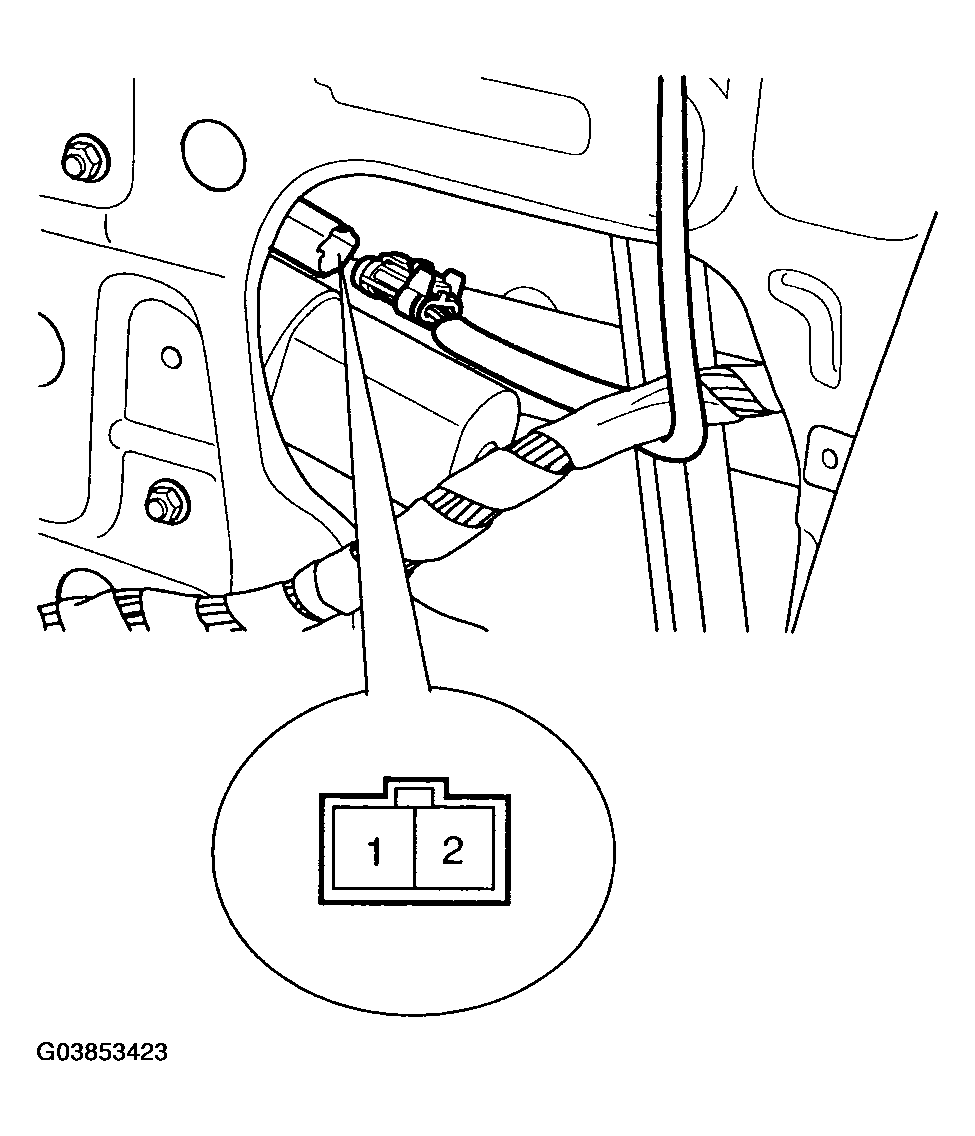

    Fig 1: Disconnecting 2P Connector From Motor
    G03853423Courtesy of HYUNDAI MOTOR CO.
  3. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

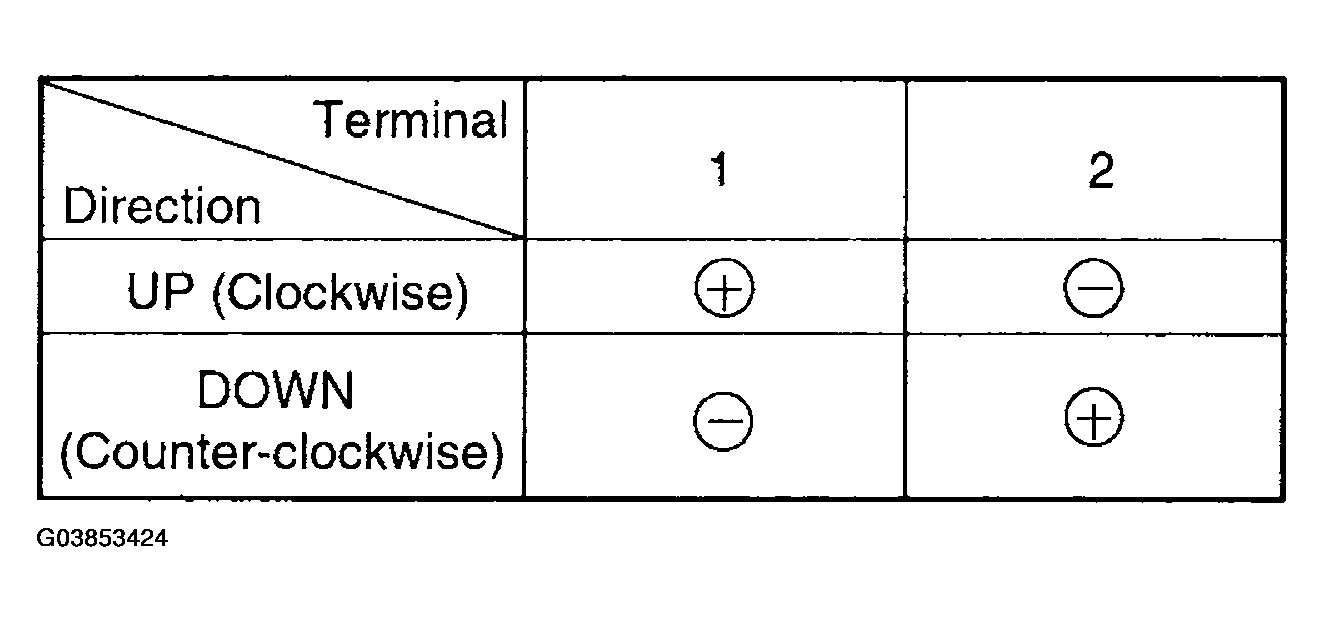

    Fig 2: Terminal Direction Reference Chart
    G03853424Courtesy of HYUNDAI MOTOR CO.
