Ignition Switch: Inspection

Remove the driver's side crash pad lower panel.

Fig 1: Removing Driver Side Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.
Disconnect the ignition switch connector and the door warning switch connector under the steering column.

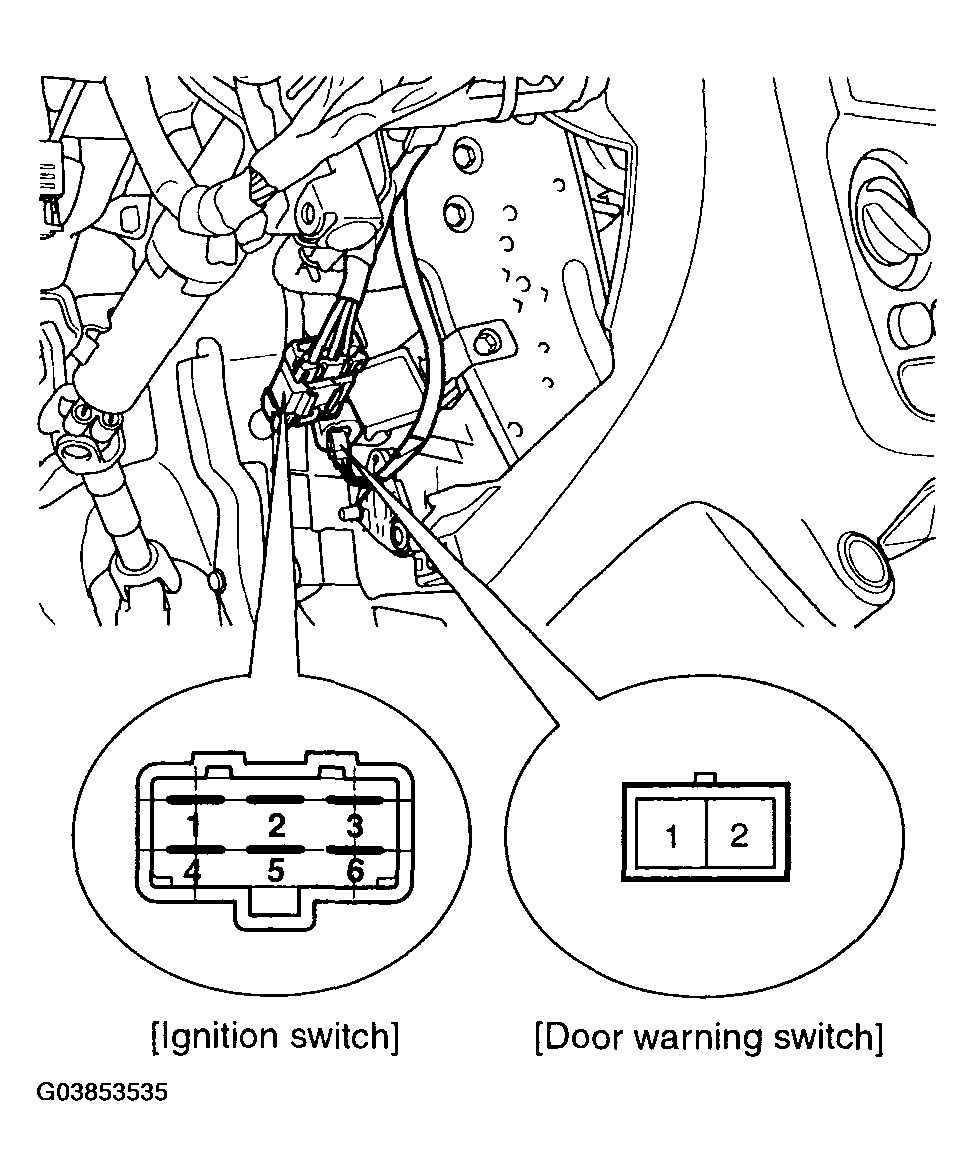

Fig 2: Disconnecting Ignition Switch Connector And Door Warning Switch Connector Under Steering Column
Courtesy of HYUNDAI MOTOR CO.
Check for continuity between the terminals.
If continuity is not as specified, replace the switch.

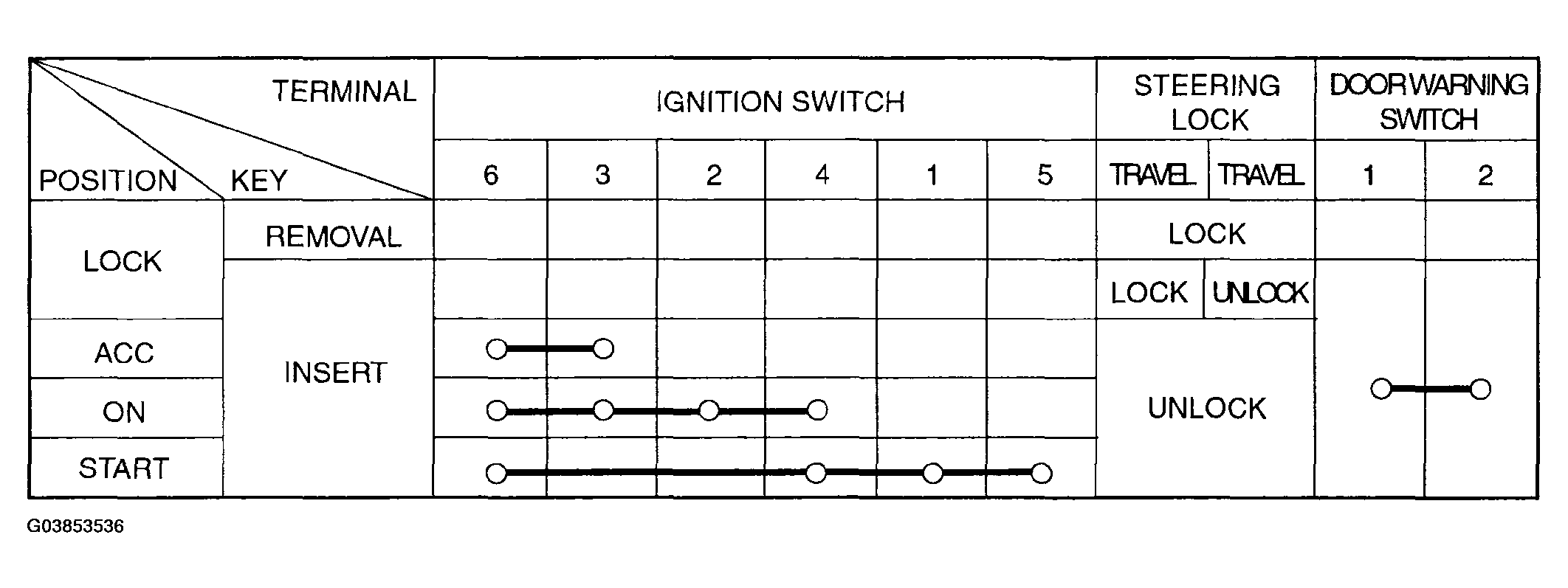

Fig 3: Checking Ignition Switch & Door Warning Switch Continuity
Courtesy of HYUNDAI MOTOR CO.
