Engine Block: Components

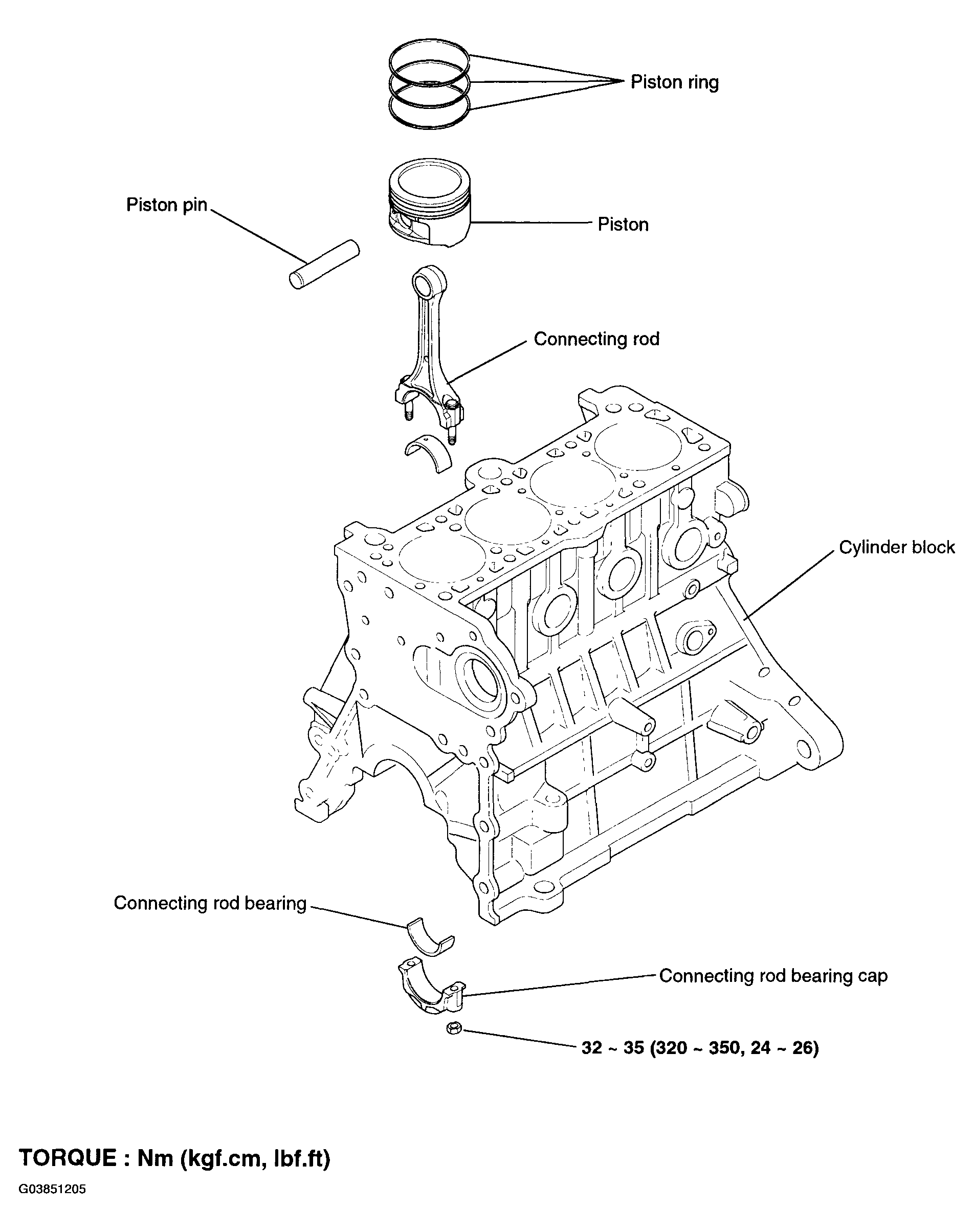

Fig 1: Engine Block Replacement Components With Torque Specifications
G03851205Courtesy of HYUNDAI MOTOR CO.
