Tail Gate: Components

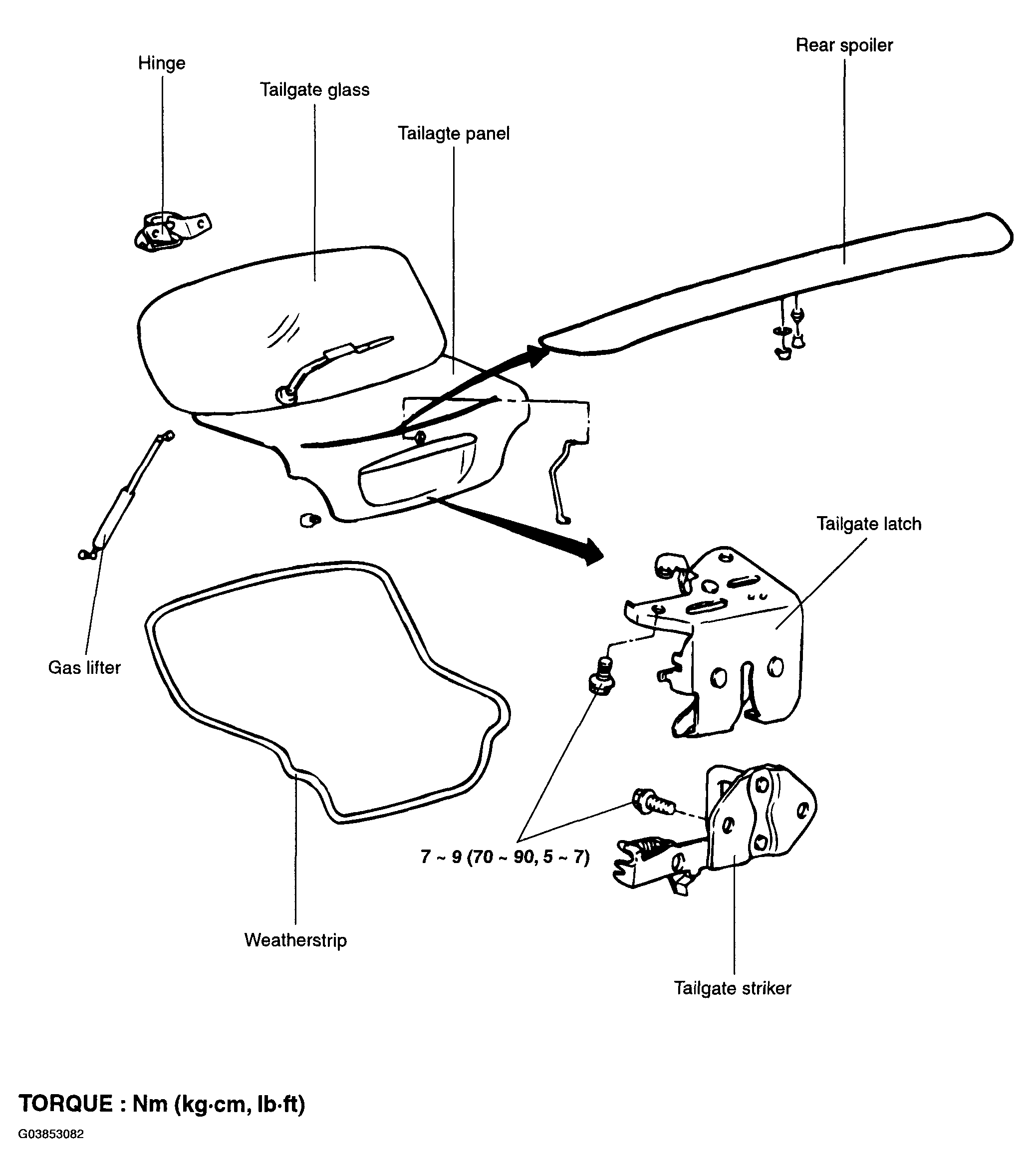

Fig 1: Tail Gate Replacement Components With Torque Specifications

G03853082

Courtesy of HYUNDAI MOTOR CO.
