Inspection Procedure 8

POSSIBLE CAUSES - INSPECTION PROCEDURE 8

Shocks when shifting from N to R and long lag time	Possible cause
When the engine is idling, abnormal shocks or a lag time of 2 seconds or more occurs when the selector lever is shifted from N to R range. In such cases, the cause may be abnormal low reverse brake or front clutch pressure, or a defective low reverse brake or front clutch.	Abnormal front clutch pressure Abnormal low reverse brake pressure Malfunction of front clutch Malfunction of low reverse brake Malfunction of valve body

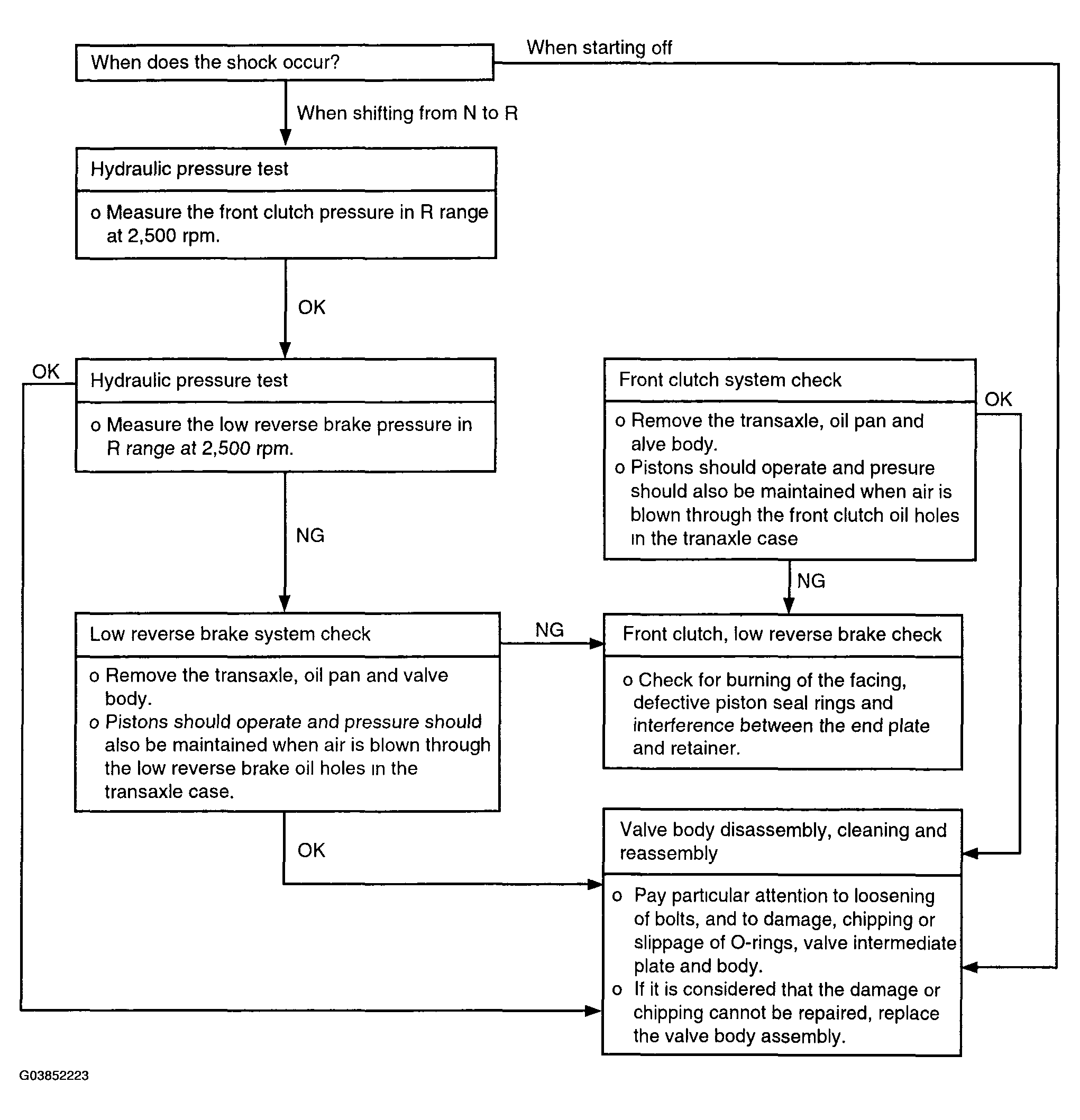

Fig 1: Inspection Procedure 8 - Flow Chart

Courtesy of HYUNDAI MOTOR CO.
