Inspection Procedure 4

POSSIBLE CAUSES - INSPECTION PROCEDURE 4

Does not move back-up	Possible cause
When the engine is idling, the vehicle does not back-up even if the selector lever is shifted from N to R range. In such cases, the cause may be abnormal pressure in the low reverse brake or front clutch, or a defective low reverse brake or front clutch.	Abnormal low reverse brake pressure Abnormal front clutch pressure Malfunction of front clutch Malfunction of low reverse brake Malfunction of valve body

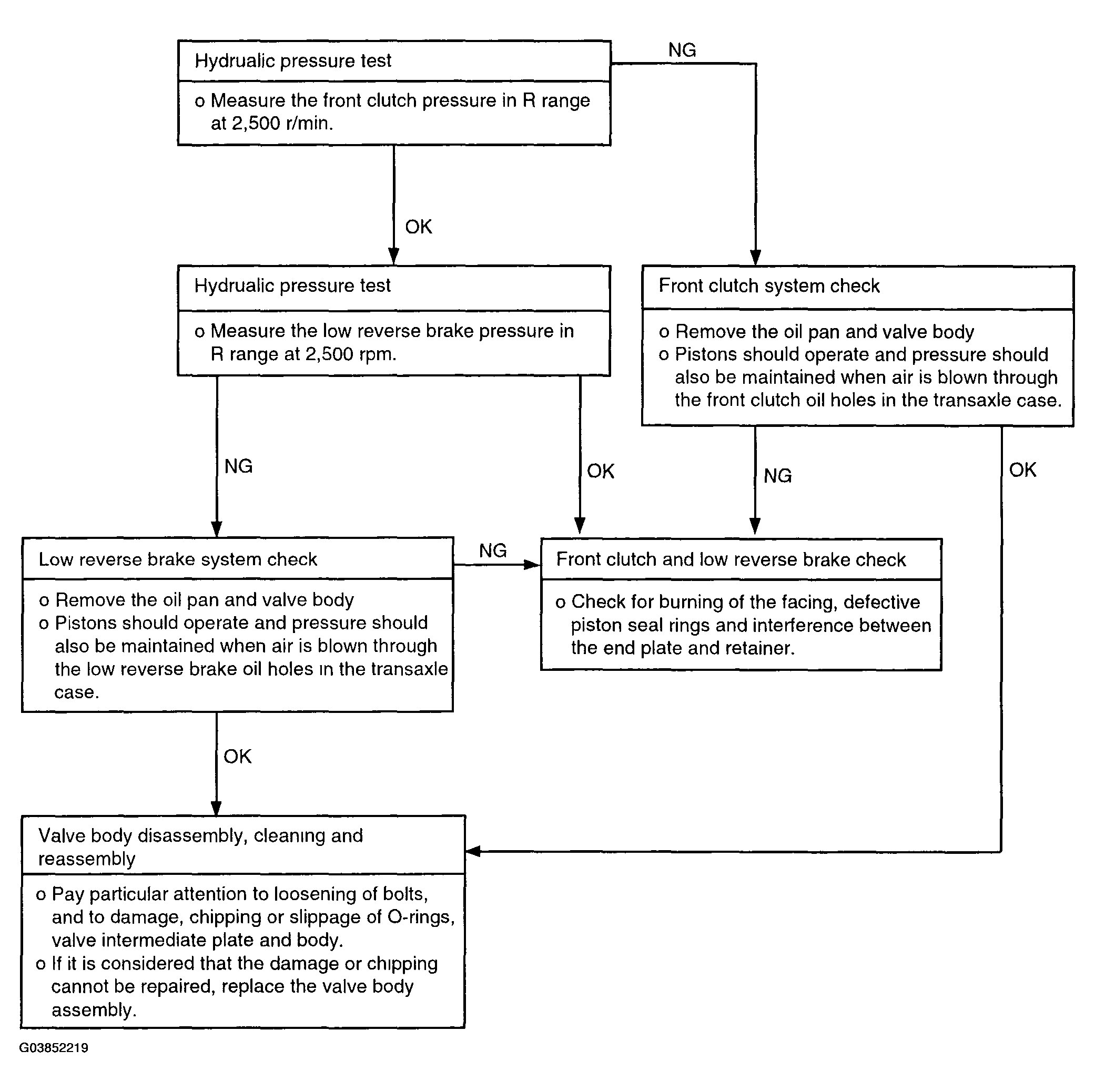

Fig 1: Inspection Procedure 4 - Flow Chart

Courtesy of HYUNDAI MOTOR CO.
