Inspection Procedure 3

POSSIBLE CAUSES - INSPECTION PROCEDURE 3

Does not move forward	Possible cause
When the engine is idling, the vehicle does not move forward even if the selector lever is shifted from N to D, 2 or L range. In such cases, the cause may be abnormal line pressure; a defective rear clutch or a one-way clutch.	Abnormal line pressure Malfunction of rear clutch Malfunction of one-way clutch Malfunction of valve body

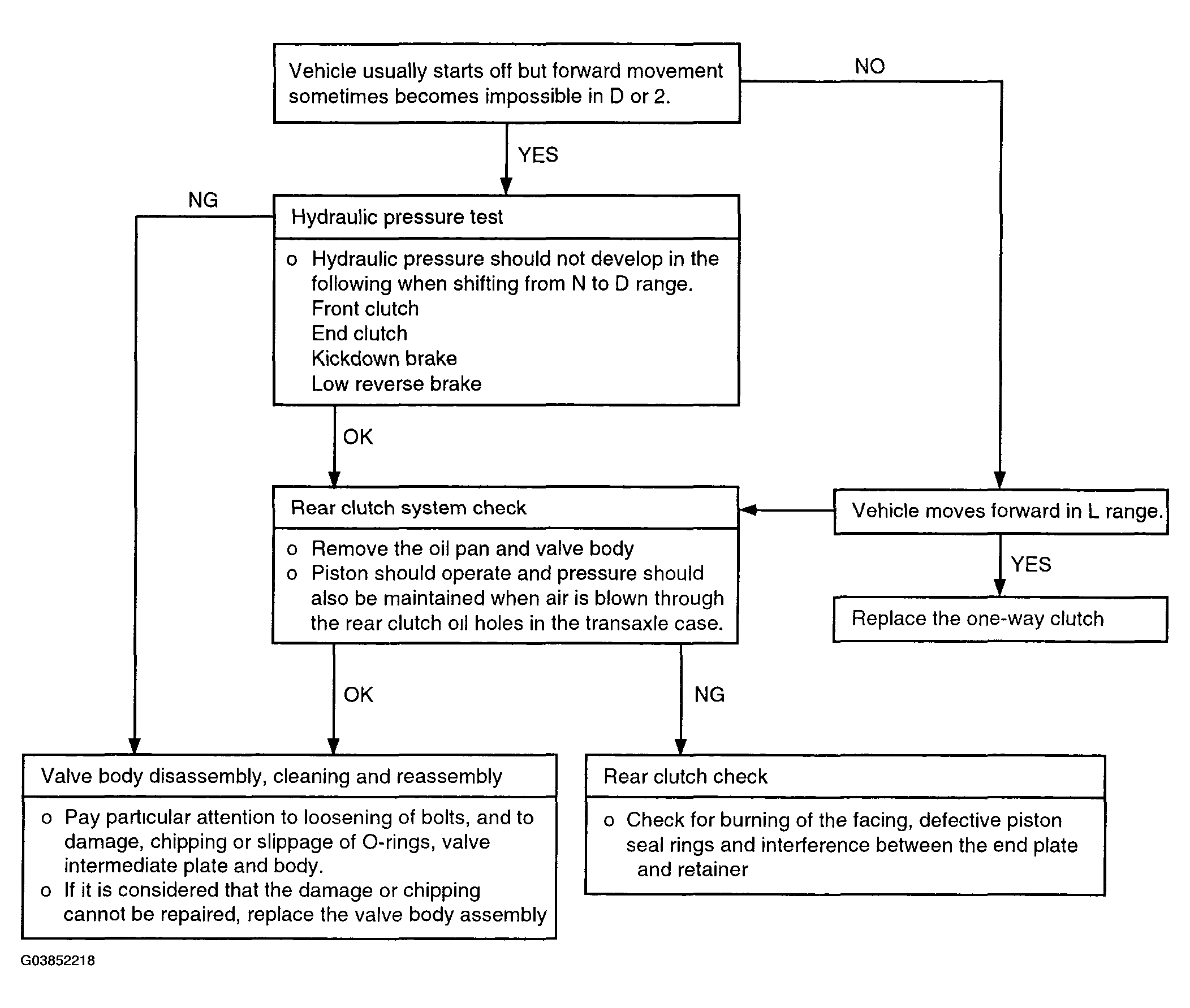

Fig 1: Inspection Procedure 3 - Flow Chart

Courtesy of HYUNDAI MOTOR CO.
