Rear Seat: Components

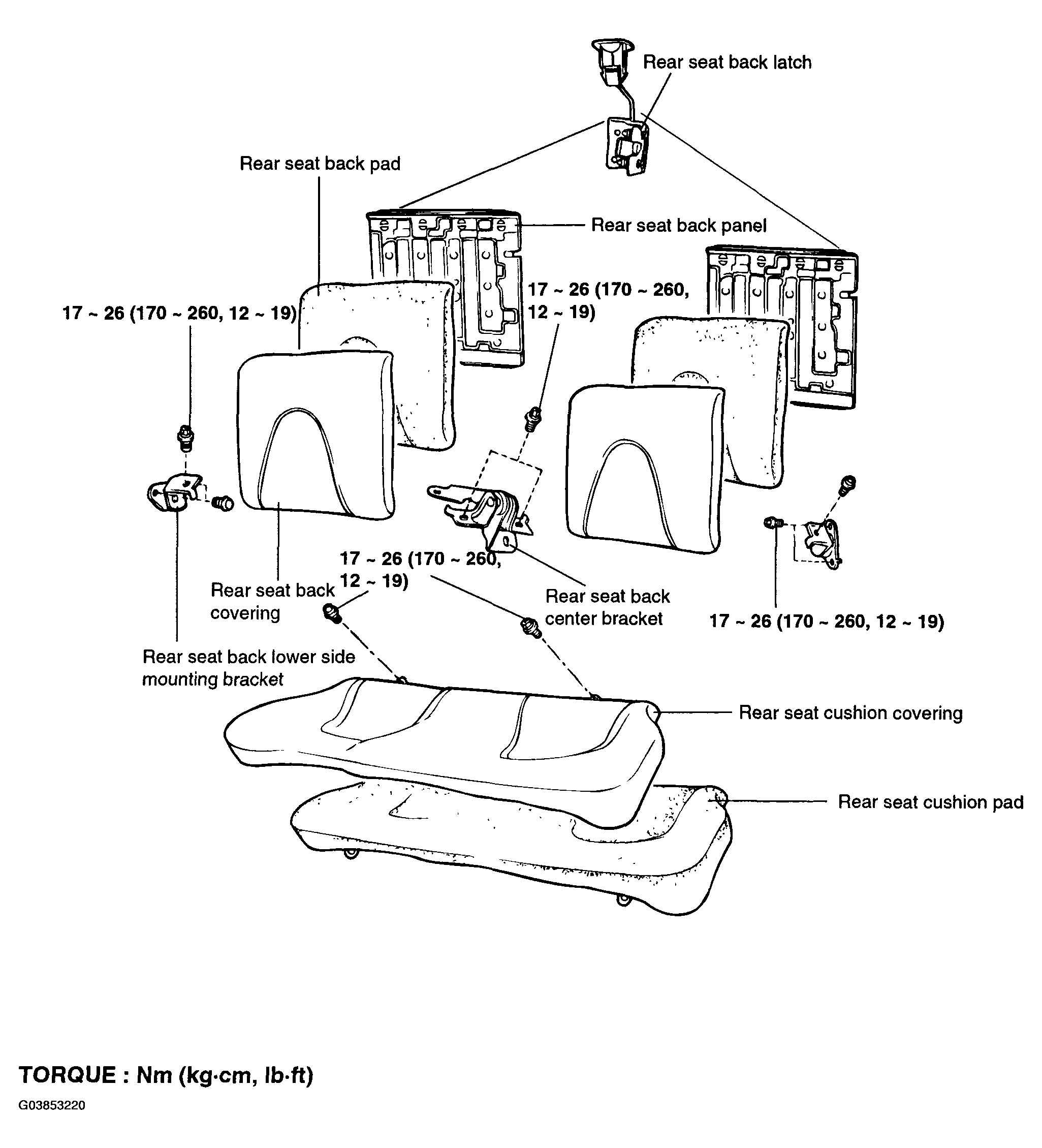

Fig 1: Rear Seat Replacement Components With Torque Specifications

G03853220

Courtesy of HYUNDAI MOTOR CO.
