Inspect Rotor

  1. Check that there is continuity between the slip rings(A).

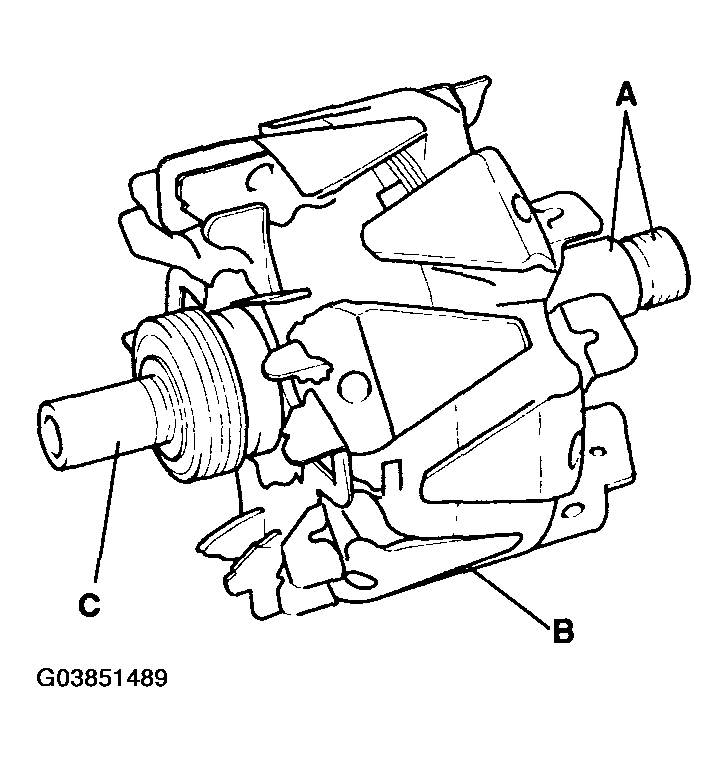

    Fig 1: Checking Continuity Between Slip Rings
    G03851489Courtesy of HYUNDAI MOTOR CO.
  2. Check that there is no continuity between the slip rings and the rotor or rotor shaft.
  3. If the rotor fails either continuity check, replace the generator.
