Rear Door: Components

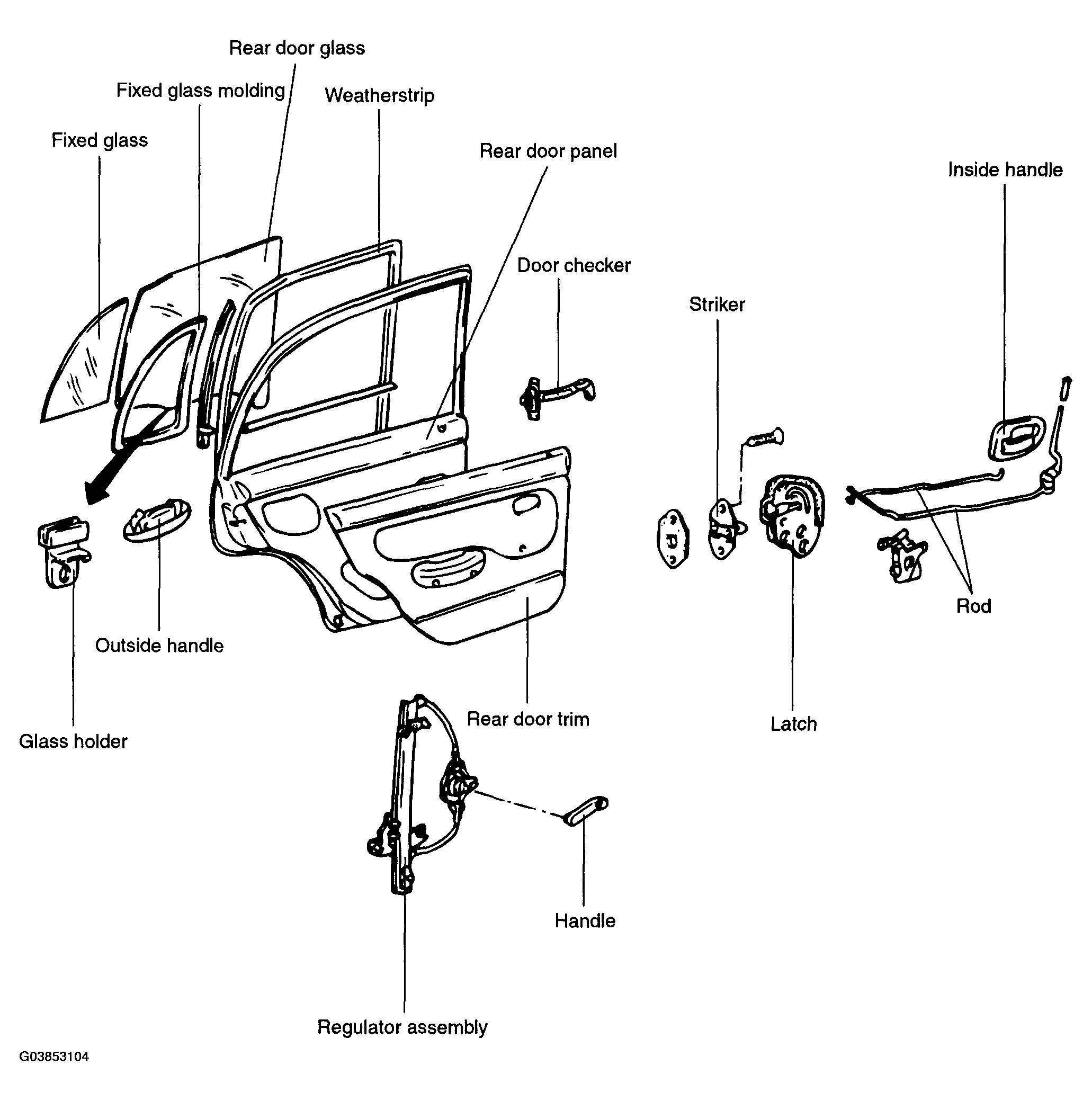

Fig 1: Exploded View Of Rear Door Components

G03853104

Courtesy of HYUNDAI MOTOR CO.
