Removal And Installation

CAUTION: Wear gloves to remove and install the mirror holder.

Insert flat tip (-) screwdriver between the outside rearview mirror holder and mirror assembly.

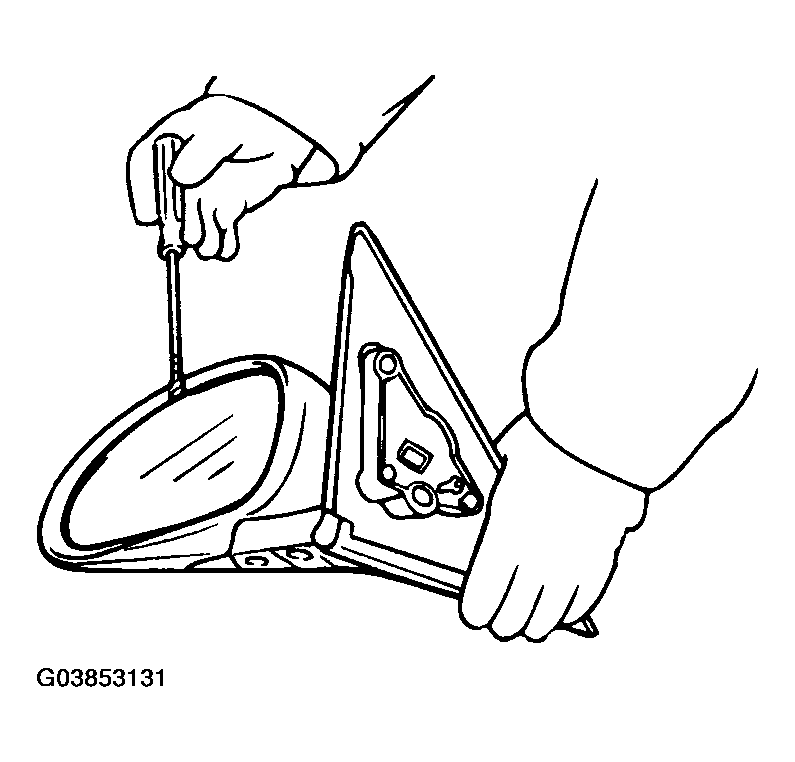

Fig 1: Inserting Flat Tip Outside Rearview Mirror Holder
Courtesy of HYUNDAI MOTOR CO.

CAUTION: When prying with a flat tip screwdriver, wrap it with a shop towel to prevent damage.
Remove the outside rearview mirror actuator from outside rearview mirror housing.

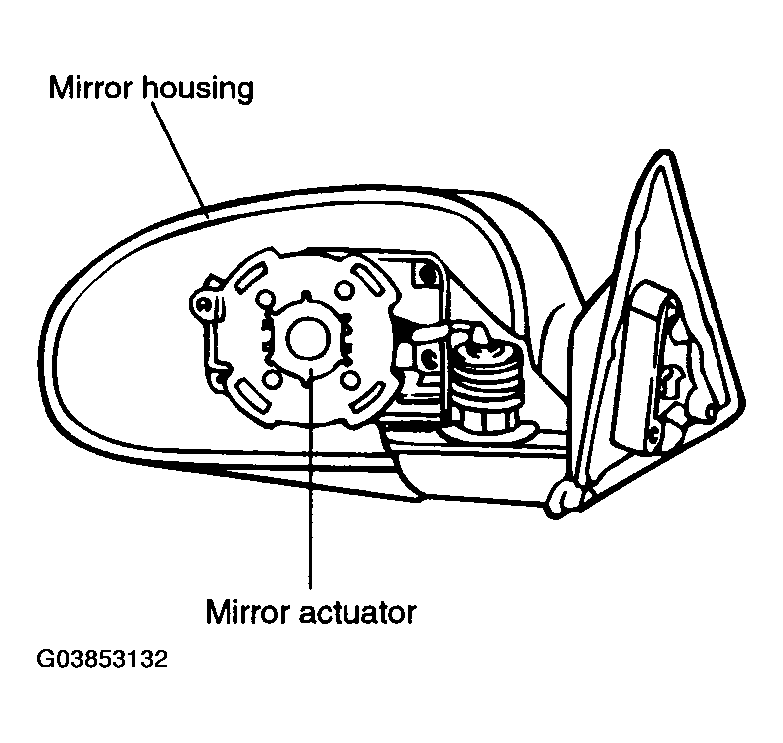

Fig 2: Removing Outside Rearview Mirror Actuator From Outside Rearview Mirror Housing
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
