Removal And Installation

Disconnect the negative(-) battery terminal.

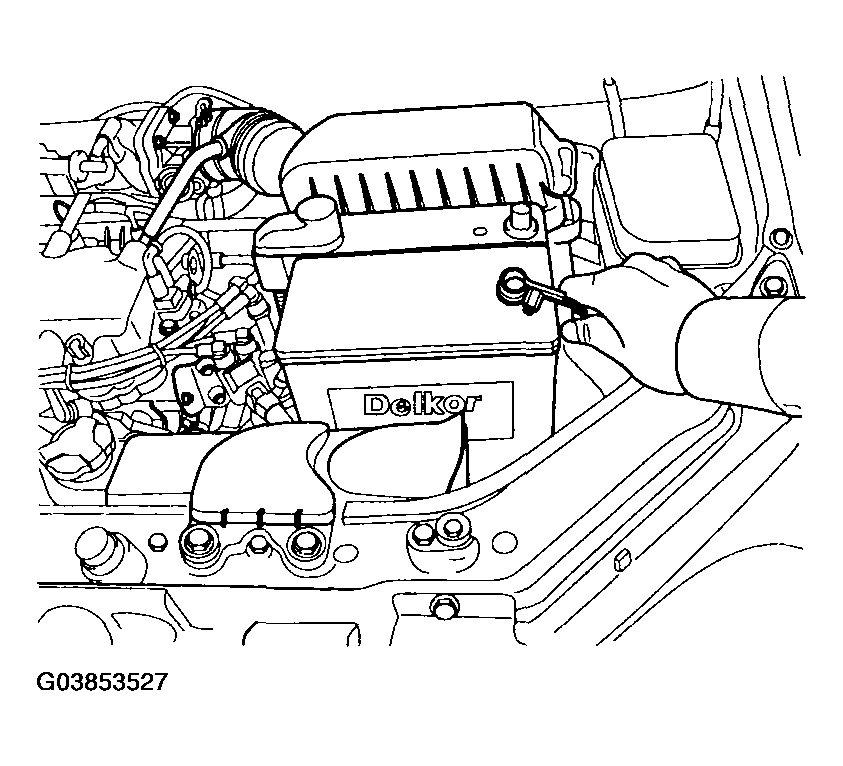

Fig 1: Disconnecting Negative(-) Battery Terminal
Courtesy of HYUNDAI MOTOR CO.
Remove the 2 bolts and disconnect the airbag connector and the horn connector, then remove the airbag module.
CAUTION: Remove the horn pad only for vehicle without airbag.

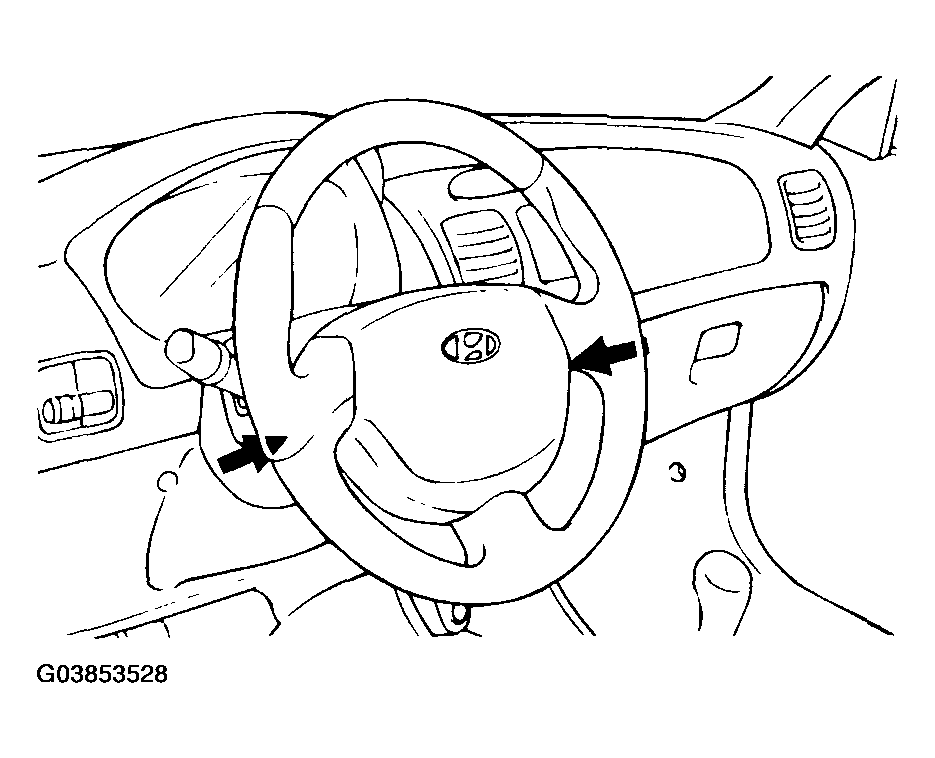

Fig 2: Removing Horn Pad Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel lock nut.

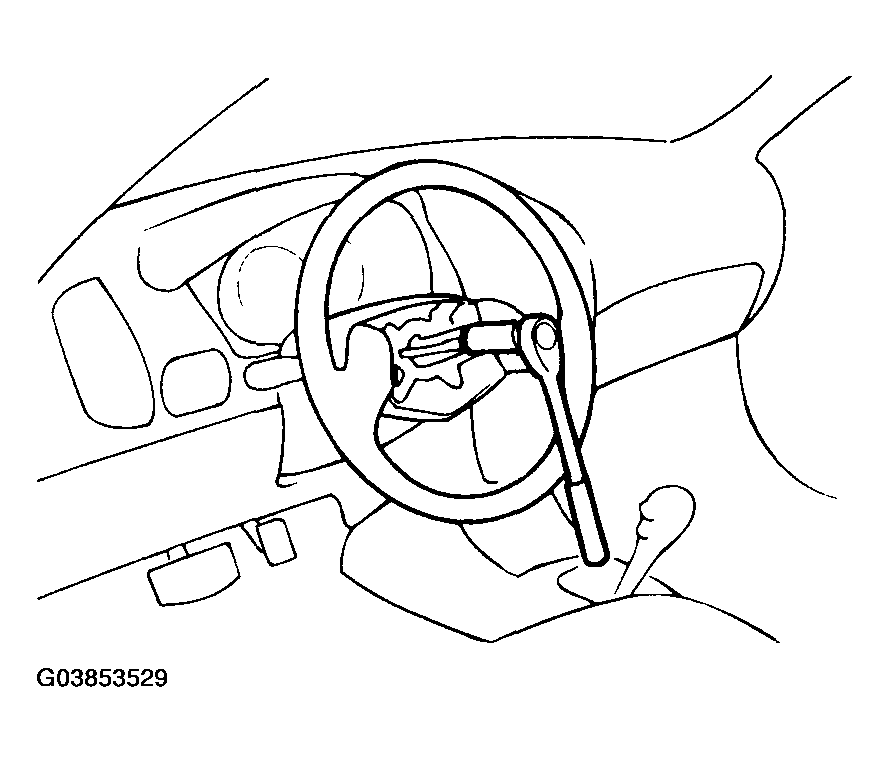

Fig 3: Removing Steering Wheel Lock Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel with special tool (09561-11002).
CAUTION: Do not hammer on the steering wheel to remove it. Doing so may damage the collapsible mechanism.

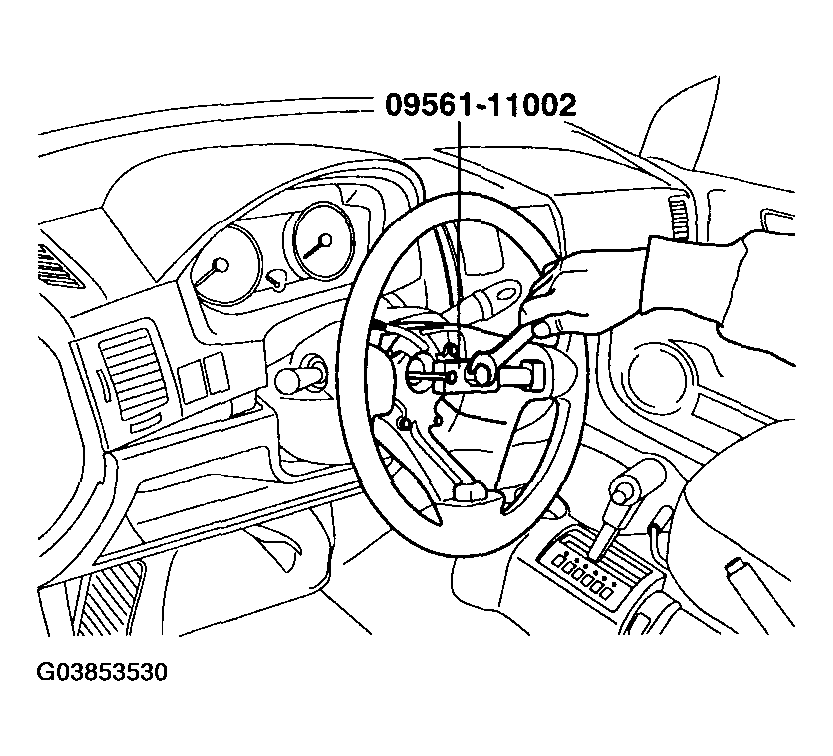

Fig 4: Removing Steering Wheel With Special Tool
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column shroud after removing 3 screws.

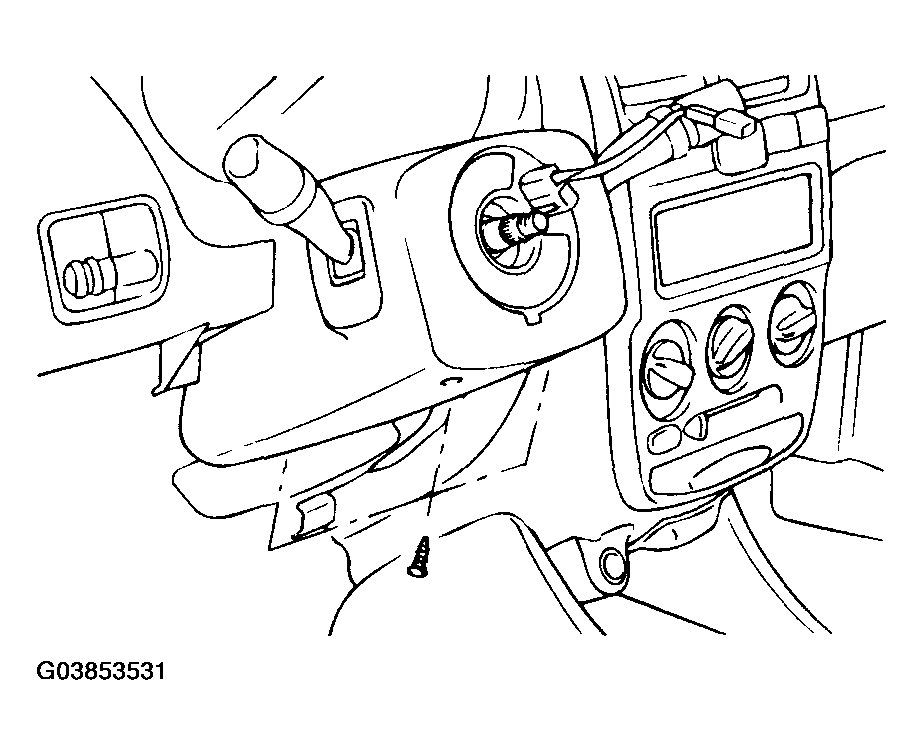

Fig 5: Removing Steering Column Shroud After Removing 3 Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the screws holding the multi-function switch, then disconnect the wire connector.
Remove the multi-function switch assembly.

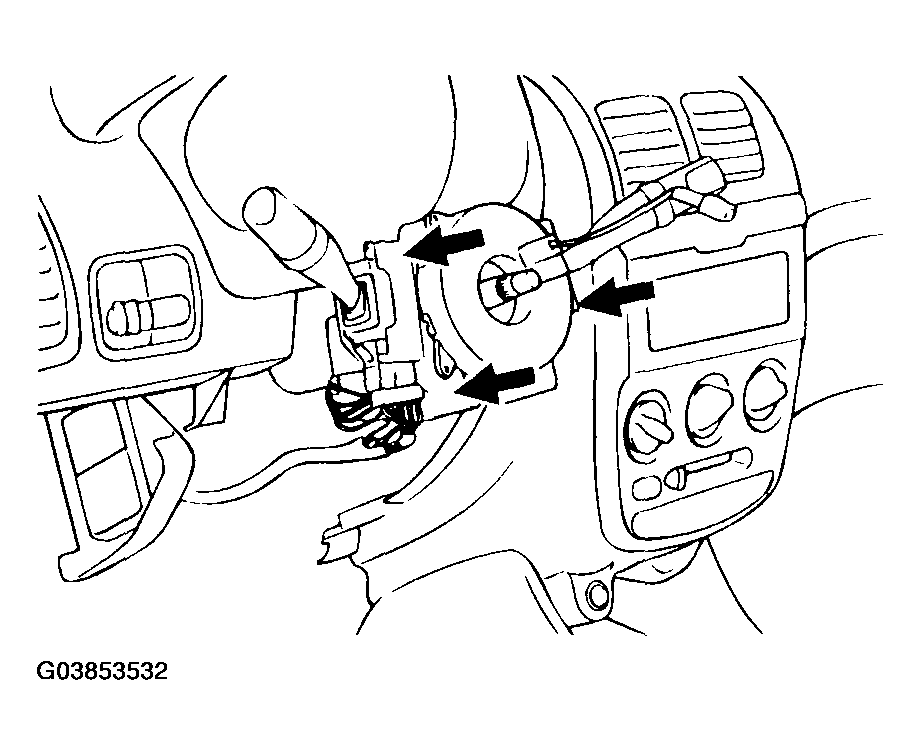

Fig 6: Removing Screws Holding Multi-Function Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column mounting bolts.

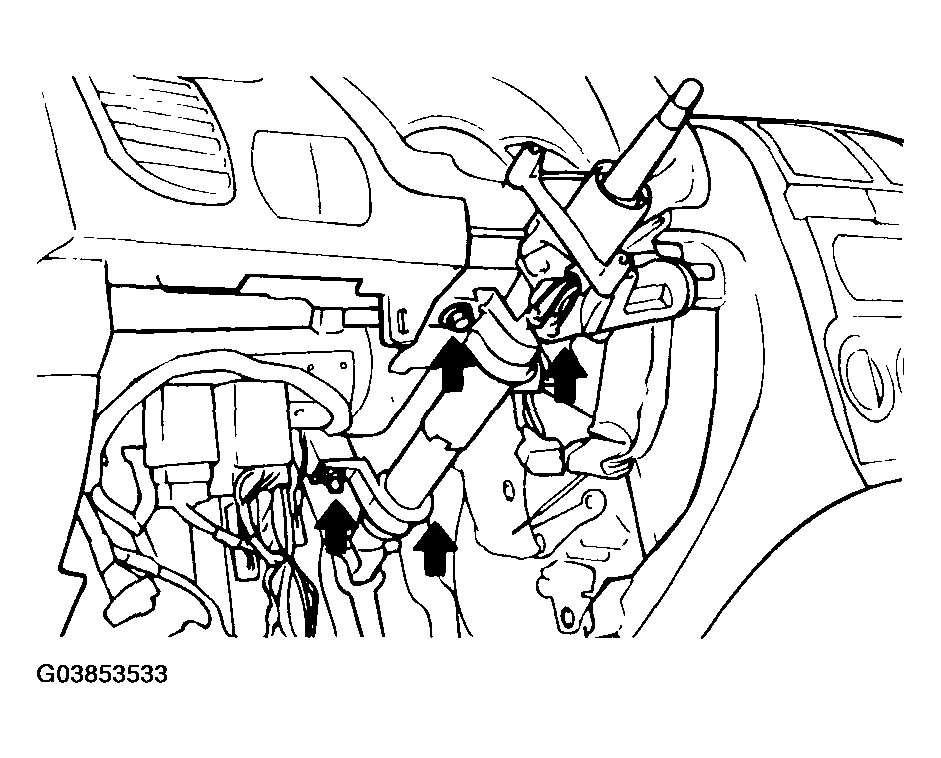

Fig 7: Removing Steering Column Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the key lock assembly from the steering column shaft. (See STEERING COLUMN AND SHAFT )
Installation is the reverse of removal.
