Multifunction Switch Components & Connector End Views

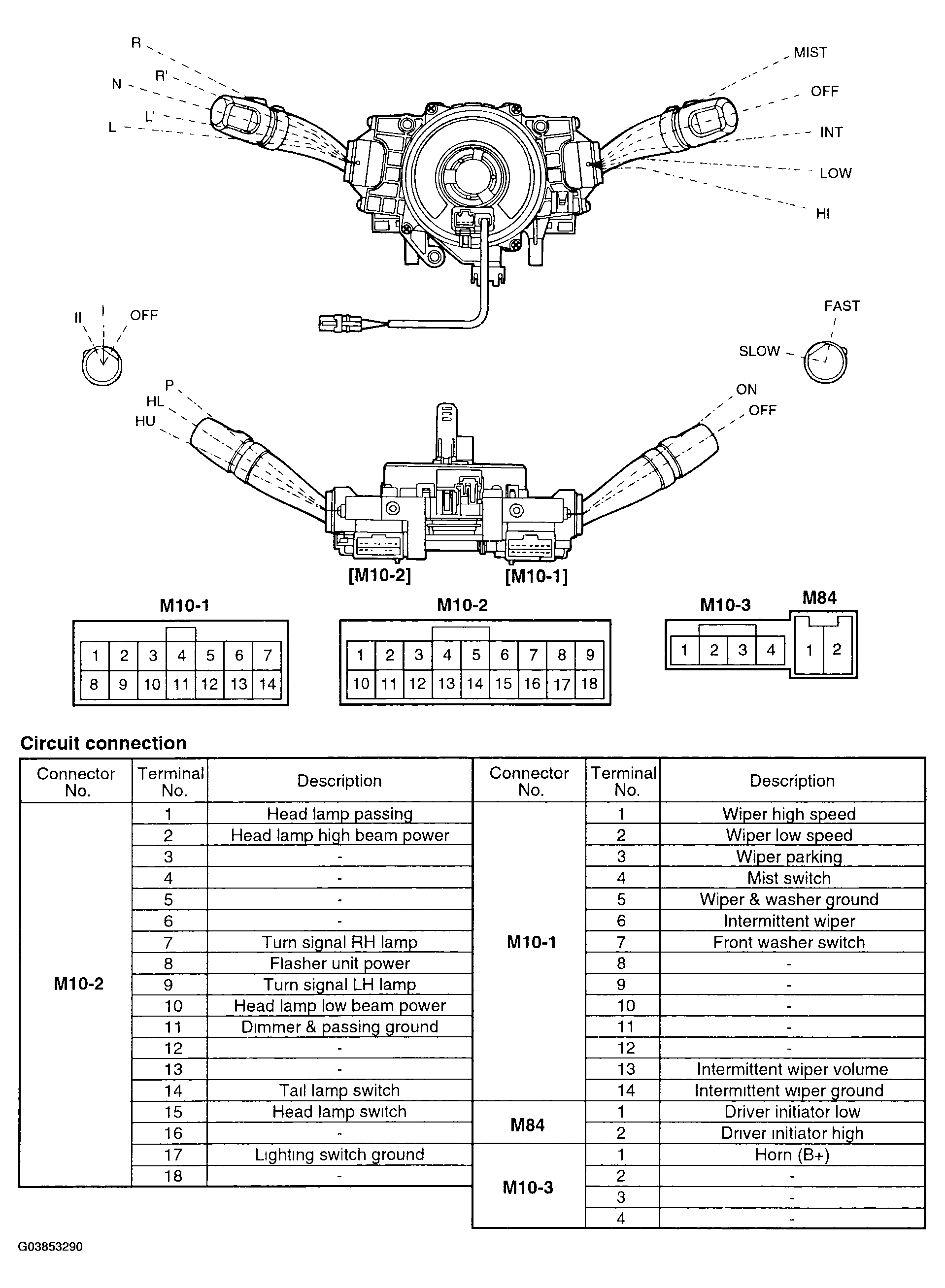

Fig 1: Multifunction Switch Components & Connector End Views

G03853290

Courtesy of HYUNDAI MOTOR AMERICA
