Engine Block: Disassembly

  1. Remove the timing belt, cylinder head, front case, flywheel, pistons and crankshaft.
  2. Remove the oil pressure switch.

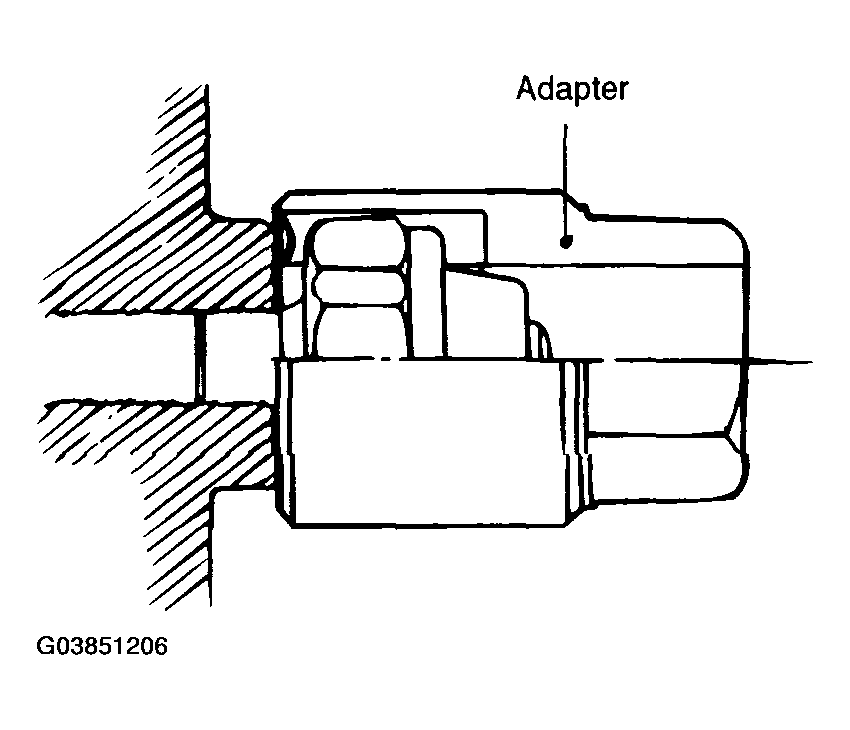

    Fig 1: Removing Oil Pressure Switch
    G03851206Courtesy of HYUNDAI MOTOR CO.
