ETACS Module Input Signal Test

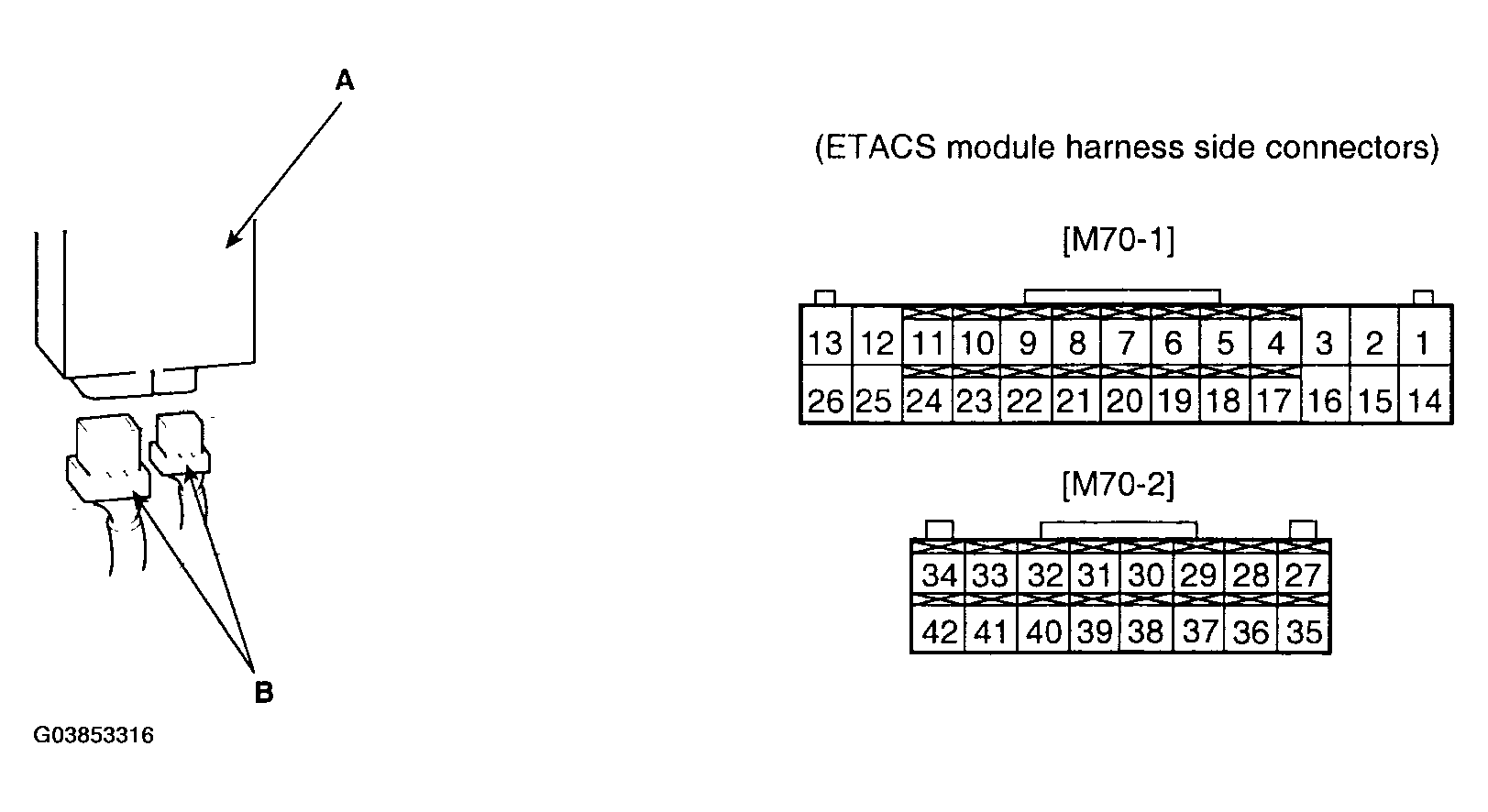

- Disconnect the wire connectors(B) from the ETACS module(A).
- Inspect the connectors(B) on wire harness side as shown in the below.
TERMINAL STANDARD VALUE CONDITION
| Terminals No. | Test condition | Standard value |
|---|---|---|
| 38-35 (GND) | Door switch "ON" (Door opened) | Below 1ohm |
| Door switch "OFF" (Door closed) | 1Mohm or higher | |
| 40-35 (GND) | Luggage compartment door switch "ON" (Luggage compartment door opened) |
Below 1ohm |
| Luggage compartment door switch "OFF" (Luggage compartment door closed) |
1Mohm or higher | |
| 34-35 (GND) | Engine hood switch "ON" (Engine hood opened) | Below 1ohm |
| Engine hood switch "OFF" (Engine hood closed) | 1Mohm or higher | |
| 37-35 (GND) | Driver's door switch "ON" (Driver's door opened) | Below 1ohm |
| Driver's door switch "OFF" (Driver's door closed) | 1Mohm or higher | |
| 36-35 (GND) | Assist door switch "ON" (Assist door opened) | Below 1ohm |
| Assist door switch "OFF" (Assist door closed) | 1Mohm or higher | |
| 39-35 (GND) | Door warning switch "ON" (Key inserted) | Battery voltage |
| Door warning switch "OFF" (Key removed) | Below 1V | |
| 42-35 (GND) | Trunk key unlock switch "ON" (Trunk lid is unlocked with key) | Below 1ohm |
| Trunk key unlock switch "OFF" | 1Mohm or higher | |
| 27-35 (GND) | Always | Battery voltage |
| 17-35 (GND) | Ignition switch is turned to "ON" position | Battery voltage |
| 31-35 (GND) | Driver's door lock switch "ON" (Driver's door unlock detection) | Below 1ohm |
| Driver's door lock switch "OFF" (Driver's door lock detection) | 1Mohm or higher | |
| 30-35 (GND) | Assist door lock switch "ON" (Assist door unlock detection) | Below 1ohm |
| Assist door lock switch "OFF" (Assist door lock detection) | 1Mohm or higher | |
| 32-35 (GND) | Rear door lock switch "ON" (Rear door unlock detection) | Below 1ohm |
| Rear door lock switch "OFF" (Rear door lock detection) | 1Mohm or higher | |
| 14-35 (GND) | Always | Battery voltage |
| 13-35 (GND) | Engine Start | Battery voltage |
| 35 (GND) - Body ground | Always | Below 1ohm |
| 3-35 (GND) | Burglar alarm horn operation | ON |
| 5-35 (GND) | Driver's door key unlock switch "ON" (Driver's door is unlocked with key) |
Below 1ohm |
| 11-35 (GND) | Assist door and tailgate key unlock switch "ON" (Assist door and tailgate are unlocked with key) |
Below 1ohm |
