ETACS Cm Pin Connection

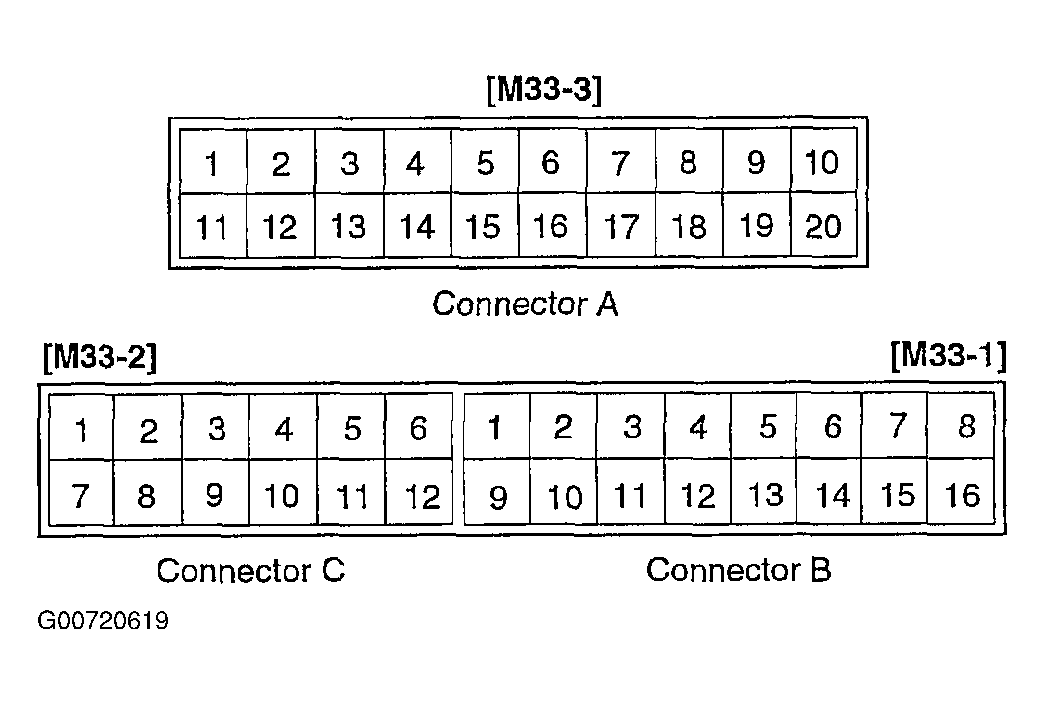

Fig 1: ETACS Connector Terminal Identification (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

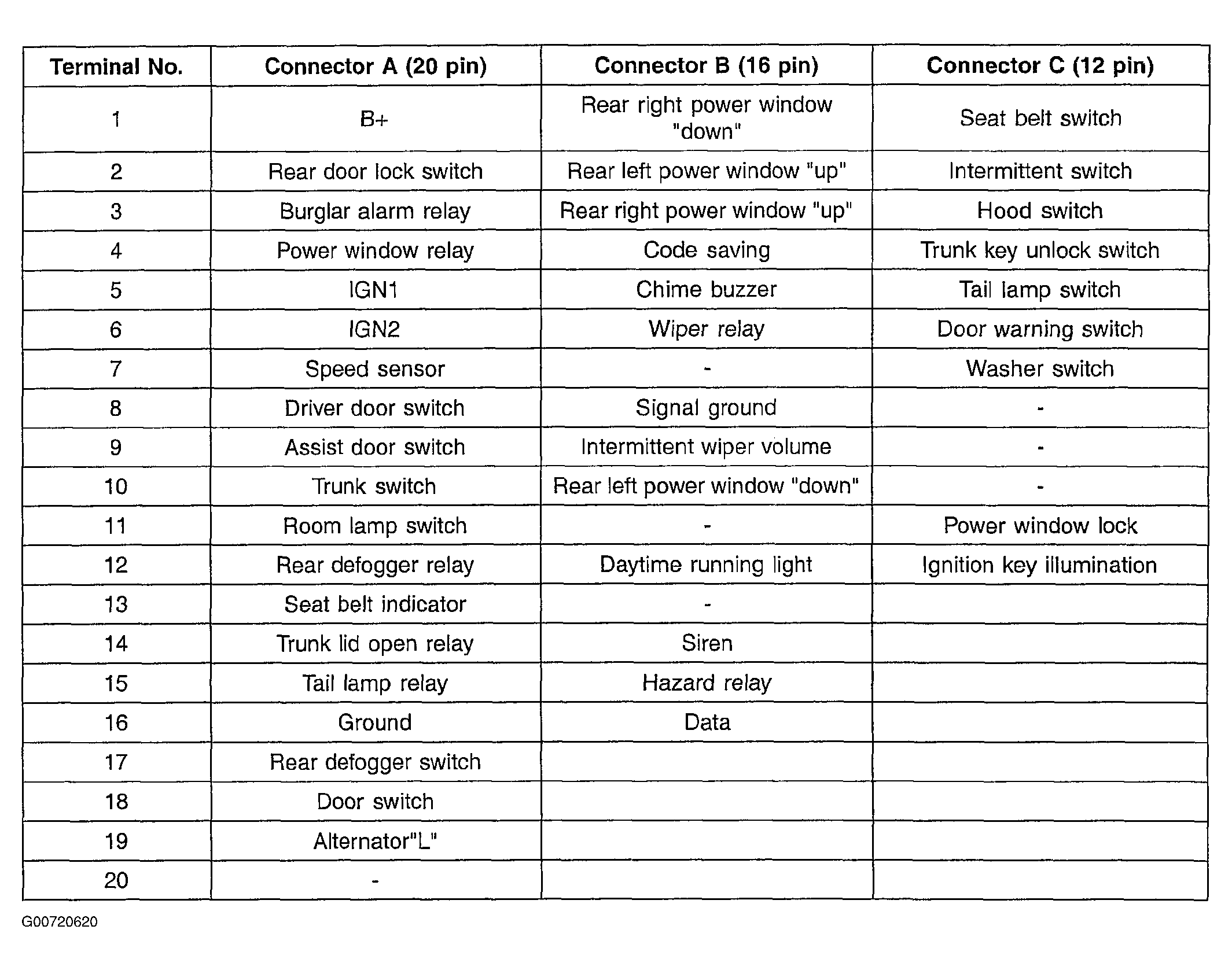

Fig 2: ETACS Connector Terminal Identification (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
