Circuit Diagram
Circuit Diagram

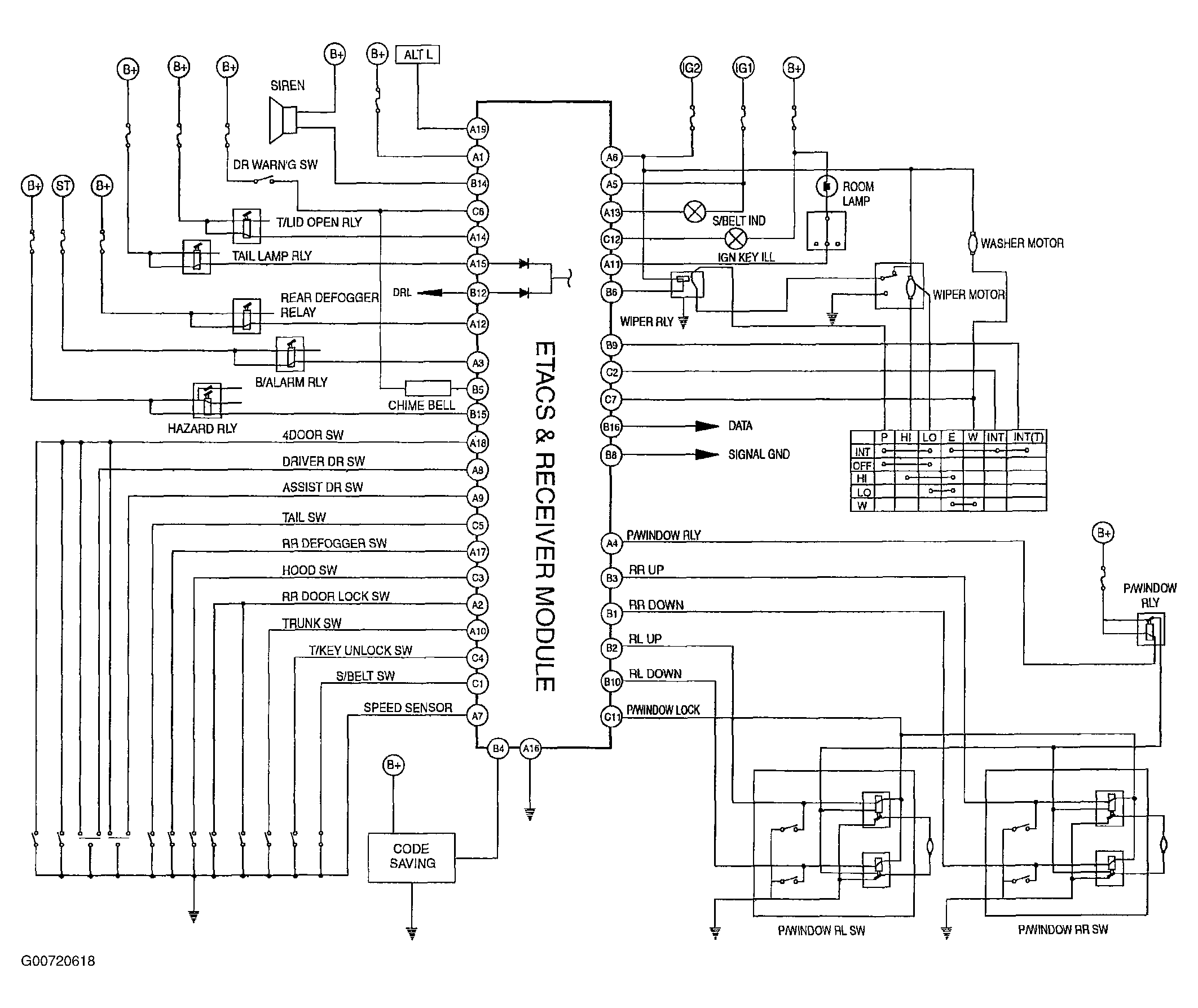

Fig 1: ETACS Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
