Rear Suspension System
>>
Components
Rear Suspension System: Components

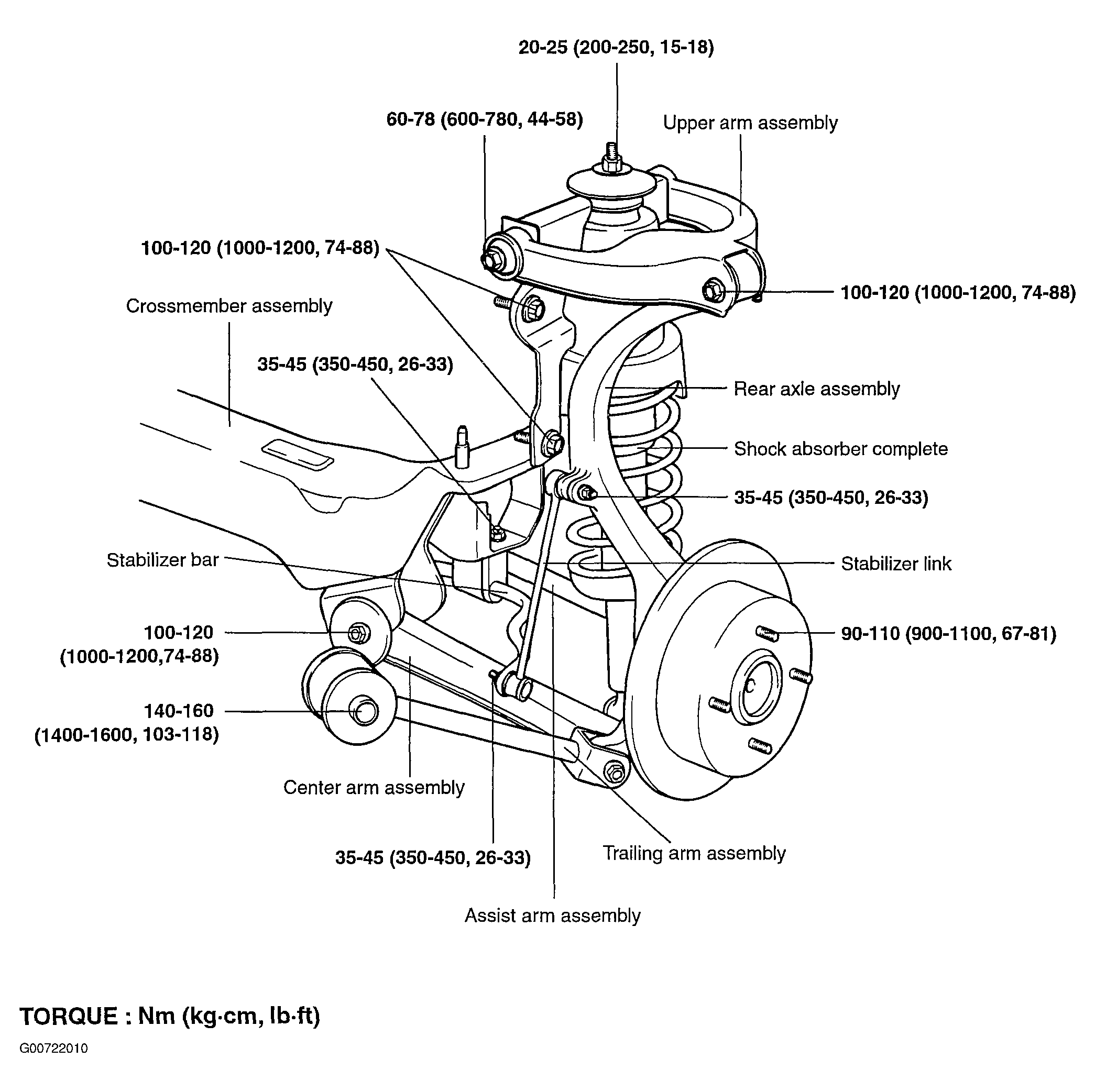

Fig 1: Identifying Rear Suspension Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
