Engine Compartment Junction Box Connector End Views

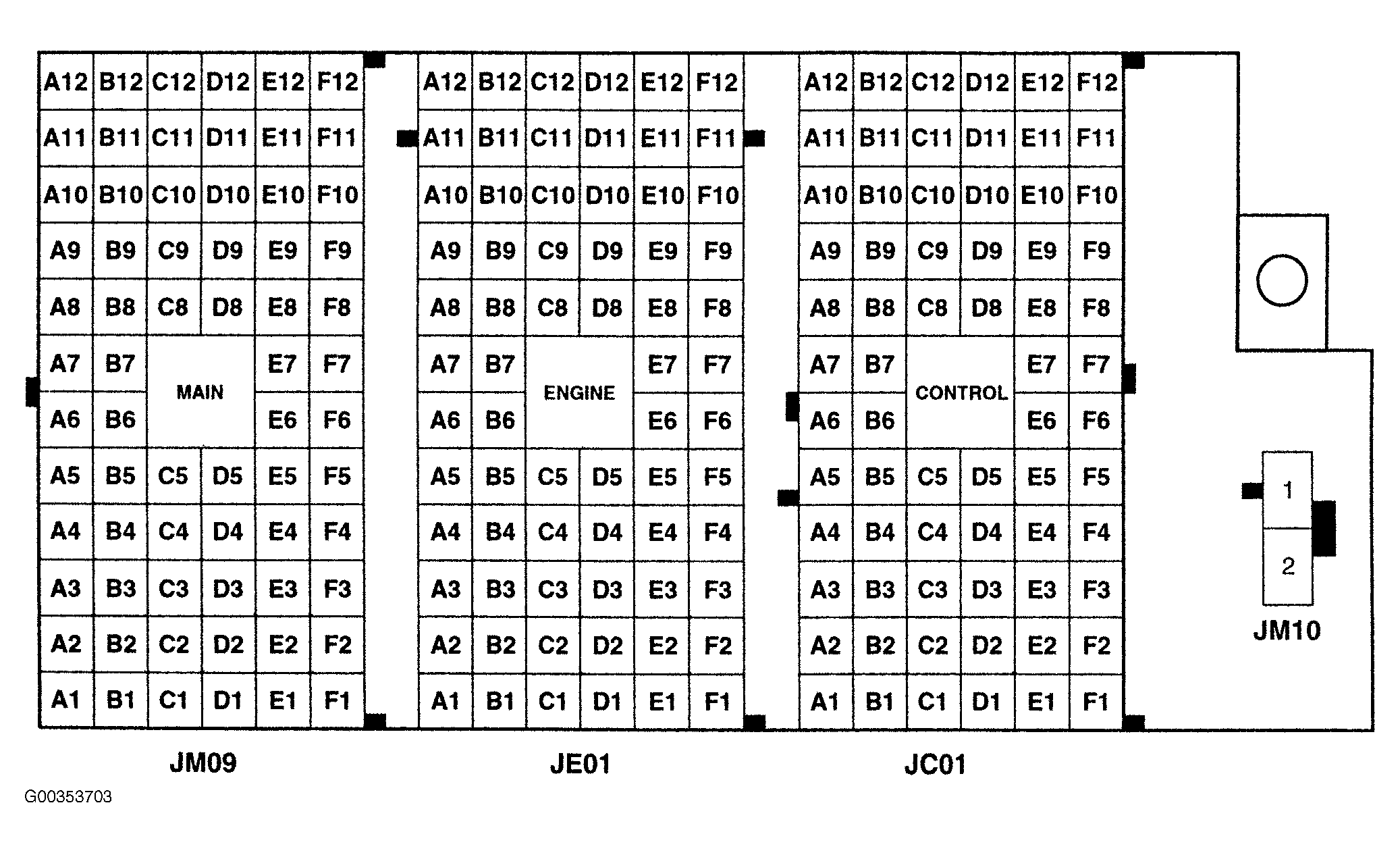

Fig 1: Engine Compartment Junction Box Connector End Views

G00353703

Courtesy of HYUNDAI MOTOR AMERICA
