Rear Wheel Speed Sensor

  1. Remove the rear seat cushion.
  2. Remove the rear pillar trim assembly.
    Fig 1: Identifying Rear Pillar Trim Assembly
    G01355176Courtesy of HYUNDAI MOTOR CO.
  3. Remove the tire assembly.
  4. Remove the rear wheel speed sensor after disconnecting the wheel speed sensor connector.

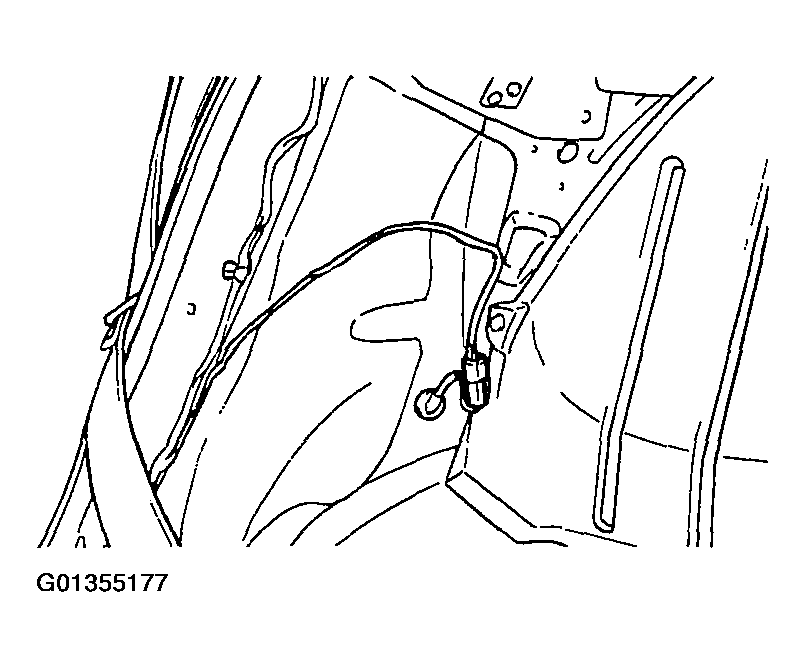

Fig 2: Identifying Rear Wheel Speed Sensor Connector
G01355177Courtesy of HYUNDAI MOTOR CO.
