Notes With Regard To Diagnosis

The phenomena listed in the following table are not abnormal.

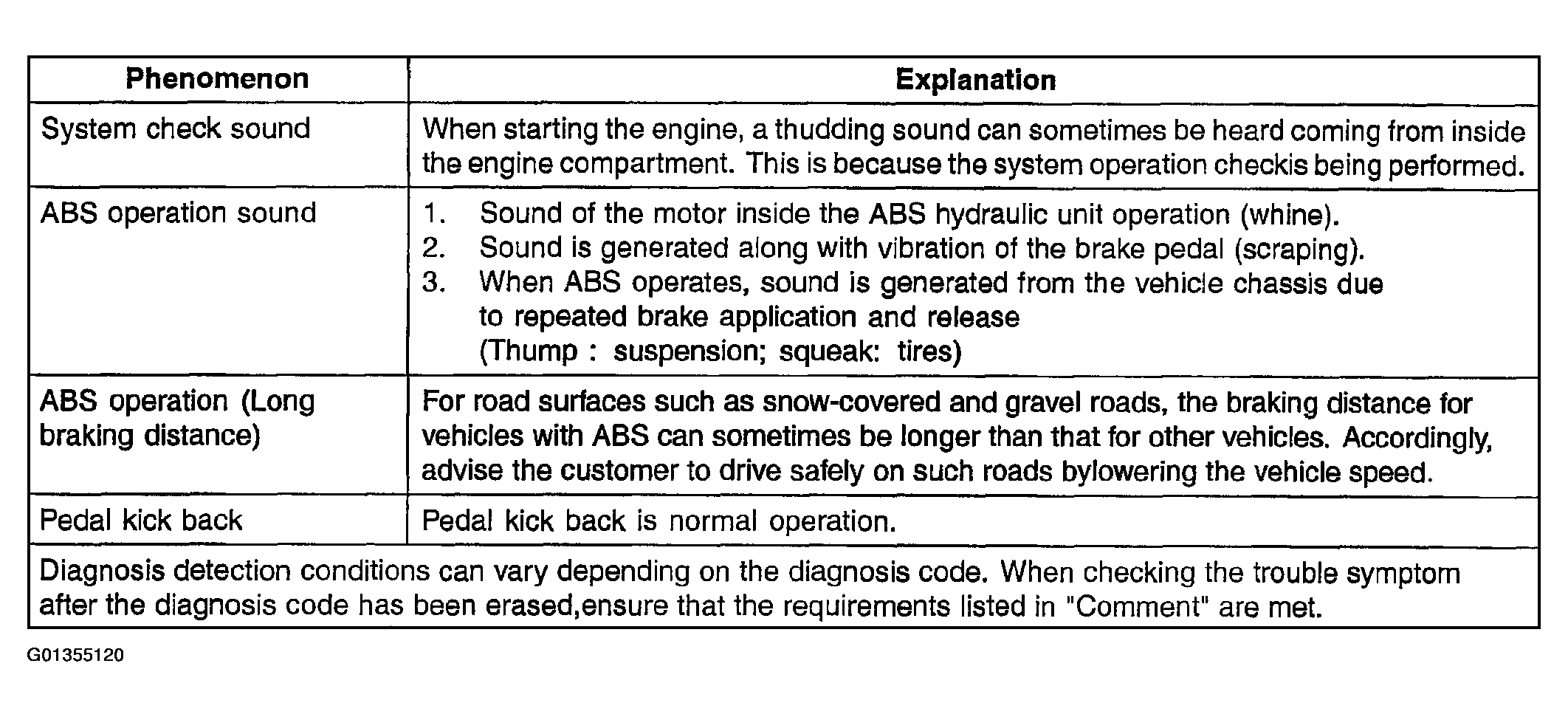

Fig 1: Phenomenon & Explanation Table

G01355120

Courtesy of HYUNDAI MOTOR CO.
