Inspection Chart For Diagnostic Trouble Codes

Inspect according to the inspection chart that is appropriate for the malfunction code.

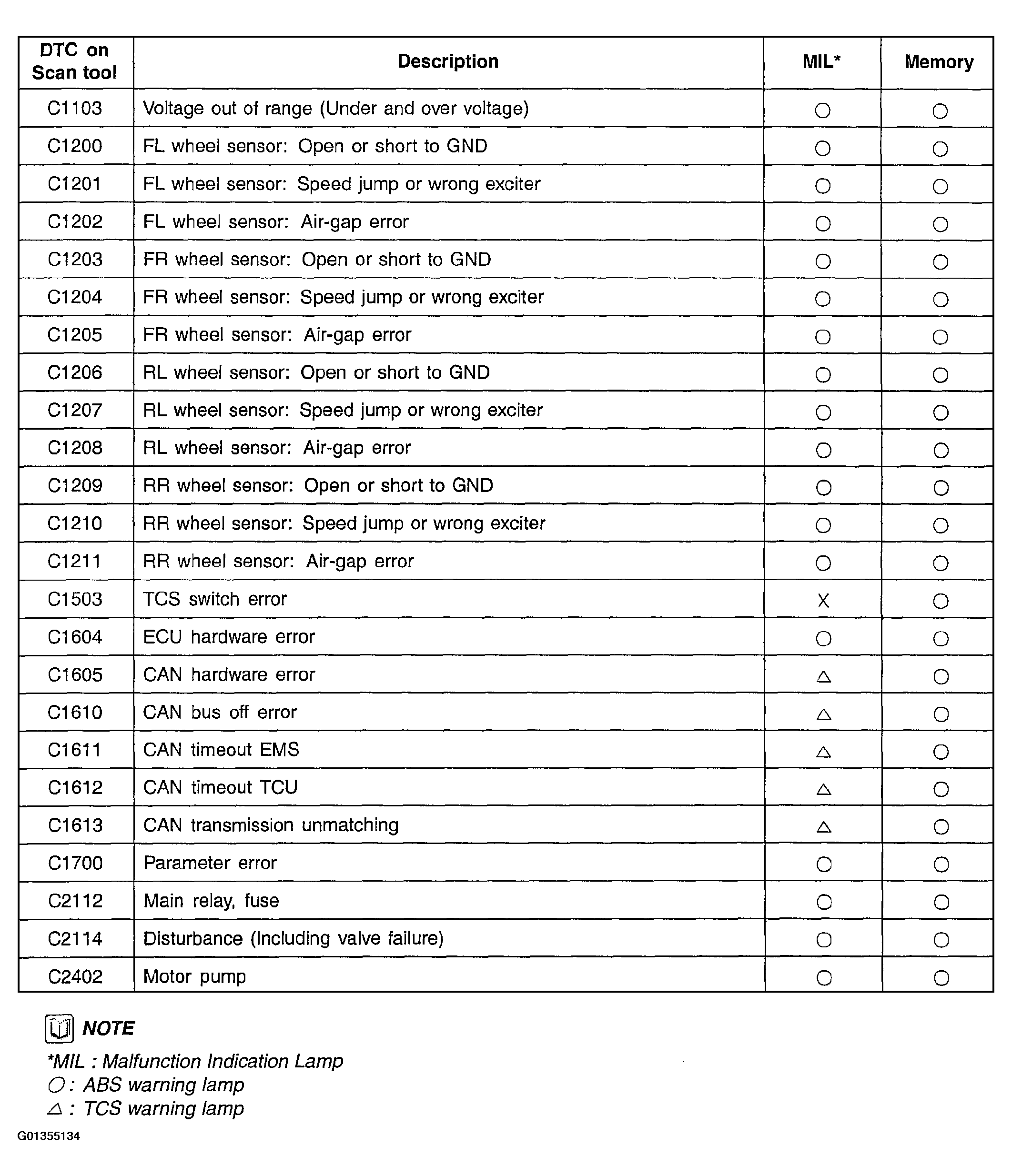

Fig 1: Diagnostic Trouble Code Description Table
G01355134Courtesy of HYUNDAI MOTOR CO.
