Hi-Scan (Pro) Check

  1. Turn the ignition OFF.
  2. Connect the Hi-Scan (Pro) to the Data Link Connector located underneath the lower crash pad panel.
  3. Turn the ignition ON.
  4. Use the Hi-Scan (Pro) to check for diagnostic trouble codes.
  5. After completion of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-Scan (Pro).
  6. Disconnect the Hi-Scan (Pro).

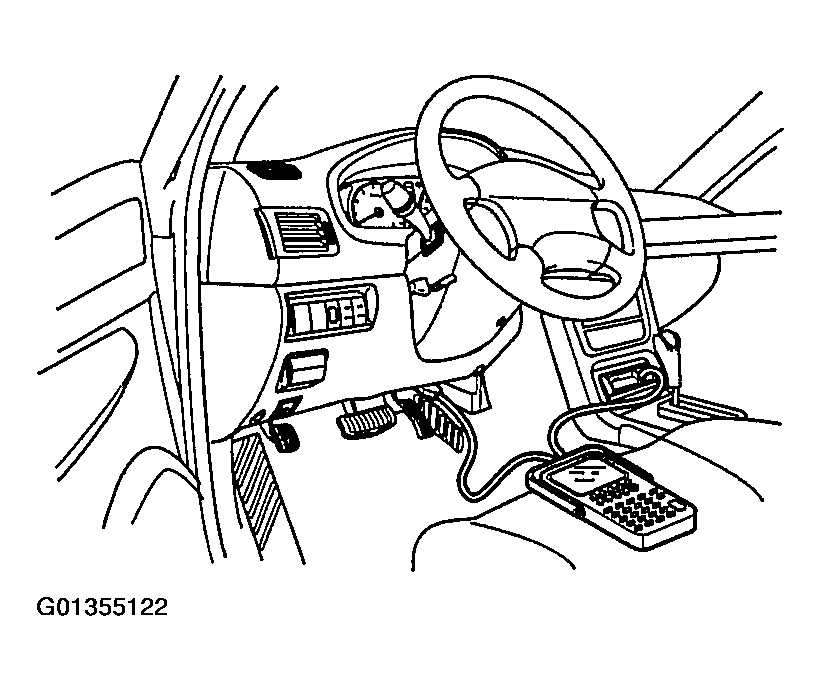

Fig 1: Connecting Hi-Scan (Pro) To Data Link Connector
G01355122Courtesy of HYUNDAI MOTOR CO.
Fig 2: Identifying Data Link Connector Terminals
G01355123Courtesy of HYUNDAI MOTOR CO.
