Actuator Driving: Abs

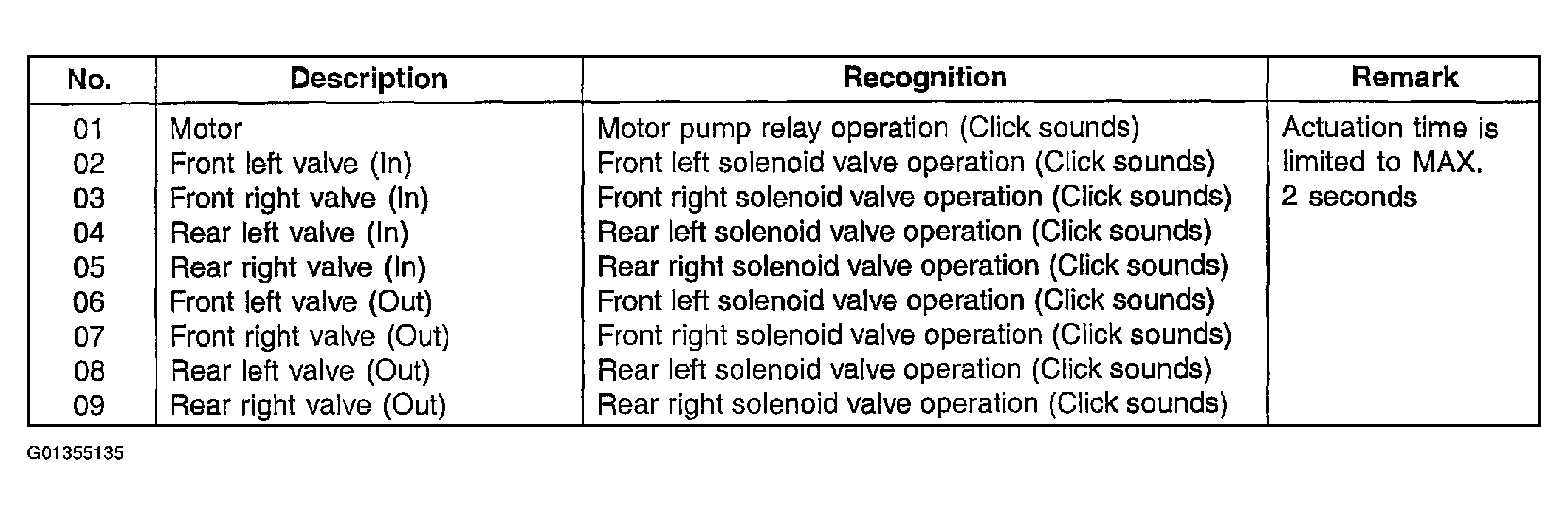

Fig 1: ABS Actuator Recognition Table

G01355135

Courtesy of HYUNDAI MOTOR CO.
